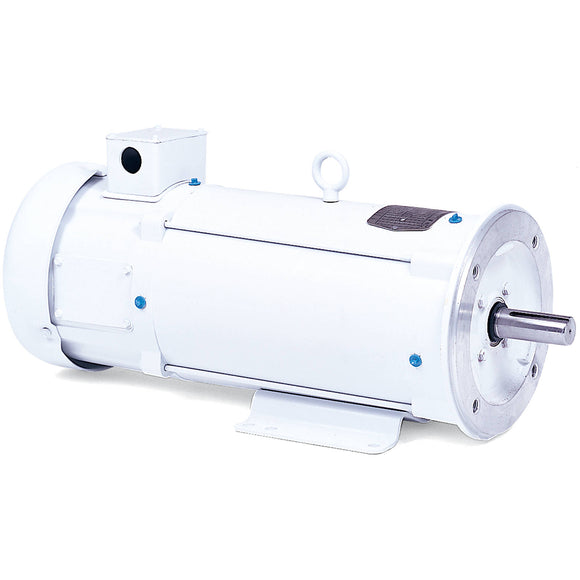

CDPWD3445 Baldor 1HP Washdown Permanent Magnet DC Electric Motor, 1750RPM

$1,799.97 USD

Shipping calculated at checkout

Baldor Electric Company SKU: CDPWD3445 Barcode: 781568133866

30 Day
Return Policy

Ships Fast
in 24 hours

TEFC, 56C Frame, 90VDC, 3435P, Rolled Steel, Rigid Base, C-Face, 5/8" Keyed Shaft

Description Product Specs Manufacturer

Specifications

Specs

Armature Voltage90 V
Base Speed1750 rpm
EnclosureTEFC
Frame56C
Frame MaterialSteel
Output Power1.000 HP
XP Class and GroupNone
Agency ApprovalsCE
CSA
UR
WEEE
Ambient Temperature40 °C
Armature Current10.0 a
Armature Inertia13.657 lb-ft2
Base IndicatorRigid
Bearing Grease TypePolyrex EM (-20F +300F)
Drip CoverNo Drip Cover
Duty RatingCONT
Feedback DeviceNO FEEDBACK
Heater IndicatorNo Heater
Insulation ClassF
Lifting LugsNo Lifting Lugs
Motor Lead ExitKo Box
Motor Lead TerminationFlying Leads
Motor Lead Quantity/Wire Size2 @ 14 AWG, A
Mounting ArrangementF1
Overall Length15.46 IN
Product FamilyWash Down
Pulley End Bearing TypeSealed Bearing
RoHS StatusROHS COMPLIANT
Service Factor1.00
Shaft Diameter0.625 IN
Shaft Extension LocationPulley End
Shaft Ground IndicatorNo Shaft Grounding
Shaft RotationReversible
Shaft Slinger IndicatorShaft Slinger
Motor StandardsNEMA
XP DivisionNot Applicable

Applications

  • Food processing conveyors
  • Feeders

Features

  • Moisture sealant on bolt heads between frame and endplates
  • Neoprene gasketed conduit box
  • Double sealed bearings
  • Forsheda® running contact V-Ring slinger
  • Stainless steel shaft
  • Class F Insulation
  • Tachometer adaptable
  • Suitable for high pressure washdown

Nameplate

Nameplate

CAT.NO. CDPWD3445
SPEC. 34-6418-3675
HP 1 ENCL TEFC
RPM 1750 1/MIN
FRAME 56C TYPE 3435P
ARM V 90 ARM A 10
FLD V FLD A
INSUL F AMB. 40
DUTY S1 CONT SUPPLY 1.5
BRG/DE 6203 BRG/ODE 6203
BRUSHES 2/BP5000BK08
BLANK IP55
SER.
BLANK KW.74 KG20 IC411
APRV-CSA Y APRV-UL Y APRV-CE Y
NP1509
  • 90VDC
  • Electric Motor
  • 56C
  • TEFC
  • DC
  • 1HP
  • 1750RPM
