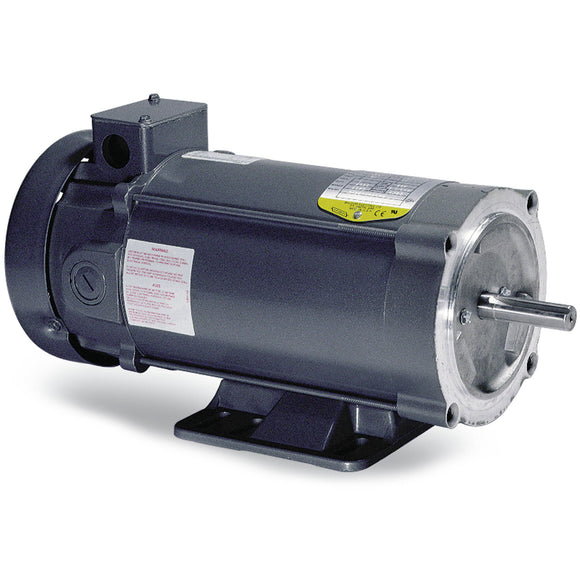

Specifications
Specs
Armature Voltage90 V
Base Speed1750 rpm
EnclosureTENV
Frame56C
Frame MaterialSteel
Output Power0.500 HP
Agency ApprovalsCE
CSA
UR
WEEE
CSA
UR
WEEE
Ambient Temperature40 °C
Armature Current4.8 a
Armature Inertia14.047 lb-ft2
Base IndicatorRigid
Bearing Grease TypePolyrex EM (-20F +300F)
Drip CoverNo Drip Cover
Duty RatingCONT
Feedback DeviceNO FEEDBACK
Heater IndicatorNo Heater
Insulation ClassF
Lifting LugsNo Lifting Lugs
Motor Lead ExitKo Box
Motor Lead TerminationFlying Leads
Motor Lead Quantity/Wire Size2 @ 18 AWG, A
Mounting ArrangementF1
Overall Length14.94 IN
Product FamilyGeneral Purpose
Pulley End Bearing TypeSealed Bearing
RoHS StatusROHS COMPLIANT
Service Factor1.00
Shaft Diameter0.625 IN
Shaft Extension LocationPulley End
Shaft Ground IndicatorNo Shaft Grounding
Shaft RotationReversible
Shaft Slinger IndicatorNo Slinger
Motor StandardsNEMA
Applications
- Conveyors
- Mixers
- Packaging machinery
Features
- NEMA C-face with removable base
- Tachometer adaptable
- Class F insulation
- Double sealed bearings
- 20:1 constant torque speed range
- UL and CSA recognized
Nameplate
Nameplate
| CAT.NO. | CDP3330 | |||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SPEC. | 33-2024Z122 | |||||||||||||||||||||||||||||
| HP | .5/.37KW | ENCL | TENV | |||||||||||||||||||||||||||
| RPM | 1750 1/MIN | |||||||||||||||||||||||||||||
| FRAME | 56C | TYPE | 3336P | |||||||||||||||||||||||||||
| ARM V | 90 | ARM A | 4.8 | |||||||||||||||||||||||||||
| FLD V | FLD A | |||||||||||||||||||||||||||||
| INSUL | F | AMB. | 40 | |||||||||||||||||||||||||||
| DUTY | S1 CONT | SUPPLY | 1.3 | |||||||||||||||||||||||||||
| BRG/DE | 6203 | BRG/ODE | 6203 | |||||||||||||||||||||||||||
| BRUSHES | 2/BP5011T01 | |||||||||||||||||||||||||||||
| BLANK | ||||||||||||||||||||||||||||||
| SER. | ||||||||||||||||||||||||||||||
| BLANK | IP44 IC410 14KG | |||||||||||||||||||||||||||||
| APRV-CE | Y | APRV-CSA | Y | APRV-UL | Y | |||||||||||||||||||||||||
| NP0891L | ||||||||||||||||||||||||||||||
Performance
Performance
Performance at 90 Arm V, 0.5 HP
Typical performance; not guaranteed values.General Characteristics
Armature Resistance1.163 ohms
Series Winding Resistance
Armature Inductance14.506 mH
Maximum Rated RPM With Field Weakening
Commutating Winding Resistance
Shunt Winding Resistance
Armature Inertia14.05 LI²
Maximum Allowable Inrush Amps
Load Characteristics
| Load Point | 1 | 2 | 3 | 4 | 5 | 6 | 7 |
|---|---|---|---|---|---|---|---|
| Armature Amps | 0.26 | 1.45 | 2.56 | 3.62 | 4.65 | 5.79 | 7 |
| RPM | 1853 | 1777 | 1721 | 1658 | 1629 | 1579 | 1519 |
| Torque | 0 | 0.38 | 0.76 | 1.14 | 1.5 | 1.9 | 2.28 |
