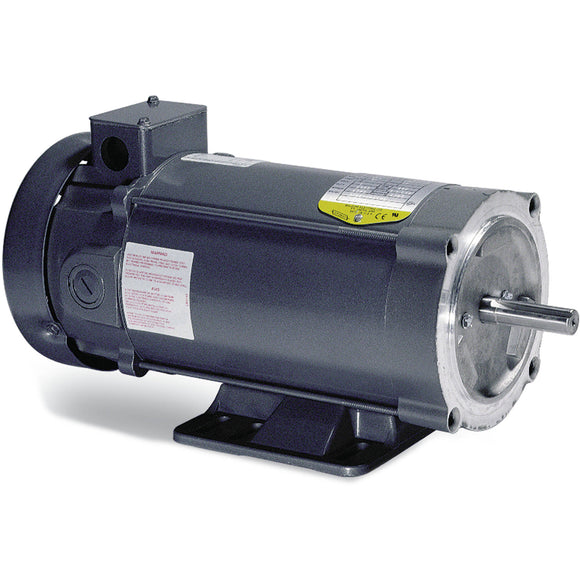

CD3433 Baldor 1/3HP Shunt Wound DC Electric Motor, 1750RPM

$889.97 USD

Shipping calculated at checkout

Baldor Electric Company SKU: CD3433 Barcode: 781568124680

30 Day
Return Policy

Ships Fast
in 24 hours

TEFC, 56C Frame, 90VDC Armature, 50/100VDC Field, 3413D, C-Face, Foot Mount

Description Product Specs Manufacturer

Specifications

Specs

Armature Voltage90 V
Base Speed1,750 rpm
Field Voltage50 V
100 V
Frame56C
Frame MaterialSteel
Output Power0.33 hp
XP Class and GroupNONE
BrandBaldor-Reliance
Agency ApprovalsCSA
UR
Ambient Temperature40 °C
Armature Current3.4 A
Armature Inertia3.042lb-ft2
Base IndicatorRigid
Bearing Grease TypePOLYREX EM (-20F +300F)
Drip CoverNo Drip Cover
Duty RatingCONT
Feedback DeviceNo feedback
Field Winding TypeSHUNT
Heater IndicatorNo heater
Insulation ClassF
Lifting LugsNo Lifting Lugs
Motor Lead ExitKO Box
Motor Lead Quantity/Wire Size4 @ 18 AWG
2 @ 14 AWG
Motor Lead TerminationFlying Leads
Motor StandardsNEMA
Overall Length13.34 in
Product FamilyGeneral Purpose
Pulley End Bearing TypeSealed Bearing
Service Factor1.00
Shaft Diameter0.625 in
Shaft Extension LocationPulley End
Shaft Ground IndicatorNo Shaft Grounding
Shaft RotationReversible
Shaft Slinger IndicatorNo Slinger
XP DivisionNot Applicable

Applications

  • Conveyors
  • Printing and textile equipment
  • Machine tools

Features

  • Designed for use with NEMA type K SCR control
  • 20:1 constant torque speed range
  • NEMA C-face and removable base
  • NEMA 182 frame and larger – normally closed thermostat on field winding
  • Class F insulation
  • 1.0 Service Factor

Nameplate

Nameplate

CAT.NO. CD3433
SPEC. 34-6172-1982
HP .33 ENCL TEFC
RPM 1750
FRAME 56C TYPE 3413D
ARM V 90 ARM A 3.4
FLD V 100/50 FLD A .4/.8
INSUL F AMB. 40
DUTY CONT SUPPLY 1.3
BRG/DE 6203 BRG/ODE 6203
BRUSHES 2/BP5000H03
BLANK
SER.
BLANK
APRV-CSA APRV-UL
NP0111L

Performance

Performance

Performance at 90 Arm V, 0.33 HP

Typical performance; not guaranteed values.

General Characteristics

Armature Resistance3.05 ohms
Series Winding Resistance
Armature Inductance
Maximum Rated RPM With Field Weakening
Commutating Winding Resistance
Shunt Winding Resistance260 ohms
Armature Inertia3.042 LI²
Maximum Allowable Inrush Amps

Load Characteristics

Load Point 1 2 3 4 5 6 7
Armature Amps 0.3 1 1.75 2.6 3.4 4.3 5.3
RPM 1940 1900 1862 1818 1786 1763 1735
Torque 0 0.258 0.494 0.752 0.988 1.246 1.482

Performance Curves

  • Electric Motor
  • 56C
  • TEFC
  • DC
  • 1/3HP
  • 1750RPM
