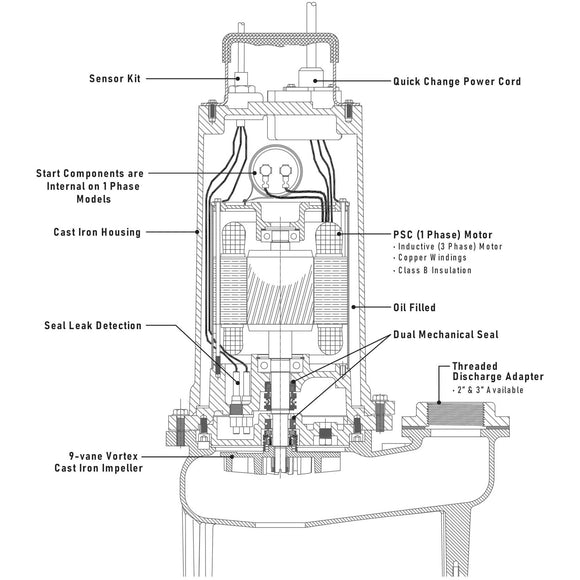

Features
- Heavy duty cast iron construction
- Oil-filled continuous duty rated PSC/Induction motor
- 9 Vane vortex cast iron impeller
- 2” solids handling
- 2” NPT Flanged Discharge
- Mechanical Carbon Ceramic Seal
- 20’ Cord
Specifications
| Brand | Ashland Pump |
|---|---|
| Model | SWHD150M3-20 |
| HP | 1.5HP |
| Voltage | 230VAC 60Hz 3 Phase |
| RPM | 3450 RPM |
| NEMA Start Code | P |
| Full Load Amps | 7.6 Amps |
| Cord Power Size | 16AWG/4C |
| Cord Type | SOW |
| Cord O.D. | 0.46" |
| Discharge Size | 2" NPT Flanged 3” NPT Optional |
| Impeller Type | 9-Vane Vortex Cast Iron |
| Cable Length | 20' |
| Solids Handling | 2" |
| Maximum Liquid Temperature | 104°F - Intermittent |
| Acceptable pH Range | 6 - 8 |
| Motor Housing | Cast Iron |
| Casing | Cast Iron |
| Impeller | Cast Iron |
| Motor Shaft | SS416 |
| Hardware | SST |
| O-Rings | NBR |
| Mechanical Seal | Dual Mechanical Carbon Ceramic |
| Upper Bearing | 6203 |
| Lower Bearing | 6203 |
| RPM | 3450 RPM |
| Motor Type | PSC (Single Phase) Induction (3 Phase) |
| Gen Insulation Class | B |
| Stator Winding Class | B |
| Maximum Stator Temperature | 130°C |
| Voltage Tolerance | +/-10% |
| Motor Protection | Thermally Protected |
| HP | 1.5 HP |
| Service Factor | 1.00 |
Dimensions
Performance Curve
Links
Ashland SWHD150 Electrical Data (PDF, 1 page, 126KB)
Ashland SWHD150 Features (PDF, 1 page, 231KB)
Ashland SWHD150 Performance Data (PDF, 1 page, 82KB)
Ashland SWHD150 Technical Data (PDF, 1 page, 135KB)
Ashland SWHD150 Catalog Sheet (PDF, 2 pages, 491KB)
Ashland SWHD150 Dimensional Data (PDF, 1 page, 203KB)
Ashland DWH50, SWH100, SWG150, SWH200, SWHD100, SWHD150 & SWHD200 Operation, Performance Specifications and Parts Manual (PDF, 51 pages, 2.73MB)
