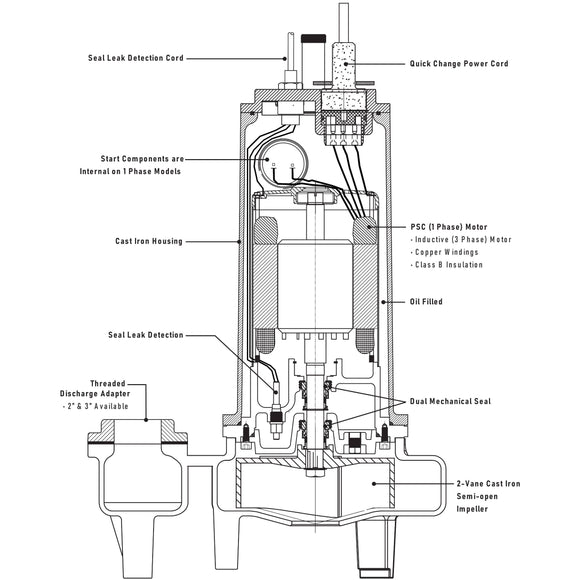

Features
- 3” Flanged Discharge
- Heavy duty cast iron Motor Housing and Volute
- 2-Vane, Semi-open Cast Iron Impeller
- Mechanical Carbon Ceramic Seal
- 2” Solids handling
Specifications

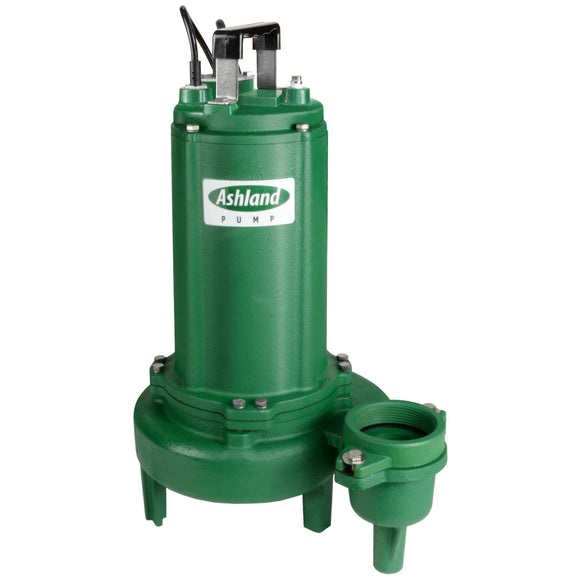

| Brand | Ashland Pump |
|---|---|
| Model | SWFD200M4-20 |
| Switch Type | Manual |
| Power | 2 HP |
| Voltage | 460VAC 60Hz 3 Phase |
| RPM | 1750 RPM |
| Full Load Amps | 5.5 Amps |
| NEMA Start Code | P |
| Cord Type | SOW |
| Cord Power Size | 14AWG/4C |
| Cord O.D. | 0.59" |
| Discharge Size | 2" Flanged with 2" & 3" NPT Adapters |
| Impeller Type | 2-Vane Semi-Open Cast Iron |
| Cable Length | 20' |
| Solids Handling | 2" |
| Maximum Liquid Temperature | 104°F - Intermittent |
| Acceptable pH Range | 6 - 8 |
| Motor Housing | Cast Iron |
| Casing | Cast Iron |
| Impeller | Cast Iron |
| Motor Shaft | SS416 |
| Hardware | SST |
| O-Rings | NBR |
| Mechanical Seal | Single Mechanical Carbon Ceramic |
| Upper Bearing | 6203 |
| Lower Bearing | 6203 |
| RPM | 1750 RPM |
| Motor Type | PSC/Induction |
| Gen Insulation Class | B |
| Stator Winding Class | B |
| Maximum Stator Temperature | 130°C |
| Voltage Tolerance | +/-10% |
| Motor Protection | Thermally Protected |
| HP | 2HP |
| Service Factor | 1.00 |
Dimensions
Performance Curve
Links
Ashland SWFD200 Electrical Data (PDF, 1 page, 124KB)
Ashland SWFD200 Features (PDF, 1 page, 186KB)
Ashland SWFD200 Performance Data (PDF, 1 page, 133KB)
Ashland SWFD200 Technical Data (PDF, 1 page, 131KB)
Ashland SWF100, SWF200, SWFD100 & SWFD200 Operation, Performance, Specifications and Parts Manual (PDF, 42 pages, 2.37MB)
Ashland SWFD200 Catalog Sheet (PDF, 2 pages, 538KB)
Ashland SWFD200 Dimensional Data (PDF, 1 page, 205KB)
