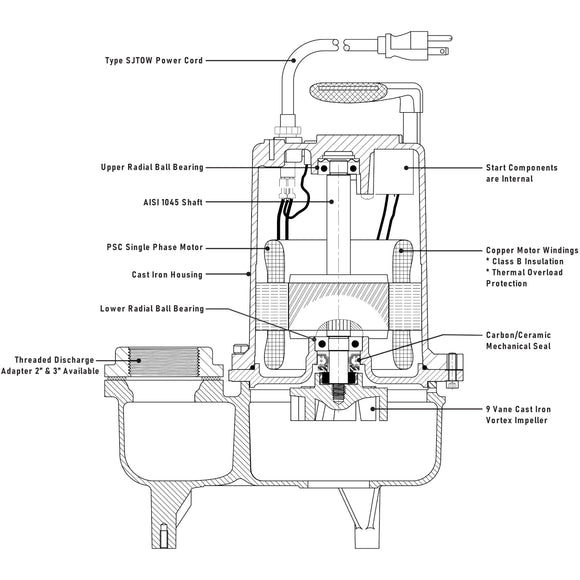

Features
- Heavy duty cast iron construction
- Oil-filled continuous duty rated PSC motor
- Vortex cast iron impeller
- Upper and lower ball bearing design
- 2” solids handling
Specifications
| Brand | Ashland Pump |
|---|---|
| Model | SW75M2-20 |
| Switch Type | Manual |
| HP | 3/4HP |
| Voltage | 230VAC 60Hz Single Phase |
| RPM | 3450 RPM |
| NEMA Start Code | P |
| Full Load Amps | 10.0 Amps |
| Cord Power Size | 16AWG/3C |
| Cord Type | SJTOW |
| Cord O.D. | 0.325-0.360" |
| Discharge Size | 2" NPT 3" NPT Optional |
| Impeller Type | 9-Vane Vortex - Cast Iron |
| Cable Length | 20' |
| Solids Handling | 2" |
| Maximum Liquid Temperature | 104°F - Intermittent |
| Acceptable pH Range | 6 - 8 |
| Motor Housing | Cast Iron |
| Casing | Cast Iron |
| Impeller | Cast Iron |
| Motor Shaft | AISI 1045 |
| Hardware | SST |
| O-Rings | NBR |
| Mechanical Seal | Single Mechanical Carbon Ceramic |
| Upper Bearing | 6202 |
| Lower Bearing | 6203 |
| Maximum Stator Temperature | 130°C |
| RPM | 3450 RPM |
| Motor Type | PSC |
| Gen Insulation Class | B |
| Stator Winding Class | B |
| Maximum Stator Temperature | 130°C |
| Voltage Tolerance | +/-10% |
| Motor Protection | Thermally Protected |
| HP | 3/4HP |
| Service Factor | 1.00 |
Dimensions
Performance Curve
Links
Ashland SW75 Electrical Data (PDF, 1 page, 45KB)
Ashland SW75 Features (PDF, 1 page, 247KB)
Ashland SW75 Performance Data (PDF, 1 page, 49KB)
Ashland SW75 Technical Data (PDF, 1 page, 46KB)
Ashland SW40, SW50 & SW75 Operation, Performance, Specifications and Parts Manual (PDF, 33 pages, 4.74MB)
Ashland SW75 Catalog Sheet (PDF, 2 pages, 826KB)
Ashland SW75 Dimensional Data (PDF, 1 page, 208KB)
