Features

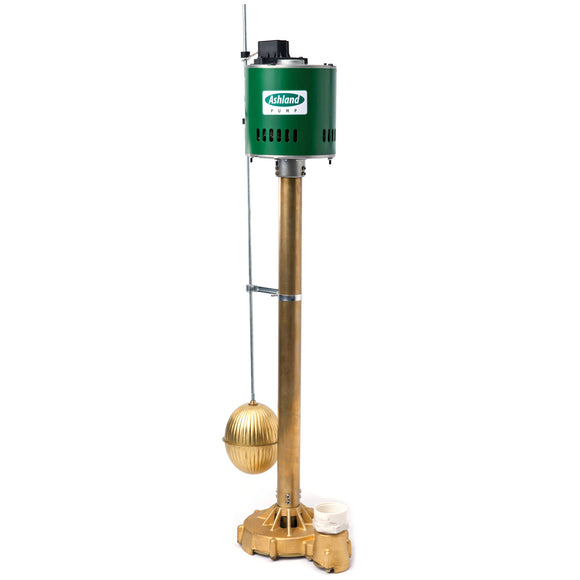

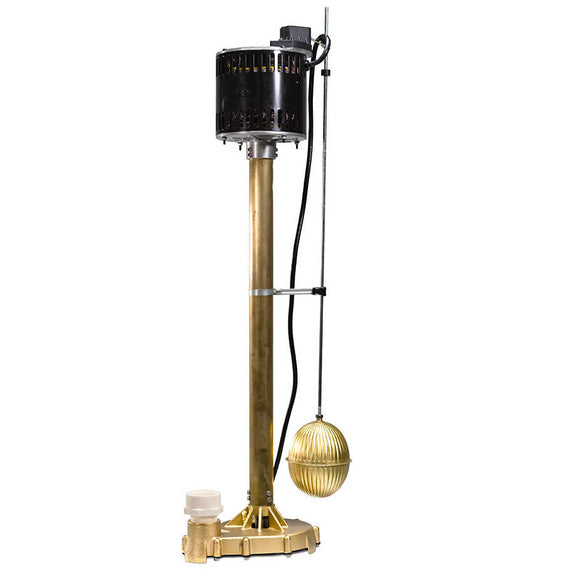

- Column style sump pump for sumps with a minimum 11" in diameter and maximum 24" deep

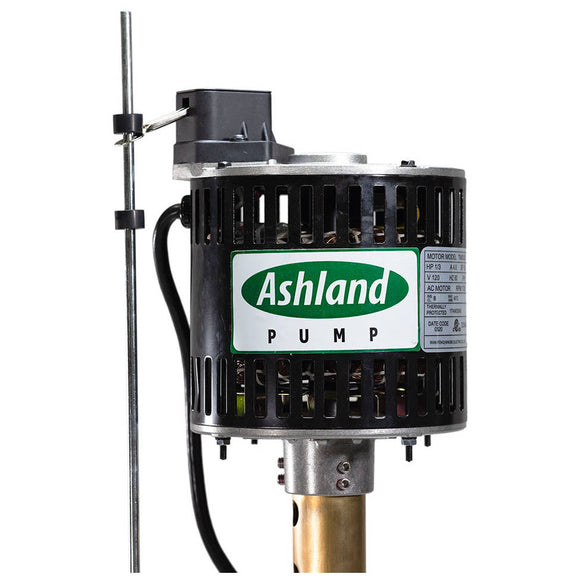

- Continuous duty rated PSC motor; higher efficiency
- Top mounted adjustable vertical switch
Specifications
| Brand | Ashland Pump |
|---|---|
| Model | PED33B |
| Switch Type | Top Mounted Adjustable Vertical |
| Voltage | 115VAC 60Hz Single Phase |
| RPM | 1750 RPM |
| Full Load Amps | 4.0Amps |
| Discharge Size | 1-1/4” NPT 1-1/2” NPT Adapter |

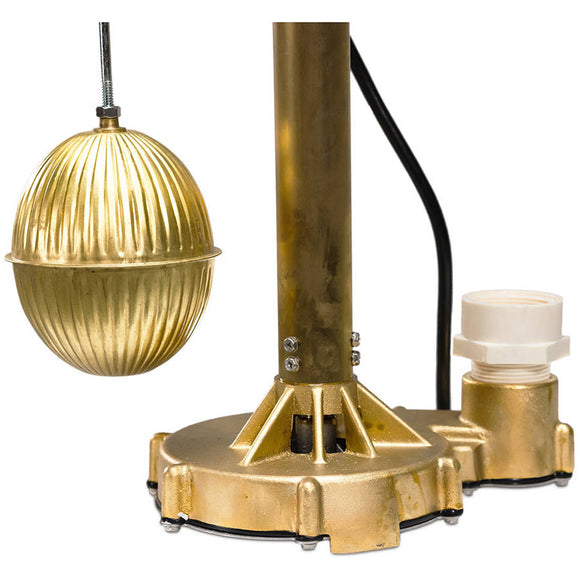

| Impeller Type | Vortex Stainless Steel |
| Cable Length | 8' |
| Solids Handling | 3/16" |
| Maximum Liquid Temperature | 104°F - Intermittent |
| Acceptable pH Range | 6 - 8 |
| Power Cord Size | SJT |
| Motor Housing | Steel |
| Casing | Bronze |
| Impeller | Stainless Steel |
| Motor Shaft | SST |
| Hardware | Steel |
| O-Rings | NBR |
| Seal | Lip |
| Upper Bearing | 6202 |
| Lower Bearing | 6202 |
| RPM | 1750 RPM |
| Motor Type | PSC (Single Phase) |
| Gen Insulation Class | B |
| Stator Winding Class | B |
| Maximum Stator Temperature | 130°C |
| Voltage Tolerance | +/-10% |
| Motor Protection | Thermally Protected |
| HP | 1/3HP |
| Service Factor | 1.00 |
Dimensions
Performance Curve
Links
Ashland PED33B Electrical Data (PDF, 1 page, 81KB)
Ashland PED33B Features (PDF, 1 page, 533KB)
Ashland PED33B Performance Data (PDF, 1 page, 60KB)
Ashland PED33B Technical Data (PDF, 1 page, 87KB)
Ashland Pedestal Sump Pumps Operation, Performance and Specifications Manual (PDF, 8 pages, 800KB)
Ashland PED33B Dimensional Data (PDF, 1 page, 89KB)
