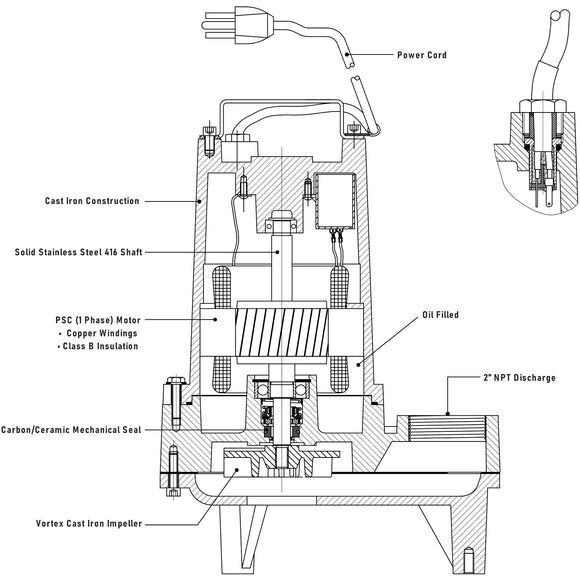

Features
- Heavy duty cast iron construction
- Oil-filled continuous duty rated PSC motor
- Recessed vortex cast iron impeller
- Upper and lower ball bearing design
- 3/4” solids handling
- 2” NPT discharge
Specifications
| Brand | Ashland Pump |
|---|---|
| Model | EP150M3-20 |
| Switch Type | Manual |
| HP | 1.5 HP |
| Voltage | 230VAC 60Hz 3 Phase |
| RPM | 3450 RPM |
| Full Load Amps | 7.4 Amps |
| NEMA Start Code | G |
| Cord Type | SOW |
| Cord Power Size | 16AWG/4C |
| Cord O.D. | 0.410-0.460" |
| Breaker Size | 10 Amps |
| Discharge Size | 2" NPT |
| Impeller Type | 2-Vane Cast Iron Closed |
| Cable Length | 20' |
| Maximum Liquid Temperature | 104°F Intermittent |
| Acceptable pH Range | 6 - 8 |
| Maximum Stator Temperature | 130°C |
| Sensor Cord Type | 16/3C |
| Motor Housing | Cast Iron |
| Casing | Cast Iron |
| Impeller | Cast Iron |
| Motor Shaft | Stainless Steel 430 |
| Hardware | SST |
| O-Rings | NBR |
| Mechanical Seal | Single Mechanical Carbon Ceramic |
| Upper Bearing | 6203 |
| Lower Bearing | 6203 |
Dimensions
Performance Curve
Links
Ashland EP150 Electrical Data (PDF, 1 page, 43KB)
Ashland EP150 Features Data (PDF, 1 page, 92KB)
Ashland EP150 Performance Data (PDF, 1 page, 49KB)
Ashland EP150 Technical Data (PDF, 1 page, 49KB)
Ashland EP50, EP75, EP100 & EP150 Operation, Performance, Specifications and Parts Manual (PDF, 39 pages, 2.42MB)
Ashland EP150 Catalog Sheet (PDF, 2 pages, 323KB)
Ashland EP150 Dimensional Data (PDF, 1 page, 188KB)
