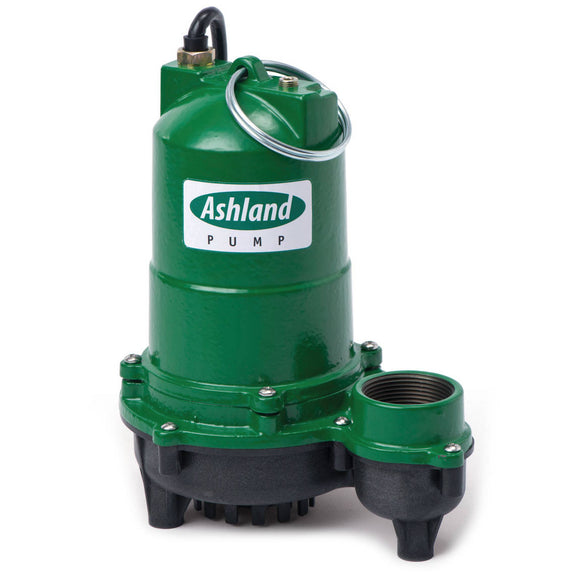

B50W1-10 Ashland 1/2HP Cast Iron Sump Pump, 115VAC Single Phase

$252.54 USD

Shipping calculated at checkout

Ashland Pump SKU: B50W1-10

30 Day
Return Policy

Ships Fast
in 24 hours

Wide Angle Float Switch, 1-1/2" NPT Discharge, 3450RPM

Description Product Specs Manufacturer

Features

  • Heavy duty cast iron construction
  • Strong PSC Continuous Duty Rated Motor
  • Recessed Vortex Impeller To Reduce Clogging
  • Piggyback Plug Standard
  • 1-1/2” Discharge

Specifications

Brand Ashland Pump
Model B50W1-10
HP 1/2HP
Switch Type Wide Angle Float
Leg Kit Not Included
Voltage 115VAC 60Hz Single Phase
RPM 3450 RPM
Full Load Amps 7.0 Amps
Cord Type SJTW 18/3C
Discharge Size 1-1/2" NPT
Impeller Type Vortex
Thermoplastic
Cable Length 10'
Solid Size Handling 1/2"
Maximum Liquid Temp 104°F - Intermittent
Motor Housing Cast Iron
Casing Thermoplastic
Impeller Thermoplastic
Motor Shaft Stainless Steel 430
Hardware SST
O-Rings NBR
Seal Single Mechanical
Carbon Ceramic
Upper Bearing 608-2RS
Lower Bearing 6202
Motor Type PSC
Insulation Class B
Maximum Stator Temperature 120°C
Voltage Tolerance +/-10%
Motor Protection Thermally Protected
Service Factor 1.00
Country of Origin USA
