Specifications

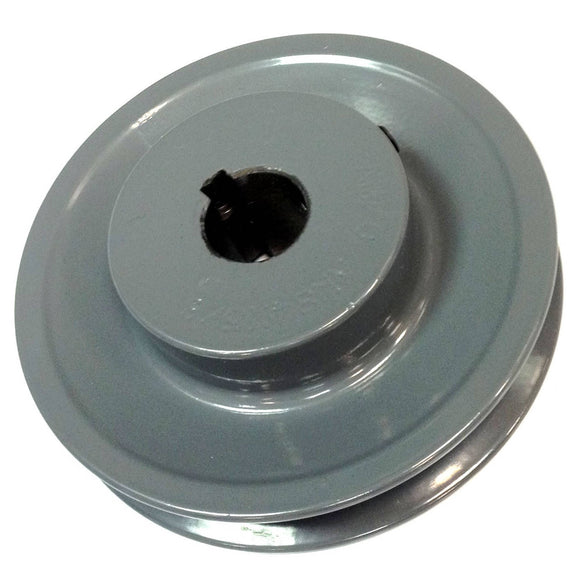

• Manufactured in high quality grey cast iron
• Finished bore with H7 precision
• Keyway and set screws in accordance with USAS. B. 17.1-1967
• Individually packaged
| Brand | NSPT Various |
|---|---|
| Part Number | AK228 AK2208 AK22x1/2 |
| Bore | 1/2" |
| Sheave Cross Section | AK |
| Outside Diameter | 2.20" |
| Pulley Diameter “A” | 2.00" |
| Pulley Diameter “3L” | 1.66" |

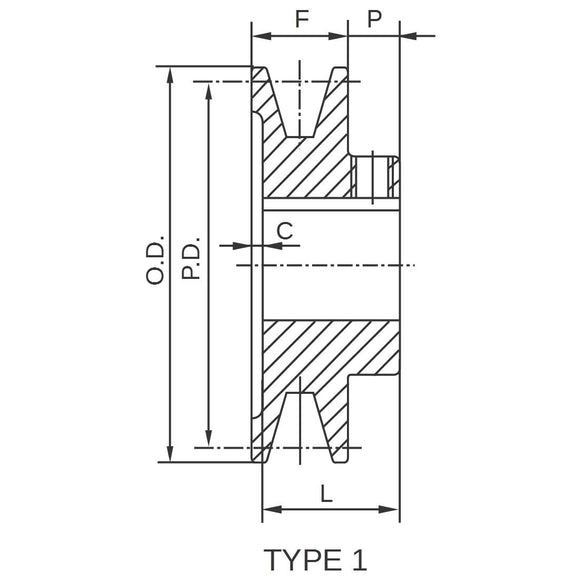

| Type | 1 |
| Pulley Width “F” | 21/32" |
| Dimension “L” | 15/16" |
| Dimension “P” | 7/16" |
| Recess Depth “C” | 5/32" |
| Approximate Weight | 0.5 lbs |

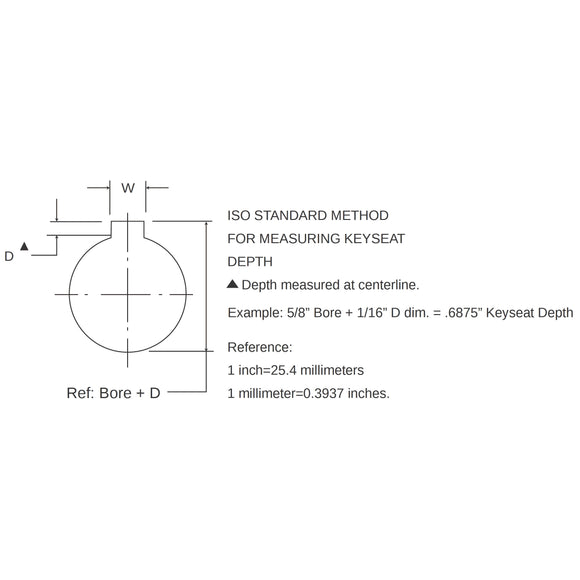

| Keyseat (WxD) | None |
| Set Screw(s) | Yes, 2 |
| Country of Origin | Various |
