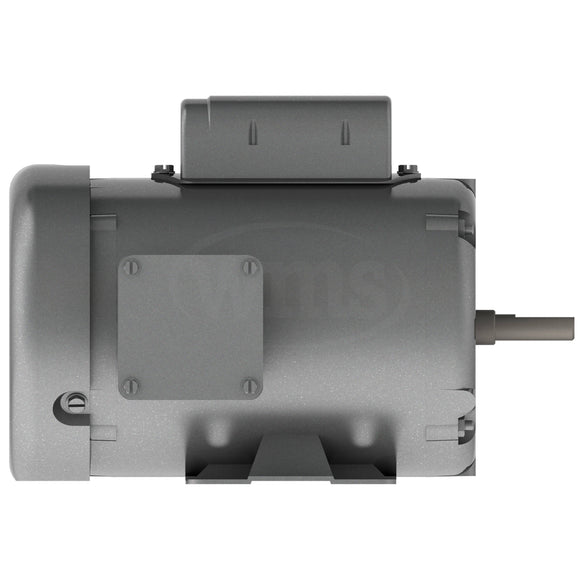

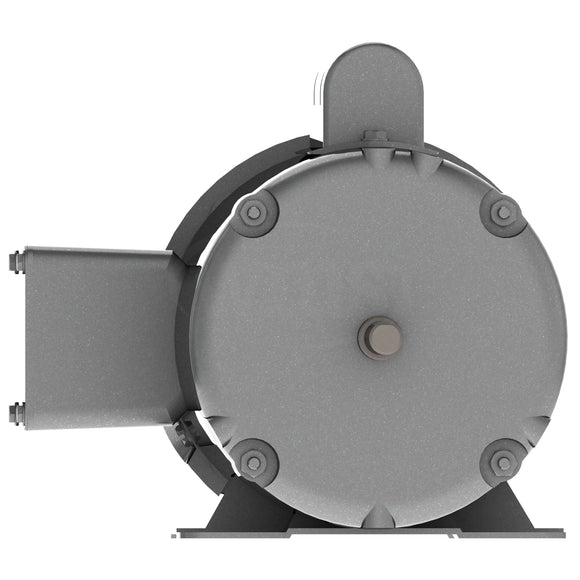

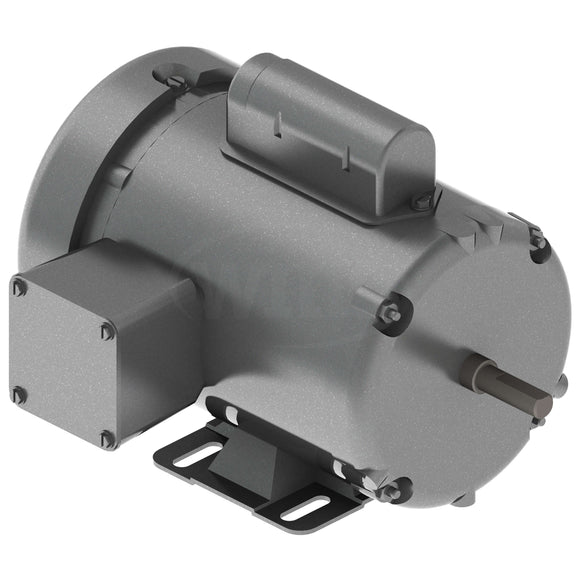

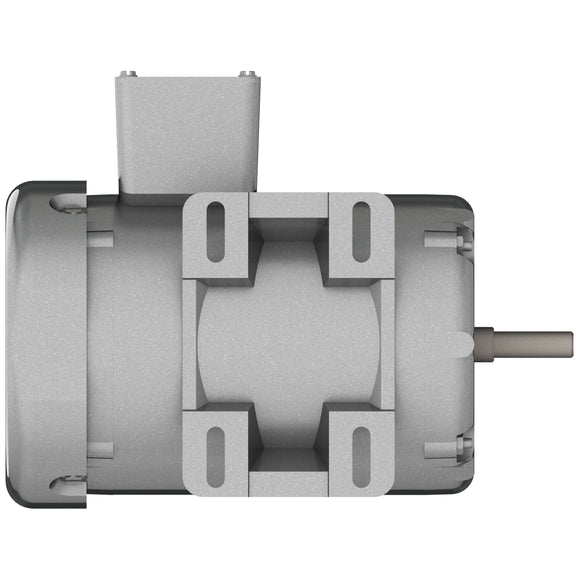

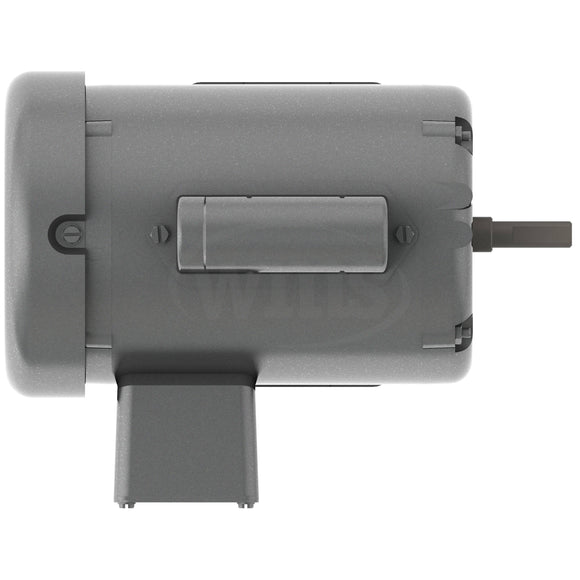

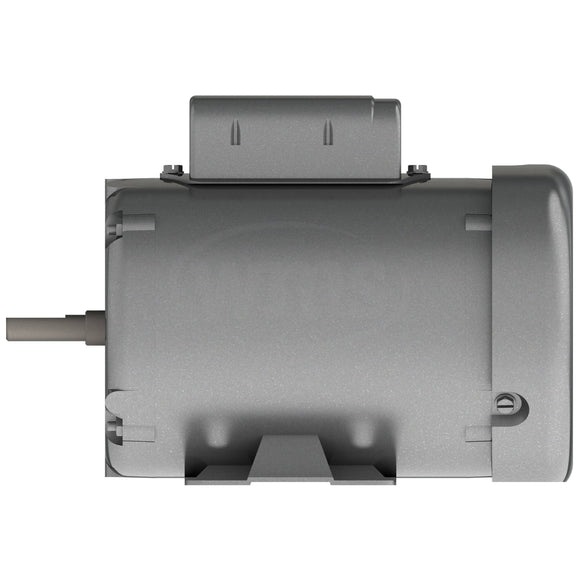

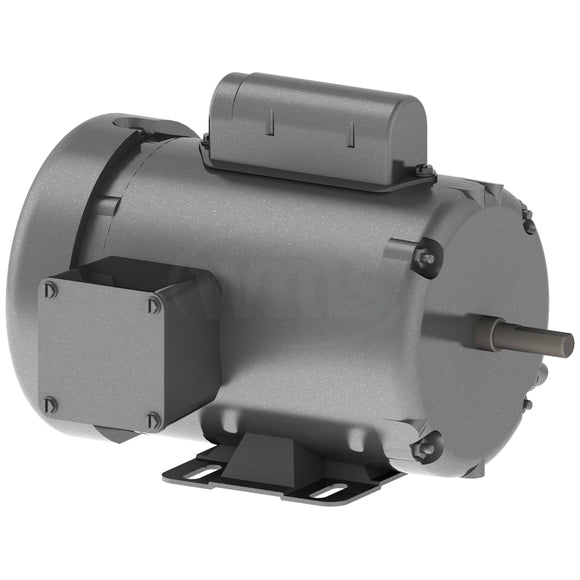

L3406 Baldor 1/3HP Electric Motor, 1800 RPM

$443.97 USD

Shipping calculated at checkout

Baldor Electric Company SKU: L3406 Barcode: 781568100141

30 Day
Return Policy

Ships Fast
in 24 hours

TEFC, IP44, 48 Frame, 115/208-230VAC 60Hz, Single Phase, Foot Mounted, Rolled Steel, 34C51-5507

Description Product Specs Manufacturer

Specifications

Specs

Output0.330 hp
Phase1
Synchronous Speed1,800 rpm
Frequency60.00 Hz
Voltage230 V
115 V
Frame MaterialSteel
Frame48
XP Class and GroupNONE
XP DivisionNot Applicable
BrandBaldor-Reliance
Agency ApprovalsCSA
UR
Ambient Temperature40 °C
Auxillary BoxNo Auxillary Box
Auxillary Box Lead TerminationNone
Base IndicatorRigid
Bearing Grease TypePOLYREX EM (-20F +300F)
BlowerNone
Current6.0 A @ 115 V
3.6 A @ 208 V
3.0 A @ 230 V
Design CodeN
Drip CoverNo Drip Cover
Duty RatingCONT
Efficiency @ 100% Load60.0%
Electrically Isolated BearingNot Electrically Isolated
Feedback DeviceNo feedback
Front Face CodeStandard
Front Shaft IndicatorNone
Heater IndicatorNo heater
High Voltage Full Load Amps3.0 A
Insulation ClassB
Inverter CodeNot inverter
KVA CodeL
Lifting LugsNo Lifting Lugs
Locked Bearing IndicatorNo Locked Bearing
Motor Lead ExitKO Box
Motor Lead Quantity/Wire Size6 @ 18 AWG
Motor Lead TerminationFlying Leads
Motor StandardsNEMA
Motor Type3414L
Number of Poles4
Overall Length10.72 in
Power Factor60
Product FamilyGeneral Purpose
Pulley End Bearing TypeBall
Pulley Face CodeStandard
Pulley Shaft IndicatorStandard
Rodent ScreenNone
Service Factor1.35
Shaft Diameter0.500 in
Shaft Extension LocationPulley End
Shaft Ground IndicatorNo Shaft Grounding
Shaft RotationReversible
Shaft Slinger IndicatorNo Slinger
Speed1,725 rpm
Speed CodeSingle Speed
Starting MethodDirect on line
Thermal Device - BearingNone
Thermal Device - WindingNone
Vibration Sensor IndicatorNo Vibration Sensor
Winding Thermal 1None
Winding Thermal 2None

Applications

  • Air Handling
  • Material Handling
  • Machine Tools
  • Conveyors
  • Pumps
  • Fans

Features

  • Low noise vibration dampening base
  • Dynamically balanced rotor to increase bearing life
  • Superior switch design provides optimized torque profiles
  • Robust heavy gauge steel design

Nameplate

Nameplate

CAT.NO. L3406
SPEC. 34C51-5507
HP .33
VOLTS 115/230
AMP 6/3
RPM 1725
FRAME 48 HZ 60 PH 1
SER.F. 1.35 CODE L DES N CLASS B
NEMA-NOM-EFF 60 PF 60
RATING 40C AMB-CONT
CC USABLE AT 208V 3.6
DE 6203 ODE 6203
ENCL TEFC SN
SFA 6.8/3.4
NP1256L

Performance

Performance

Performance at 230 V, 60 Hz, 0.33 hp

Typical performance; not guaranteed values.

General Characteristics

Full Load Torque0 LB-FT
No-Load Current0 A
Line-Line Res. @ 25° C6.32 Ohms A Ph / 4.93 Ohms B Ph
Temp. Rise @ Rated Load67° C
Temp. Rise @ S.F. Load83° C
Start ConfigurationDOL
Break-Down Torque2.95 LB-FT
Pull-Up Torque2.55 LB-FT
Locked-Rotor Torque3.6 LB-FT
Starting Current13 A

Load Characteristics

Rated Load 0% 25% 50% 75% 100% 125% 150% S.F.
Power Factor 22.0 31.0 41.0 52.0 60.0 67.0 73.0 71.0
Efficiency 0.0 33.0 41.0 52.0 60.0 61.5 61.5 61.5
Speed (RPM) 1,795 1,780 1,760 1,745 1,725 1,705 1,680 1,690
Line Amps 2.60 2.60 2.70 2.80 3.00 3.30 3.70 3.40

Performance Curves

Performance at 115 V, 60 Hz, 0.33 hp

Typical performance; not guaranteed values.

General Characteristics

Full Load Torque0 LB-FT
No-Load Current0 A
Line-Line Res. @ 25° C1.5 Ohms A Ph / 4.81 Ohms B Ph
Temp. Rise @ Rated Load68° C
Temp. Rise @ S.F. Load81° C
Start ConfigurationDOL
Break-Down Torque2.95 LB-FT
Pull-Up Torque2.55 LB-FT
Locked-Rotor Torque3.6 LB-FT
Starting Current26 A

Load Characteristics

Rated Load 0% 25% 50% 75% 100% 125% 150% S.F.
Power Factor 20.0 31.0 41.0 52.0 59.0 65.0 67.0 66.0
Efficiency 0.0 34.0 49.0 56.0 59.9 62.0 63.0 62.4
Speed (RPM) 1,795 1,783 1,765 1,745 1,730 1,710 1,680 1,698
Line Amps 5.20 5.20 5.40 5.60 6.00 6.60 7.40 6.92

Performance Curves
