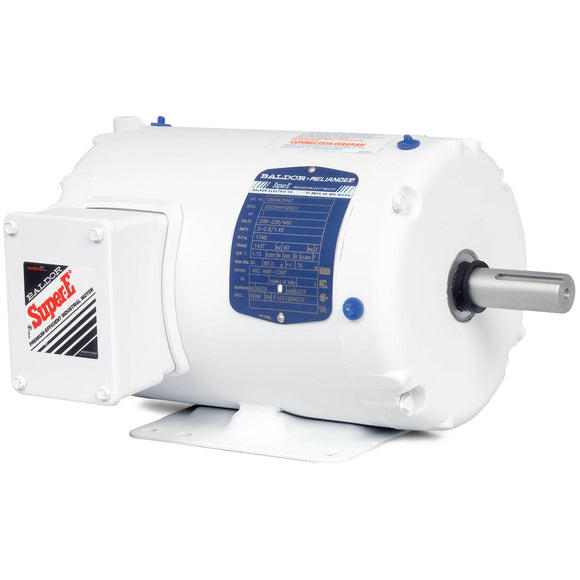

EWDM3554T Baldor 1.5HP Washdown Electric Motor, 1755RPM

$1,222.97 USD

Shipping calculated at checkout

Baldor Electric Company SKU: EWDM3554T Barcode: 781568478363

30 Day
Return Policy

Ships Fast
in 24 hours

TENV, 145T Frame, 230/460V 3-Phase 60Hz, 3524M

Description Product Specs Manufacturer

Specifications

Specs

Output1.500 hp
Phase3
Synchronous Speed1,800 rpm
Frequency60.00 Hz
Voltage230 V
460 V
Frame MaterialSteel
Frame145T
XP Class and GroupNONE
XP DivisionNot Applicable
BrandBaldor-Reliance
Agency ApprovalsCSA
CSA EEV
UR
Ambient Temperature40 °C
Auxillary BoxNo Auxillary Box
Auxillary Box Lead TerminationNone
Base IndicatorRigid
Bearing Grease TypePOLYREX EM (-20F +300F)
BlowerNone
Current4.4 A @ 208 V
4.2 A @ 230 V
2.1 A @ 460 V
Design CodeB
Drip CoverNo Drip Cover
Duty RatingCONT
Efficiency @ 100% Load86.5%
Electrically Isolated BearingNot Electrically Isolated
Feedback DeviceNo feedback
Front Face CodeStandard
Front Shaft IndicatorNone
Heater IndicatorNo heater
High Voltage Full Load Amps2.1 A
Insulation ClassF
Inverter CodeInverter ready
KVA CodeK
Lifting LugsNo Lifting Lugs
Locked Bearing IndicatorNo Locked Bearing
Motor Lead ExitKO Box
Motor Lead Quantity/Wire Size9 @ 18 AWG
Motor Lead TerminationFlying Leads
Motor StandardsNEMA
Motor Type3534M
Number of Poles4
Overall Length13.00 in
Power Factor76
Product FamilyWash Down
Pulley End Bearing TypeSealed Bearing
Pulley Face CodeStandard
Pulley Shaft IndicatorStandard
Rodent ScreenNone
RoHS StatusRoHS Compliant
Service Factor1.15
Shaft Diameter0.875 in
Shaft Extension LocationPulley End
Shaft Ground IndicatorNo Shaft Grounding
Shaft RotationReversible
Shaft Slinger IndicatorShaft Slinger
Speed1,755 rpm
Speed CodeSingle Speed
Starting MethodDirect on line
Thermal Device - BearingNone
Thermal Device - WindingNone
Vibration Sensor IndicatorNo Vibration Sensor
Winding Thermal 1None
Winding Thermal 2None

Applications

Features

Nameplate

Nameplate

CAT.NO. EWDM3554T
SPEC. 35SS584M613G1
HP 1.5
VOLTS 230/460
AMP 4.2/2.1
RPM 1755
FRAME 145T HZ 60 PH 3
SER.F. 1.15 CODE K DES B CLASS F
NEMA-NOM-EFF 86.5 PF 76
RATING 40C AMB-CONT
CC 010A USABLE AT 208V 4.4
DE 6205 ODE 6203
ENCL TENV SN
BLANK
NP1669L

Performance

Performance

Performance at 460 V, 60 Hz, 1.5 hp

Typical performance; not guaranteed values.

General Characteristics

Full Load Torque0 LB-FT
No-Load Current0 A
Line-Line Res. @ 25° C8.98 Ohms A Ph / 0 Ohms B Ph
Temp. Rise @ Rated Load88° C
Temp. Rise @ S.F. Load104° C
Start ConfigurationDOL
Break-Down Torque19.9 LB-FT
Pull-Up Torque10.98 LB-FT
Locked-Rotor Torque14.87 LB-FT
Starting Current19.8 A

Load Characteristics

Rated Load 0% 25% 50% 75% 100% 125% 150% S.F.
Power Factor 8.0 36.0 56.0 69.0 77.0 82.0 85.0 79.0
Efficiency 0.0 78.6 85.5 87.4 87.1 86.3 84.8 88.5
Speed (RPM) 1,799 1,794 1,784 1,772 1,760 1,747 1,733 1,757
Line Amps 1.18 1.28 1.48 1.76 2.10 2.50 2.94 2.30

Performance Curves

  • 230VAC
  • 460VAC
