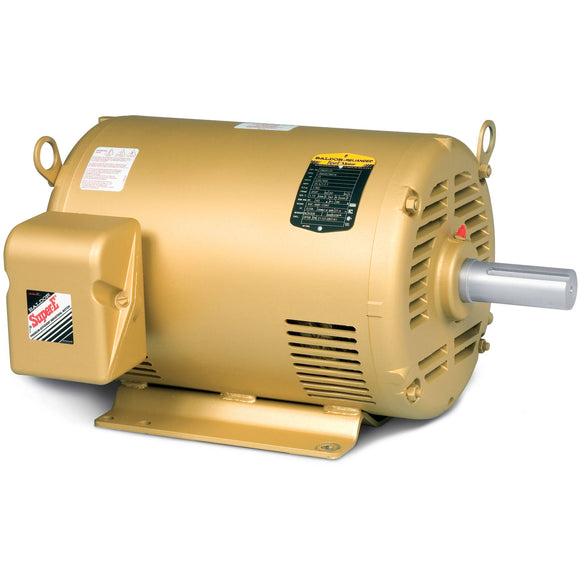

EM3154T Baldor 1.5HP Electric Motor, 1800RPM

$792.42 USD

Shipping calculated at checkout

Baldor Electric Company SKU: EM3154T Barcode: 781568104231

30 Day
Return Policy

Ships Fast
in 24 hours

ODP, 145T Frame, 230/460V 3-Phase 60Hz, 3522M, Foot Mounted

Description Product Specs Manufacturer

Specifications

Specs

Output1.500 hp
Phase3
Synchronous Speed1,800 rpm
Frequency60.00 Hz
Voltage460 V
230 V
Frame MaterialSteel
Frame145T
XP Class and GroupNONE
XP DivisionNot Applicable
BrandBaldor-Reliance
Agency ApprovalsCSA
CSA EEV
UR
Ambient Temperature40 °C
Auxillary BoxNo Auxillary Box
Auxillary Box Lead TerminationNone
Base IndicatorRigid
Bearing Grease TypePOLYREX EM (-20F +300F)
BlowerNone
Current4.5 A @ 208 V
4.4 A @ 230 V
2.2 A @ 460 V
Design CodeB
Drip CoverNo Drip Cover
Duty RatingCONT
Efficiency @ 100% Load86.5%
Electrically Isolated BearingNot Electrically Isolated
Feedback DeviceNo feedback
Front Face CodeStandard
Front Shaft IndicatorNone
Heater IndicatorNo heater
High Voltage Full Load Amps2.2 A
Insulation ClassF
Inverter CodeInverter ready
KVA CodeL
Lifting LugsNo Lifting Lugs
Locked Bearing IndicatorNo Locked Bearing
Motor Lead ExitKO Box
Motor Lead Quantity/Wire Size9 @ 18 AWG
Motor Lead TerminationFlying Leads
Motor StandardsNEMA
Motor Type3522M
Number of Poles4
Overall Length11.62 in
Power Factor72
Product FamilyGeneral Purpose
Pulley End Bearing TypeBall
Pulley Face CodeStandard
Pulley Shaft IndicatorStandard
Rodent ScreenNone
RoHS StatusRoHS Compliant
Service Factor1.15
Shaft Diameter0.875 in
Shaft Extension LocationPulley End
Shaft Ground IndicatorNo Shaft Grounding
Shaft RotationReversible
Shaft Slinger IndicatorNo Slinger
Speed1,755 rpm
Speed CodeSingle Speed
Starting MethodDirect on line
Thermal Device - BearingNone
Thermal Device - WindingNone
Vibration Sensor IndicatorNo Vibration Sensor
Winding Thermal 1None
Winding Thermal 2None

Applications

  • Fans
  • Pumps
  • Blowers
  • Conveyors
  • Compressors
  • Industrial machines
  • Other general purpose applications

Features

  • Suitable for inverter use per NEMA MG1 Part 31.4.4.2
  • Designed for longevity with a 3 year warranty on premium efficient Super-E® motors
  • Optimized airflow design providing higher horsepower in a smaller package

Nameplate

Nameplate

CAT.NO. EM3154T
SPEC. 35BB101M495G1
HP 1.5
VOLTS 230/460
AMPS 4.4/2.2
RPM 1755
FRAME 145T HZ 60 PH 3
SF 1.15 CODE L DES B CLASS F
NEMA NOM. EFF 86.5 PF 72
RATING 40C AMB-CONT
CC 010A USABLE AT 208V 4.5
DE 6205 ODE 6203
ENCL OPSB SN
VPWM INVERTER READY
CT30-60(2:1) VT3-60(20:1)
USABLE AT 50HZ 1.5HP 190/380V 5.2/2.6A SF1.0
NP3553LUA

Performance

Performance

Performance at 460 V, 60 Hz, 1.5 hp

Typical performance; not guaranteed values.

General Characteristics

Full Load Torque0 LB-FT
No-Load Current0 A
Line-Line Res. @ 25° C10.73 Ohms A Ph / 0 Ohms B Ph
Temp. Rise @ Rated Load34° C
Temp. Rise @ S.F. Load40° C
Start ConfigurationDOL
Break-Down Torque17.7 LB-FT
Pull-Up Torque10.8 LB-FT
Locked-Rotor Torque12.6 LB-FT
Starting Current17.5 A

Load Characteristics

Rated Load 0% 25% 50% 75% 100% 125% 150% S.F.
Power Factor 8.0 32.0 50.0 63.0 72.0 78.0 81.0 76.0
Efficiency 0.0 74.7 83.5 86.0 86.6 86.3 85.3 86.4
Speed (RPM) 1,800 1,790 1,780 1,769 1,758 1,746 1,733 1,751
Line Amps 1.43 1.50 1.67 1.93 2.24 2.61 3.05 2.46

Performance Curves

Performance at 230 V, 60 Hz, 1.5 hp

Typical performance; not guaranteed values.

General Characteristics

Full Load Torque0 LB-FT
No-Load Current0 A
Line-Line Res. @ 25° C2.59 Ohms A Ph / 0 Ohms B Ph
Temp. Rise @ Rated Load34° C
Temp. Rise @ S.F. Load40° C
Start ConfigurationDOL
Break-Down Torque17.7 LB-FT
Pull-Up Torque10.8 LB-FT
Locked-Rotor Torque12.6 LB-FT
Starting Current35 A

Load Characteristics

Rated Load 0% 25% 50% 75% 100% 125% 150% S.F.
Power Factor 8.0 32.0 50.0 63.0 72.0 78.0 81.0 76.0
Efficiency 0.0 74.7 83.3 85.9 86.5 86.1 85.2 86.3
Speed (RPM) 1,800 1,790 1,780 1,769 1,758 1,746 1,733 1,751
Line Amps 2.86 3.00 3.34 3.86 4.48 5.22 6.10 4.92

Performance Curves
