Specifications
| Brand | Koyo Seiko Company, LTD |
|---|---|
| Manufacturer Part Number | 63172RSC3 |
| Group | Deep Groove Ball Bearings |

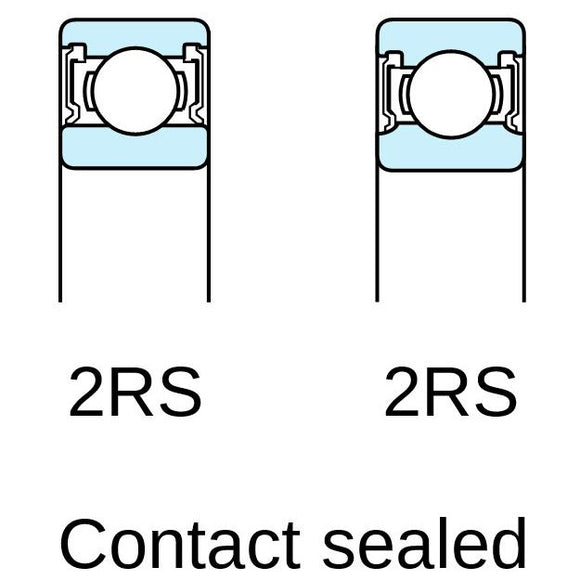

| Type | Contact Sealed (2RS) |

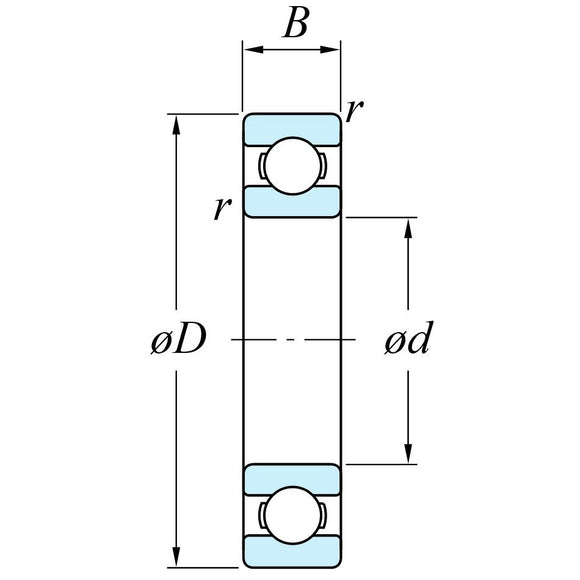

| Bore / Inside Diameter (d) | 85 mm |
| Housing / Outside Diameter (D) | 180 mm |
| Width (B) | 41 mm |
| Minimum Radius (r) | 3 mm |
| Operating Temperature | -30 to 110°C |
| Cage Type | Pressed Steel Cage |
| Configuration | Single-row |
| Tolerances | JIS B 1514 |
| Allowable Misalignment | .002 3 - .003 4 rad ( 8’ - 12’ ) |
| Basic Load Rating | Cr 133 kN C0r 96.8 kN |
| Fatigue Load Limit (Cu) | 6.35 kN |
| Factor (f0) | 13.3 |
| Limiting Speeds (Grease Lubrication) | 2,500 min-1 |
| Shaft Shoulder Mounting Dimension (da) | 98 mm Minimum 111 mm Maximum |
| Housing Shoulder Mounting Dimension (Da) | 167 mm Maximum |
| Shoulder Radius (ra) | 2.5 mm Maximum |
| Mass | 4.23 kg 9.33 lbs |
| UPC | |
| Country of Manufacture | Japan |
