| Bearing No. | 6314 ZZ
|
|

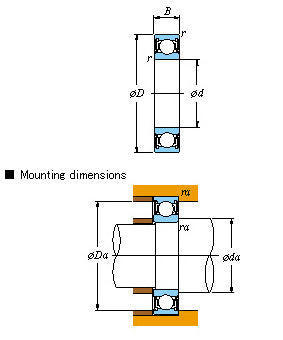

| Boundary dimensions(mm) | d | 70
|
| D | 150
|
|
| B | 35
|
|
| r(min) | 2.1
|
|
| Basic load ratings(kN) | Cr | 130
|
| C0r | 68.2
|
|
| Fatigue load limit(kN) | Cu | 4.95
|
| factor | f0 | 13.2
|
| Limiting speeds(min-1) | Grease lub. | 4500
|
| Mounting dimensions(mm) | da(min) | 81
|
| da(max) | 92
|
|
| Da(max) | 139
|
|
| ra(max) | 2
|
|
| (Refer.)Mass(Open type)(kg) | 2.52
|
