Specifications
| Brand | Koyo Seiko Company, LTD |
|---|---|
| Manufacturer Part Number | 63112RDTC3 |
| Group | Deep Groove Ball Bearings |

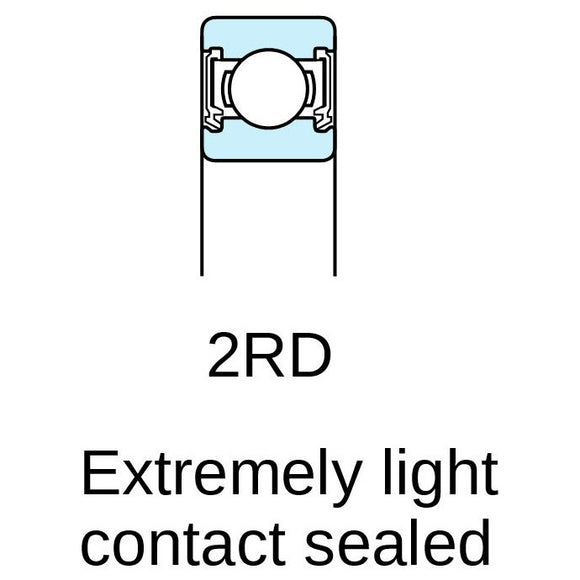

| Type | Extremely Light Contact Sealed (2RD) |

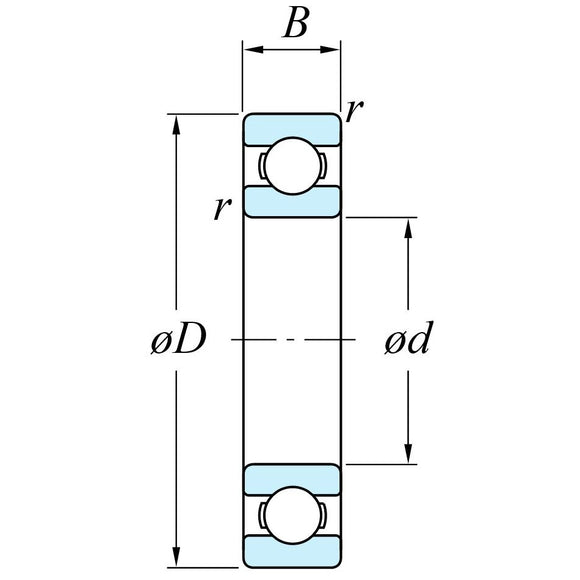

| Bore / Inside Diameter (d) | 55 mm |
| Housing / Outside Diameter (D) | 120 mm |
| Width (B) | 29 mm |
| Minimum Radius (r) | 2 mm |
| Operating Temperature | -30 to 110°C |
| Cage Type | Pressed Steel Cage |
| Configuration | Single-row |
| Tolerances | JIS B 1514 |
| Allowable Misalignment | .002 3 - .003 4 rad ( 8’ - 12’ ) |
| Basic Load Rating | Cr 71.6 kN C0r 45 kN |
| Fatigue Load Limit (Cu) | kN |
| Factor (f0) | |
| Limiting Speeds (Grease Lubrication) | N/A> |

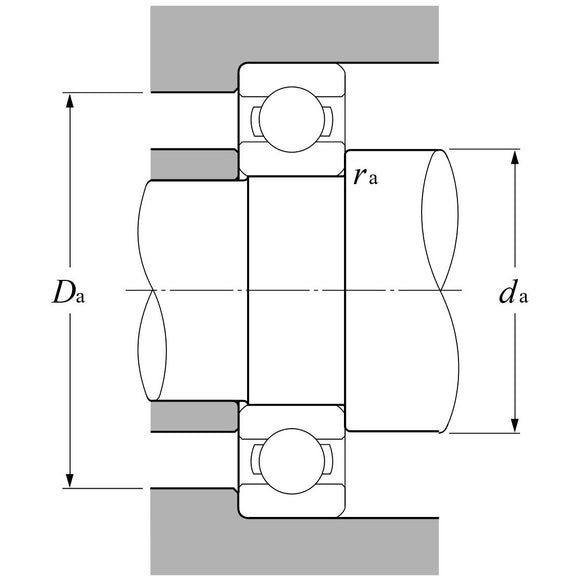

| Shaft Shoulder Mounting Dimension (da) | 71 mm Minimum 80 mm Maximum |
| Housing Shoulder Mounting Dimension (Da) | 119 mm Maximum |
| Shoulder Radius (ra) | 2 mm Maximum |
| Mass | 1.07 kg 2.36 lbs |
| UPC | 4549250172793 |
| Country of Manufacture | Japan |
