Specifications
| Brand | Koyo Seiko Company, LTD |
|---|---|
| Manufacturer Part Number | 6306ZZC3 |
| Group | Deep Groove Ball Bearings |

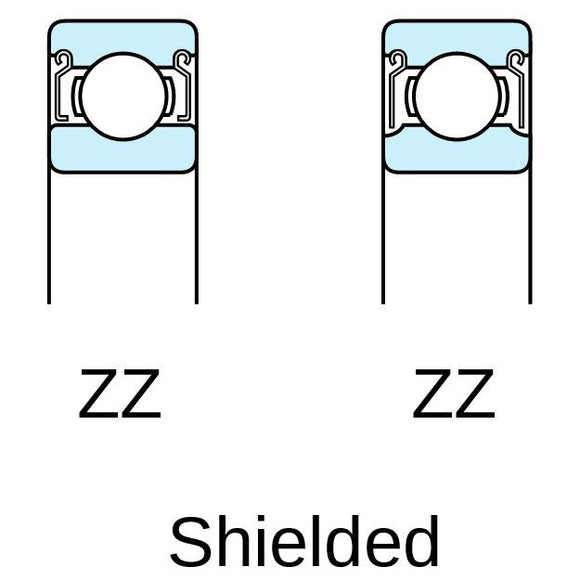

| Type | Shielded (ZZ) | Bore / Inside Diameter (d) | 30 mm |
| Housing / Outside Diameter (D) | 72 mm |
| Width (B) | 19 mm |
| Minimum Radius (r) | 1.1 mm |
| Operating Temperature | -30 to 110°C |
| Cage Type | Pressed Steel Cage |
| Configuration | Single-row |
| Tolerances | JIS B 1514 |
| Allowable Misalignment | .002 3 - .003 4 rad ( 8’ - 12’ ) |
| Basic Load Rating | Cr 26.7 kN C0r 15.0 kN |
| Fatigue Load Limit (Cu) | 1.15 kN |
| Factor (f0) | 13.3 |
| Limiting Speeds (Grease Lubrication) | 9,600 min-1 |

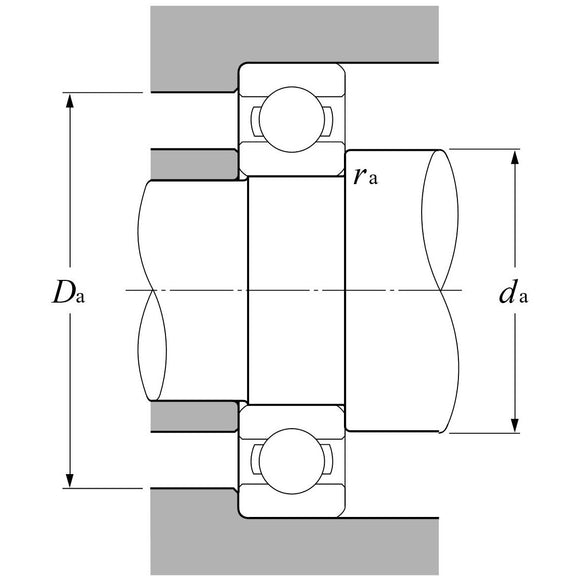

| Shaft Shoulder Mounting Dimension (da) | 36.5 mm Minimum 40 mm Maximum |
| Housing Shoulder Mounting Dimension (Da) | 65.5 mm Maximum |
| Shoulder Radius (ra) | 1 mm Maximum |
| Mass | 0.346 kg 0.77 lbs |
| UPC | 4549250169298 |
| Country of Manufacture | Japan |
