Specifications
| Brand | Koyo Seiko Company, LTD |
|---|---|
| Manufacturer Part Number | 6305ZZC3 |
| Group | Deep Groove Ball Bearings |

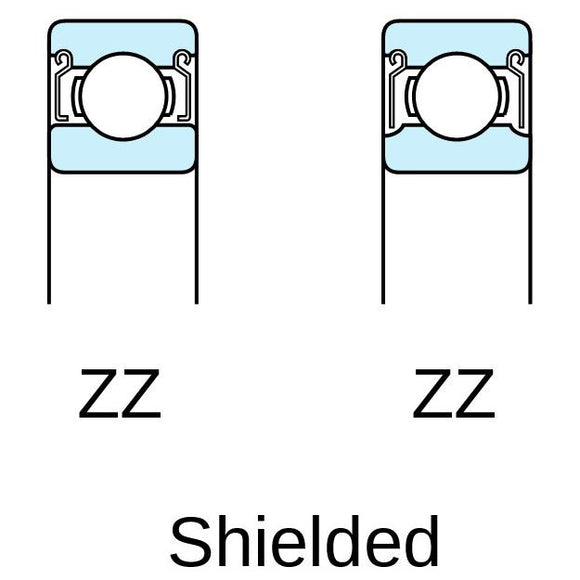

| Type | Shielded (ZZ) |
| Bore / Inside Diameter (d) | 25 mm |
| Housing / Outside Diameter (D) | 62 mm |
| Width (B) | 17 mm |
| Minimum Radius (r) | 1.1 mm |
| Operating Temperature | -30 to 110°C |
| Cage Type | Pressed Steel Cage |
| Configuration | Single-row |
| Tolerances | JIS B 1514 |
| Allowable Misalignment | .002 3 - .003 4 rad ( 8’ - 12’ ) |
| Basic Load Rating | Cr 20.6 kN C0r 11.3 kN |
| Fatigue Load Limit (Cu) | 0.860 kN |
| Factor (f0) | 13.2 |
| Limiting Speeds (Grease Lubrication) | 11,000 min-1 |
| Shaft Shoulder Mounting Dimension (da) | 31.5 mm Minimum 34 mm Maximum |
| Housing Shoulder Mounting Dimension (Da) | 55.5 mm Maximum |
| Shoulder Radius (ra) | 1 mm Maximum |
| Mass | 0.232 kg 0.52 lbs |
| UPC | 4549250168352 |
| Country of Manufacture | Japan |
