Specifications
| Brand | Koyo Seiko Company, LTD |
|---|---|
| Manufacturer Part Number | 6211ZZC3 |
| Group | Deep Groove Ball Bearings |

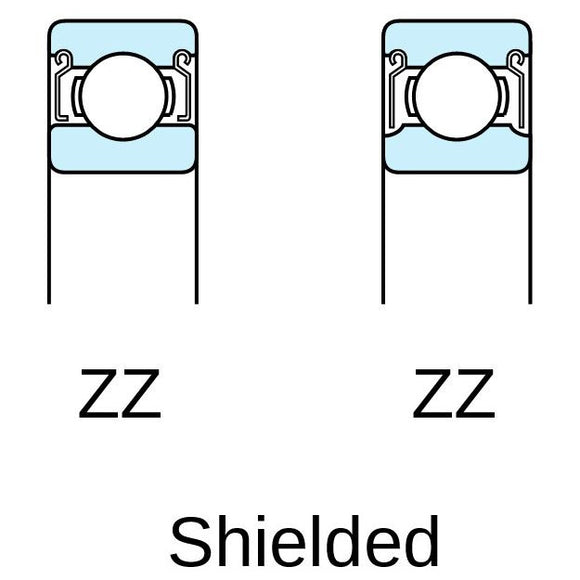

| Type | Shielded (ZZ) |
| Bore / Inside Diameter (d) | 55 mm |
| Housing / Outside Diameter (D) | 100 mm |
| Width (B) | 21 mm |
| Minimum Radius (r) | 1.5 mm |
| Operating Temperature | -30 to 110°C |
| Cage Type | Pressed Steel Cage |
| Configuration | Single-row |
| Tolerances | JIS B 1514 |
| Allowable Misalignment | .002 3 - .003 4 rad ( 8’ - 12’ ) |
| Basic Load Rating | Cr 43.4 kN C0r 29.4 kN |
| Fatigue Load Limit (Cu) | 1.95 kN |
| Factor (f0) | 14.4 |
| Limiting Speeds (Grease Lubrication) | 6,300 min-1 |
| Shaft Shoulder Mounting Dimension (da) | 63 mm Minimum 66 mm Maximum |
| Housing Shoulder Mounting Dimension (Da) | 92 mm Maximum |
| Shoulder Radius (ra) | 1.5 mm Maximum |
| Mass | 0.607 kg 1.34 lbs |
| UPC | 4549250160103 |
| Country of Manufacture | Japan |
