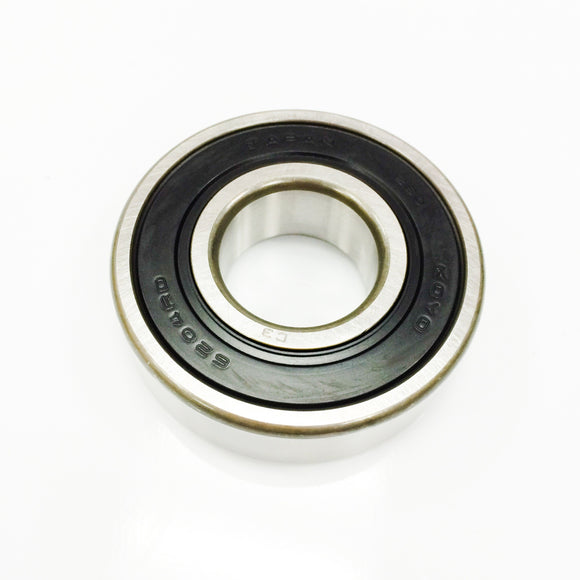

62042RDC3 Koyo Ball Bearing, Rubber Sealed
62042RDC3 Koyo Ball Bearing, Rubber Sealed
62042RDC3 Koyo Ball Bearing, Rubber Sealed
62042RDC3 Koyo Ball Bearing, Rubber Sealed

62042RDC3 Koyo Ball Bearing, Rubber Sealed

$11.02 USD

Shipping calculated at checkout

JTEKT Corporation SKU: 6204-2RS Barcode: 4549250154232

30 Day
Return Policy

Ships Fast
in 24 hours

6204-2RS, 20mm x 47mm x 14mm

17 In Stock!

Description Product Specs Manufacturer

Specifications

Brand Koyo Seiko Company, LTD
Manufacturer Part Number 62042RDC3
Group Deep Groove Ball Bearings

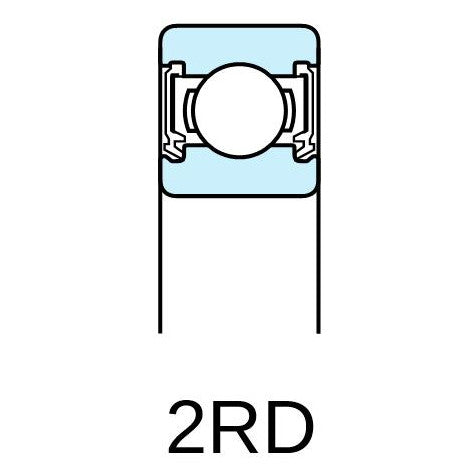

Type Extremely Light Contact Sealed (2RD)
Bore / Inside Diameter (d) 20 mm
Housing / Outside Diameter (D) 47 mm
Width (B) 14 mm
Minimum Radius (r) 1 mm
Operating Temperature -30 to 110°C
Cage Type Pressed Steel Cage
Configuration Single-row
Tolerances JIS B 1514
Allowable Misalignment .002 3 - .003 4 rad ( 8’ - 12’ )
Basic Load Rating Cr 12.8 kN
C0r 6.65 kN
Limiting Speeds (Grease Lubrication) 14,000 min-1
Mass 0.106 kg
0.24 lbs
UPC 4549250154232
Country of Manufacture Japan
Type
  • Ball Bearing
UPC
  • 4549250154232
Weight
  • 0.25 lb

JTEKT Corporation
