Specifications
| Brand | Koyo Seiko Company, LTD |
|---|---|
| Manufacturer Part Number | 60082RSC3 |
| Group | Deep Groove Ball Bearings |
| Type | Contact Sealed (2RS) |

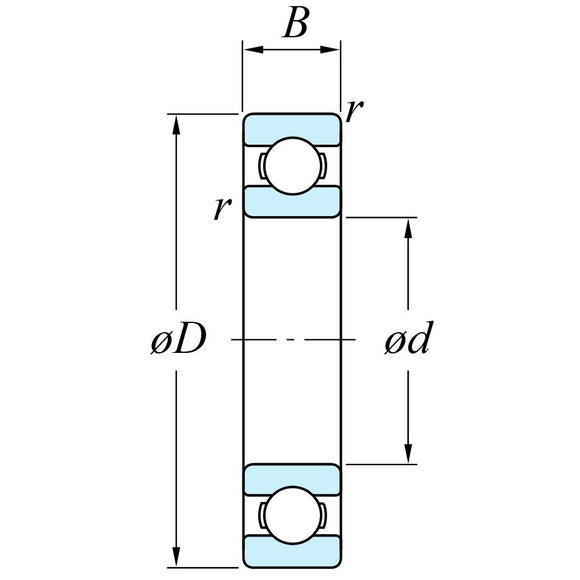

| Bore / Inside Diameter (d) | 40 mm |
| Housing / Outside Diameter (D) | 68 mm |
| Width (B) | 15 mm |
| Minimum Radius (r) | 1 mm |
| Operating Temperature | -30 to 110°C |
| Cage Type | Pressed Steel Cage |
| Configuration | Single-row |
| Tolerances | JIS B 1514 |
| Allowable Misalignment | .002 3 - .003 4 rad ( 8’ - 12’ ) |
| Basic Load Rating | Cr 16.7 kN C0r 11.5 kN |
| Fatigue Load Limit (Cu) | 0.690 kN |
| Factor (f0) | 15.2 |
| Limiting Speeds (Grease Lubrication) | 5,800 min-1 |
| Shaft Shoulder Mounting Dimension (da) | 45 mm Minimum 46.5 mm Maximum |
| Housing Shoulder Mounting Dimension (Da) | 63 mm Maximum |
| Shoulder Radius (ra) | 1 mm Maximum |
| Mass | 0.192 kg 0.43 lbs |
| UPC | 4549250144936 |
| Country of Manufacture | Japan |
