Specifications
| Brand | KBC Bearings (AST Bearing) |
|---|---|
| Manufacturer Part Number | 6000DDC3G81 |
| Group | Deep Groove Ball Bearings |

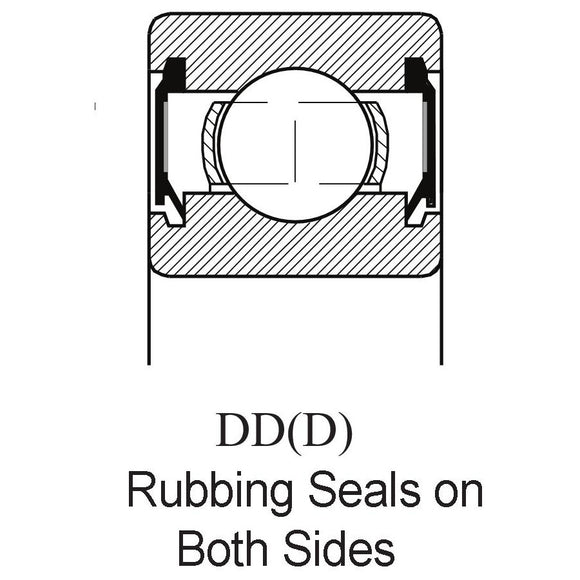

| Type | Rubbing Seals on Both Sides (DD) |

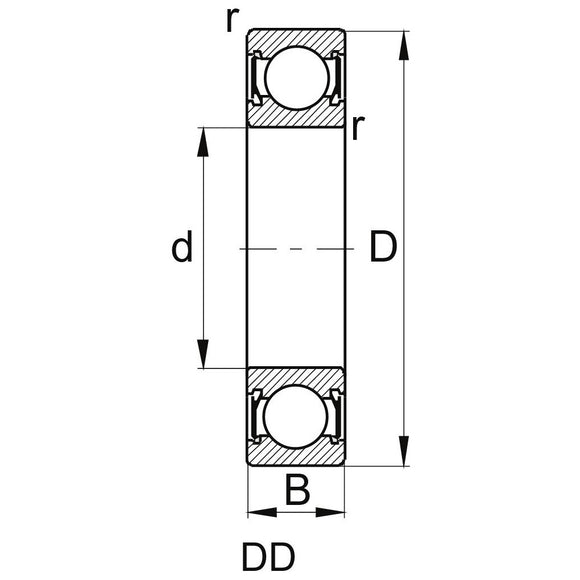

| Bore / Inside Diameter (d) | 10 mm |
| Housing / Outside Diameter (D) | 26 mm |
| Width (B) | 8 mm |
| Minimum Radius (r) | 0.3 mm |
| Operating Temperature | 120°C |
| Cage Type | Pressed Steel Cage |
| Configuration | Single-row |
| Standards | KS B 2023 |
| Allowable Misalignment | Low Loads: 2’… 6’ High Loads: 5’… 10’ |
| Basic Load Rating | Cr 4550 N (464 kgf) C0r 1960 N (200 kgf) |
| Limiting Speeds (Grease Lubrication) | 22,000 min-1 |
| Weight | 0.018 kg 0.04 lbs |
| Ball Qty | 7 |
| Ball Diameter | 4.762 mm |

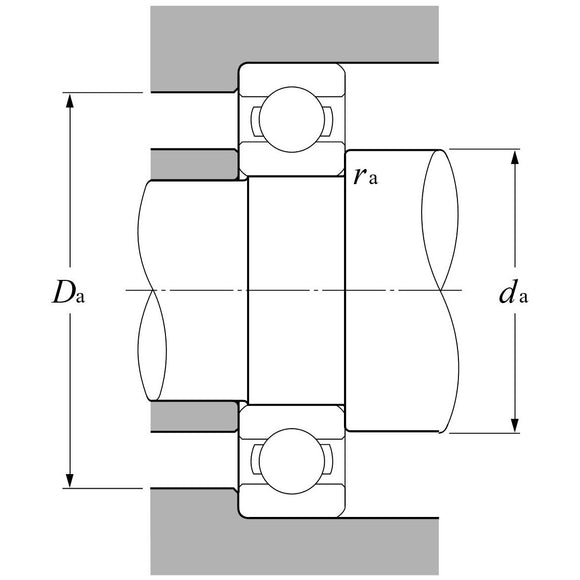

| Shaft Abutment Dimension (da) | 12 mm Minimum |
| Housing Abutment Dimension (Da) | 24 mm Maximum |
| Abutment Radius (ra) | 0.3 mm Maximum |
| Precision | A1 |
| Standard Clearance | C0 |
| Material | 52100 Chrome Steel (or equivalent) |
| Country of Manufacture | Korea |
