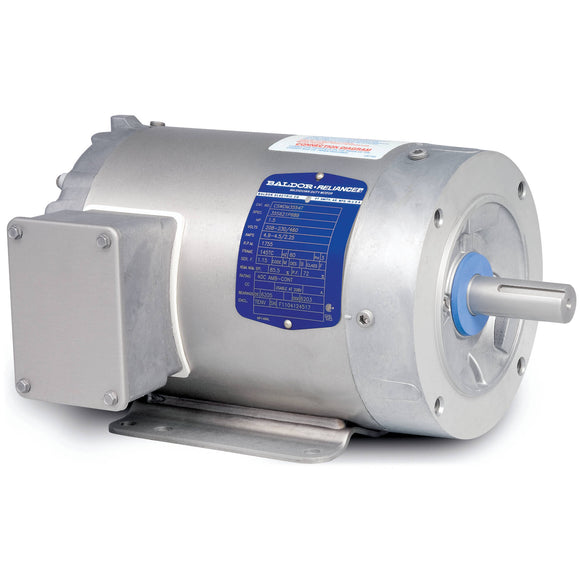

CSWDM3542 Baldor 3/4HP Washdown Paint Free Electric Motor, 1750RPM

$931.97 USD

Shipping calculated at checkout

Baldor Electric Company SKU: CSWDM3542 Barcode: 781568135648

30 Day
Return Policy

Ships Fast
in 24 hours

TENV, 56C Frame, 230/460VAC 60Hz 3 Phase, 3514M, Stainless Steel Frame, Rigid Base, C-Face, 5/8" Keyed Shaft






Specifications





Specs






Catalog Number

CSWDM3542



Enclosure

TENV



Frame

56C



Frame Material

Stainless Steel



Frequency

60.00 Hz



Output @ Frequency

.750 HP @ 60 HZ



Phase

3



Synchronous Speed @ Frequency

1800 RPM @ 60 HZ



Voltage @ Frequency

460.0 V @ 60 HZ

230.0 V @ 60 HZ



XP Class and Group

None



XP Division

Not Applicable



Agency Approvals

CSA

UR



Ambient Temperature

40 °C



Auxillary Box

No Auxillary Box



Auxillary Box Lead Termination

None



Base Indicator

Rigid



Bearing Grease Type

Polyrex EM (-20F +300F)



Blower

None



Current @ Voltage

1.400 A @ 460.0 V

2.800 A @ 230.0 V

3.000 A @ 208.0 V



Design Code

B



Drip Cover

No Drip Cover



Duty Rating

CONT



Efficiency @ 100% Load

78.5 %



Electrically Isolated Bearing

Not Electrically Isolated



Feedback Device

NO FEEDBACK



High Voltage Full Load Amps

1.4 a



Front Face Code

Standard



Front Shaft Indicator

None



Heater Indicator

No Heater



Insulation Class

F



Inverter Code

Not Inverter





KVA Code

M



Lifting Lugs

No Lifting Lugs



Locked Bearing Indicator

Locked Bearing



Motor Lead Exit

Ko Box



Motor Lead Termination

Flying Leads



Motor Lead Quantity/Wire Size

9 @ 18 AWG



Motor Type

3514M



Mounting Arrangement

F1



Number of Poles

4



Overall Length

11.06 IN



Power Factor

66



Product Family

Wash Down Paint Free



Pulley End Bearing Type

Sealed Bearing



Pulley Face Code

C-Face



Pulley Shaft Indicator

Standard



Rodent Screen

None



Service Factor

1.25



Shaft Diameter

0.625 IN



Shaft Extension Location

Pulley End



Shaft Ground Indicator

No Shaft Grounding



Shaft Rotation

Reversible



Shaft Slinger Indicator

No Slinger



Speed

1750 rpm



Speed Code

Single Speed



Motor Standards

NEMA



Starting Method

Direct on line



Thermal Device - Bearing

None



Thermal Device - Winding

None



Vibration Sensor Indicator

No Vibration Sensor



Winding Thermal 1

None



Winding Thermal 2

None






Applications





Features





Nameplate





Nameplate



































































































CAT.NO. CSWDM3542
SPEC. 35S630P672G1
HP .75
VOLTS 230/460
AMP 2.8/1.4
RPM 1750
FRAME 56C HZ 60 PH 3
SER.F. 1.25 CODE M DES B CLASS F
NEMA-NOM-EFF 78.5 PF 66
RATING 40C AMB-CONT
CC USABLE AT 208V 3
DE 6205 ODE 6203
ENCL TENV SN
SFA 3/1.5
NP1496L




Performance




Performance



Performance at 460 V, 60 Hz, 0.75 hp


Typical performance; not guaranteed values.

General Characteristics





Full Load Torque
0 LB-FT


No-Load Current
0 A


Line-Line Res. @ 25° C
21.9 Ohms A Ph / 0 Ohms B Ph


Temp. Rise @ Rated Load



Temp. Rise @ S.F. Load





Start Configuration
DOL


Break-Down Torque
11.5 LB-FT


Pull-Up Torque
6.93 LB-FT


Locked-Rotor Torque
7.71 LB-FT


Starting Current
10.5 A



Load Characteristics






























































Rated Load 0% 25% 50% 75% 100% 125% 150% S.F.
Power Factor 12.0 28.0 44.0 56.0 66.0 74.0 79.0 74.0
Efficiency 0.0 57.7 71.7 76.6 78.6 79.0 78.6 79.0
Speed (RPM) 1,799 1,789 1,777 1,766 1,751 1,736 1,722 1,736
Line Amps 1.07 1.08 1.14 1.22 1.36 1.52 1.69 1.52
