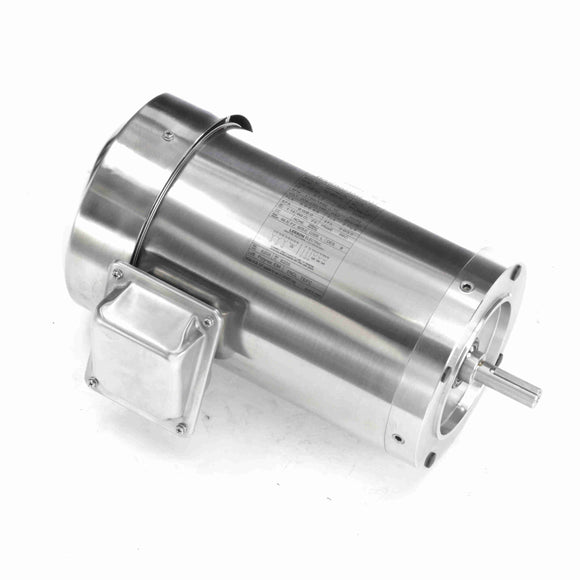

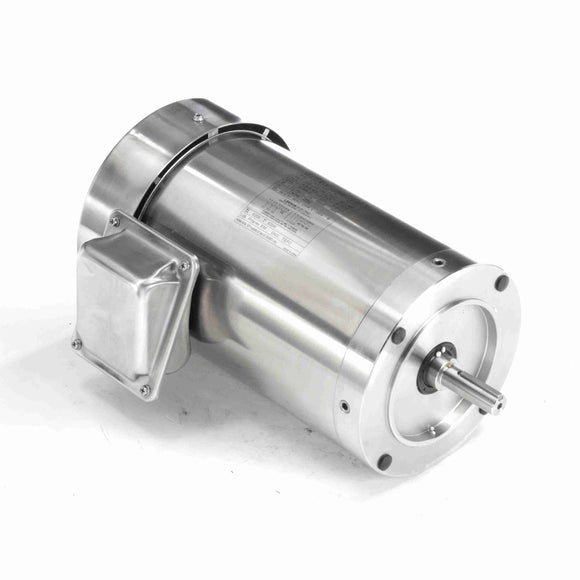

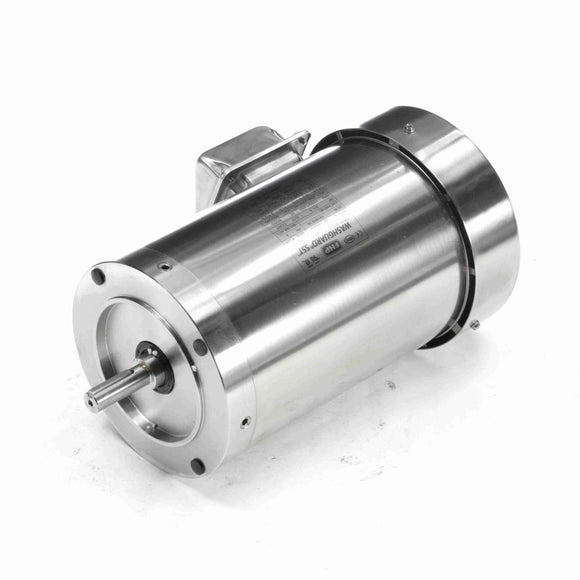

191569.00 Leeson 2HP Stainless Steel Electric Motor, Washdown Duty

$1,630.00 USD

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: 191569.00 Barcode: 691720104095

30 Day
Return Policy

Ships Fast
in 24 hours

1800 RPM, 56C Frame, TEFC, 3 Phase, 230/460VAC

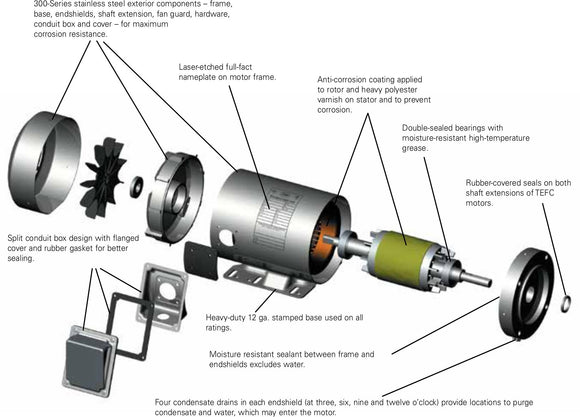

Features




Features


  • Paint free exterior

  • BISSC certified for the Baking Industry

  • Stainless Steel Output shafts

  • Repositional drain plugs for all angle mounting

  • Double Sealed bearings

  • Output shaft seal

  • Inverter Duty IRIS™ insulation system

  • Laser etched full-fact nameplate on frame

  • All Stainless exterior

  • Anti-corrosion coating applied to interior components






General Specifications





General Specifications






























Model :
C6T17WC64A
Catalog No :
191569.00

Part Description :
..2HP..1740RPM.56C.TEFC.208-230/460V.3PH.60HZ.CONT.40C.1.15SF.C FACE.....WASHGUARD-ALL STAINLESS.NOT.......
Category :
Paint Free

Stock :
No






Nameplate Specifications





Nameplate Specifications








































































Output HP :
2 HP
Output KW :
1.5 kW

Frequency :
60 Hz
Voltage :
208-230/460 V

Current :
5.8-5.4/2.7 A
Speed :
1750 RPM

Service Factor :
1.15
Phase :
3

Efficiency :
86.5 %
Duty :
Continuous

Insulation Class :
F
Design Code :
B

KVA Code :
L
Frame :
56C

Enclosure :
Totally Enclosed Fan Cooled
Overload Protector :
No

Ambient Temperature :
40 °C
Drive End Bearing Size :
6205

Opp Drive End Bearing Size :
6205
UL :
Recognized

CSA :
Y
CE :
Y

IP Code :
55






Technical Specifications





Technical Specifications






















































Electrical Type :
Squirrel Cage Inverter Rated
Starting Method :
Line Or Inverter

Poles :
4
Rotation :
Reversible

Mounting :
Round
Motor Orientation :
Horizontal

Drive End Bearing :
Ball
Opp Drive End Bearing :
Ball

Frame Material :
Stainless Steel
Shaft Type :
NEMA 56

Overall Length :
13.77 in
Shaft Diameter :
0.625 in

Shaft Extension :
2.06 in
Assembly/Box Mounting :
F1/F2 CAPABLE

UPC :
691720104095
Weight :
47.00 LB






Speed & Load Characteristics





Speed Characteristics































































Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)

Pull-Up
22.90 848.0 14.04 235.0 321 9.80 53.9 2.00

Locked-Rotor
23.40 867.0 17.40 291.0 0 9.60 51.5 2.00

Full Load
2.70 100.0 5.98 100.0 1,754 1.69 78.3 2.00

Break-Down
14.20 526.0 25.44 425.0 1,364 9.10 80.6 2.00





Load Characteristics






  • % of Rated Load

  • Current (Amps)

  • Rated Output (KW)

  • Efficiency (%)

  • Power Factor (%)

  • Speed (RPM)

  • Temp. Rise @ FL

  • Torque (ft-lb)





  • 0 %

  • 1.40

  • 0.099

  • 0.0

  • 8.9

  • 0

  • 0.0

  • 0.00





  • 25 %

  • 1.60

  • 0.479

  • 77.9

  • 37.6

  • 1,789

  • 0.0

  • 1.47





  • 50 %

  • 1.80

  • 0.868

  • 85.9

  • 60.5

  • 1,779

  • 0.0

  • 2.95





  • 75 %

  • 2.20

  • 1.270

  • 88.2

  • 72.5

  • 1,767

  • 0.0

  • 4.46





  • 100 %

  • 2.70

  • 1.685

  • 88.4

  • 78.3

  • 1,754

  • 46.0

  • 5.98





  • 115 %

  • 2.96

  • 1.927

  • 89.0

  • 81.7

  • 1,747

  • 0.0

  • 6.91





  • 125 %

  • 3.20

  • 2.115

  • 88.1

  • 83.0

  • 1,741

  • 0.0

  • 7.54





  • 150 %

  • 3.80

  • 2.565

  • 87.2

  • 84.7

  • 1,725

  • 0.0

  • 9.13
