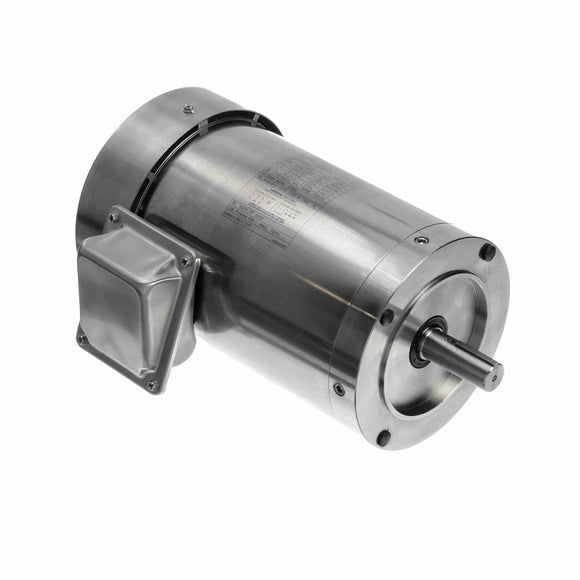

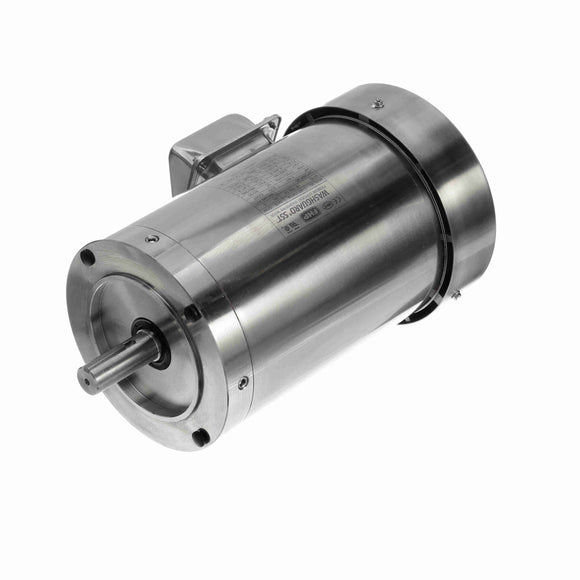

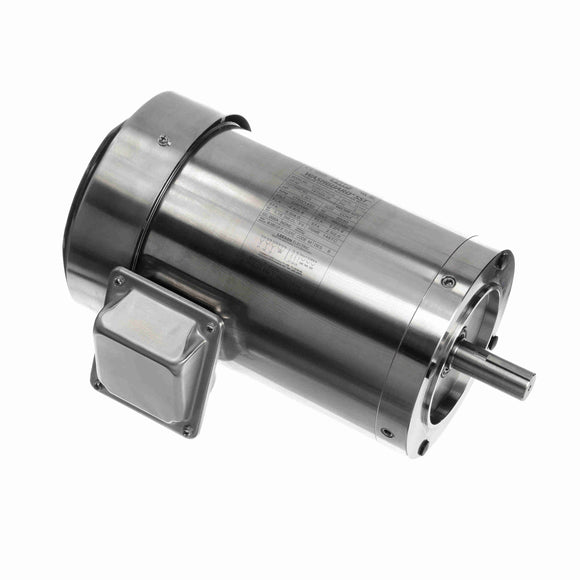

191568.00 1.5HP Leeson Electric SS Motor, Washdown

$1,022.59 USD

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: 191568.00 Barcode: 691720104088

30 Day
Return Policy

Ships Fast
in 24 hours

1800 RPM, 145TC Frame, TEFC, 3 Phase, 230/460VAC






Features




Features

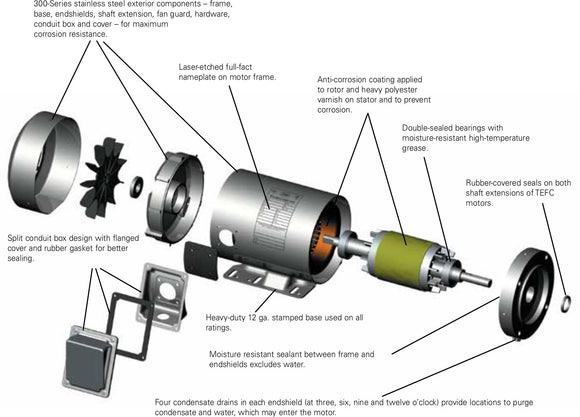

  • Extended Thru-bolts

  • Auto Reset Protectors

  • TEAO designs

  • Laser etched full-fact nameplate on frame

  • All Stainless exterior

  • Anti-corrosion coating applied to interior components






General Specifications





General Specifications






























Model :
C145T17WC39A
Catalog No :
191568.00

Part Description :
..1 1/2HP..1800.145TC.TEFC.230/460V.3PH.60HZ.CONT.40C..C-FACE..............
Category :
Paint Free

Stock :
No






Nameplate Specifications





Nameplate Specifications








































































Output HP :
1.50 HP
Output KW :
1.1 kW

Frequency :
60 Hz
Voltage :
208-230/460 V

Current :
4.8-4.4/2.2 A
Speed :
1750 RPM

Service Factor :
1.15
Phase :
3

Efficiency :
86.5 %
Duty :
Continuous

Insulation Class :
F
Design Code :
B

KVA Code :
M
Frame :
145TC

Enclosure :
Totally Enclosed Fan Cooled
Overload Protector :
No

Ambient Temperature :
40 °C
Drive End Bearing Size :
6205

Opp Drive End Bearing Size :
6205
UL :
Recognized

CSA :
Y
CE :
Y

IP Code :
55






Technical Specifications





Technical Specifications

























































Electrical Type :
Squirrel Cage Inverter Rated
Starting Method :
Line Or Inverter

Poles :
4
Rotation :
Reversible

Mounting :
Round
Motor Orientation :
HORIZONTAL

Drive End Bearing :
BALL
Opp Drive End Bearing :
BALL

Frame Material :
Stainless Steel
Shaft Type :
T

Overall Length :
13.62 in
Frame Length :
7.99 in

Shaft Diameter :
0.875 in
Shaft Extension :
2.25 in

Assembly/Box Mounting :
F1/F2 CAPABLE
UPC :
691720104088

Weight :
46.00 LB






Speed & Load Characteristics





Speed Characteristics































































Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)

Full Load
2.20 100.0 4.51 100.0 1,745 1.32 75.5 1.50

Locked-Rotor
19.90 905.0 18.10 401.0 0 9.50 59.5 1.50

Break-Down
12.50 568.0 21.05 467.0 1,286 8.30 83.3 1.50

Pull-Up
19.40 882.0 15.28 339.0 257 9.60 61.9 1.50





Load Characteristics






  • % of Rated Load

  • Current (Amps)

  • Rated Output (KW)

  • Efficiency (%)

  • Power Factor (%)

  • Speed (RPM)

  • Temp. Rise @ FL

  • Torque (ft-lb)





  • 0 %

  • 1.30

  • 0.106

  • 0.0

  • 10.2

  • 0

  • 0.0

  • 0.00





  • 25 %

  • 1.40

  • 0.398

  • 70.5

  • 35.7

  • 1,785

  • 0.0

  • 1.11





  • 50 %

  • 1.60

  • 0.694

  • 79.5

  • 54.4

  • 1,773

  • 0.0

  • 2.19





  • 75 %

  • 1.90

  • 1.003

  • 84.1

  • 66.3

  • 1,759

  • 0.0

  • 3.38





  • 100 %

  • 2.20

  • 1.323

  • 84.6

  • 75.5

  • 1,745

  • 53.2

  • 4.51





  • 115 %

  • 2.48

  • 1.540

  • 83.8

  • 77.9

  • 1,735

  • 0.0

  • 5.24





  • 125 %

  • 2.60

  • 1.659

  • 84.6

  • 80.1

  • 1,730

  • 0.0

  • 5.71





  • 150 %

  • 3.00

  • 2.011

  • 83.5

  • 84.1

  • 1,713

  • 0.0

  • 6.90
