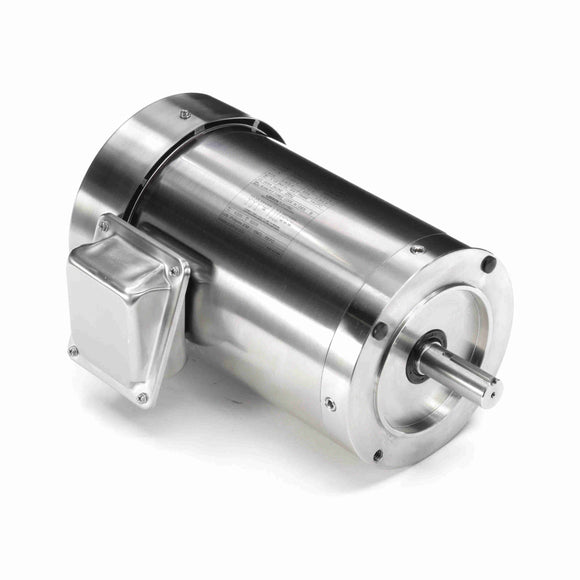

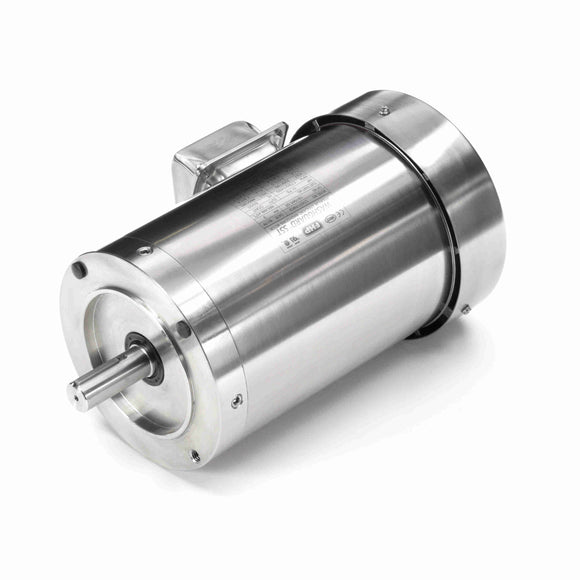

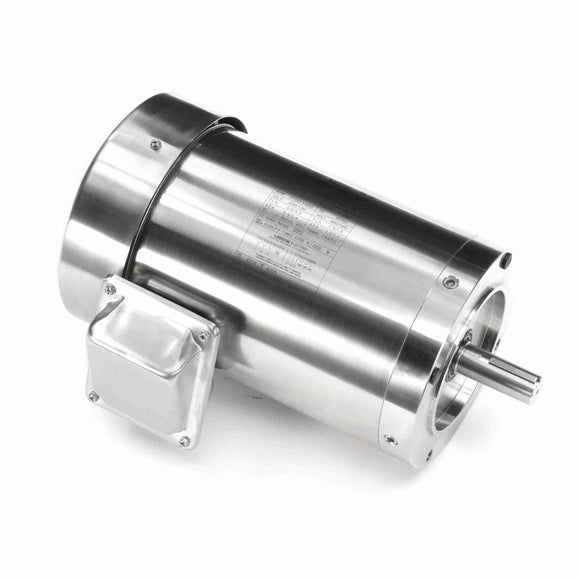

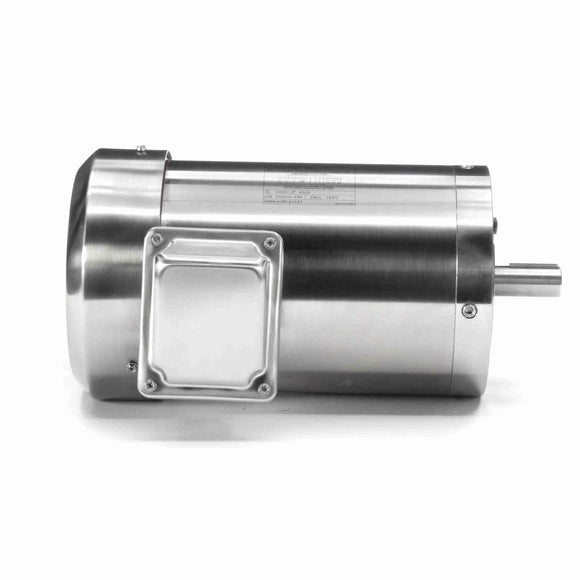

191565.00 1HP Leeson Electric SS Motor, Washdown

$950.32 USD

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: 191565.00 Barcode: 691720052853

30 Day
Return Policy

Ships Fast
in 24 hours

1800 RPM, 143TC Frame, TEFC, 3 Phase, 230/460VAC






Features




Features

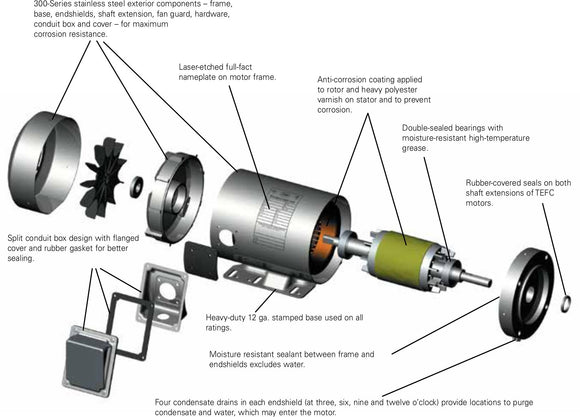

  • Extended Thru-bolts

  • Auto Reset Protectors

  • TEAO designs

  • Laser etched full-fact nameplate on frame

  • All Stainless exterior

  • Anti-corrosion coating applied to interior components






General Specifications





General Specifications






























Model :
C143T17WC9A
Catalog No :
191565.00

Part Description :
..1HP..1800.143TC.TEFC.230/460V.3PH.60HZ.CONT.40C..C-FACE......STAINLESS WASHDOWN........
Category :
Paint Free

Stock :
No






Nameplate Specifications





Nameplate Specifications








































































Output HP :
1 HP
Output KW :
0.75 kW

Frequency :
60 Hz
Voltage :
208-230/460 V

Current :
3.2-3.0/1.5 A
Speed :
1750 RPM

Service Factor :
1.15
Phase :
3

Efficiency :
85.5 %
Duty :
Continuous

Insulation Class :
F
Design Code :
B

KVA Code :
N
Frame :
143TC

Enclosure :
Totally Enclosed Fan Cooled
Overload Protector :
No

Ambient Temperature :
40 °C
Drive End Bearing Size :
6205

Opp Drive End Bearing Size :
6205
UL :
Recognized

CSA :
Y
CE :
Y

IP Code :
55






Technical Specifications





Technical Specifications

























































Electrical Type :
Squirrel Cage Inverter Rated
Starting Method :
Line Or Inverter

Poles :
4
Rotation :
Reversible

Mounting :
Round
Motor Orientation :
HORIZONTAL

Drive End Bearing :
BALL
Opp Drive End Bearing :
BALL

Frame Material :
Stainless Steel
Shaft Type :
T

Overall Length :
13.62 in
Frame Length :
7.99 in

Shaft Diameter :
0.875 in
Shaft Extension :
2.25 in

Assembly/Box Mounting :
F1/F2 CAPABLE
UPC :
691720052853

Weight :
44.00 LB






Speed & Load Characteristics





Speed Characteristics































































Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)

Break-Down
10.10 673.0 15.83 529.0 1,264 6.30 78.3 1.00

Locked-Rotor
15.10 1,007.0 13.17 440.0 0 6.70 55.8 1.00

Full Load
1.50 100.0 2.99 100.0 1,757 0.86 71.9 1.00

Pull-Up
14.80 987.0 10.51 352.0 193 6.80 57.4 1.00





Load Characteristics






  • % of Rated Load

  • Current (Amps)

  • Rated Output (KW)

  • Efficiency (%)

  • Power Factor (%)

  • Speed (RPM)

  • Temp. Rise @ FL

  • Torque (ft-lb)





  • 0 %

  • 1.00

  • 0.061

  • 0.0

  • 7.7

  • 0

  • 0.0

  • 0.00





  • 25 %

  • 1.00

  • 0.252

  • 74.5

  • 31.6

  • 1,790

  • 0.0

  • 0.74





  • 50 %

  • 1.10

  • 0.448

  • 83.4

  • 51.1

  • 1,779

  • 0.0

  • 1.48





  • 75 %

  • 1.30

  • 0.650

  • 86.1

  • 62.8

  • 1,768

  • 0.0

  • 2.23





  • 100 %

  • 1.50

  • 0.859

  • 86.9

  • 71.9

  • 1,757

  • 32.7

  • 2.99





  • 115 %

  • 1.70

  • 1.015

  • 84.5

  • 74.9

  • 1,750

  • 0.0

  • 3.45





  • 125 %

  • 1.80

  • 1.075

  • 86.8

  • 75.0

  • 1,745

  • 0.0

  • 3.77





  • 150 %

  • 2.00

  • 1.300

  • 86.1

  • 81.6

  • 1,732

  • 0.0

  • 4.55
