Electric Motors
| Frame | 182/4TC |
|---|---|
| Output | 3 HP (2.2 kW) |
| Number of Poles | 2 |
| Frequency | 60 Hz |
| Rated speed | 3515 rpm |
| Slip | 2.36 % |
| Rated voltage | 230/460 V |
| Rated current | 7.34/3.67 A |
| L. R. Amperes | 64.6/32.3 A |
| LRC | 8.8x(Code K) |
| No load current | 3.22/1.61 A |
| Rated torque | 0.619 kgfm |
| Locked rotor torque | 220 % |
| Breakdown torque | 300 % |
| Locked rotor time | 39s (cold) 22s (hot) |
| Moment of inertia (J) | 0.0066 kgm² |
|---|---|
| Design | B |
| Insulation Class | F |
| Service factor | 1.15 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP56 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 68.0 dB(A) |
| Approx. weight³ | 32.1 kg |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
84.0 |
86.5 |
86.5 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.71 |
0.82 |
0.87 |
| Frame | 182/4TC |
|---|---|
| Output | 3 HP (2.2 kW) |
| Number of Poles | 2 |
| Frequency | 50 Hz |
| Rated speed | 2885 rpm |
| Slip | 3.83 % |
| Rated voltage | 190/380 V |
| Rated current | 8.70/4.35 A |
| L. R. Amperes | 60.0/30.0 A |
| LRC | 6.9x(Code H) |
| No load current | 3.18/1.59 A |
| Rated torque | 0.755 kgfm |
| Locked rotor torque | 180 % |
| Breakdown torque | 280 % |
| Locked rotor time | 0s (cold) 0s (hot) |
| Moment of inertia (J) | 0.0066 kgm² |
|---|---|
| Design | B |
| Insulation Class | F |
| Service factor | 1.15 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP56 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 65.0 dB(A) |
| Approx. weight³ | 32.1 kg |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
85.9 |
86.5 |
85.3 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.77 |
0.86 |
0.90 |
| Frame | 182/4TC |
|---|---|
| Output | 3 HP (2.2 kW) |
| Number of Poles | 2 |
| Frequency | 50 Hz |
| Rated speed | 2900 rpm |
| Slip | 3.33 % |
| Rated voltage | 220/415 V |
| Rated current | 7.81/4.14 A |
| L. R. Amperes | 59.4/31.5 A |
| LRC | 7.6x(Code J) |
| No load current | 3.22/1.71 A |
| Rated torque | 0.751 kgfm |
| Locked rotor torque | 210 % |
| Breakdown torque | 310 % |
| Locked rotor time | 0s (cold) 0s (hot) |
| Moment of inertia (J) | 0.0066 kgm² |
|---|---|
| Design | B |
| Insulation Class | F |
| Service factor | 1.15 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP56 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 65.0 dB(A) |
| Approx. weight³ | 32.1 kg |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
85.7 |
86.8 |
86.1 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.73 |
0.84 |
0.89 |

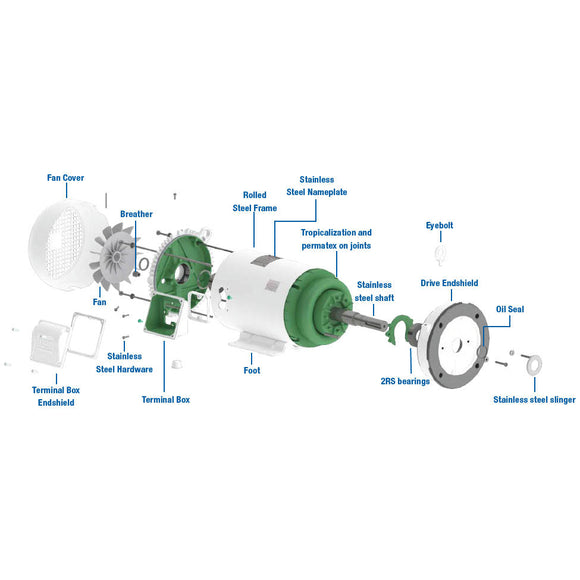

Features
| Frame Material | Rolled Steel |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Main terminal box hole | NPT 3/4" |
| Terminal Block | Without |
| Shaft Material | AISI 304 Stainless Steel |
| Painting | 04501 205E |
| Grounding Lugs | Single |
| Fan Cover material | Steel |
| Tropicalized Painting | Complete (200h) |
| Joints Seal | Permatex |
| Fan material | Plastic |
| Bearing cap | Yes- Bearing Cap |
| Bolt Material | Stainless Steel |
| Balancing Method | 1/2 Key |
| Drip Cover | Without |
| Resilient Base | Without |
| Overload protector (phenolic) | Without overload protector |
