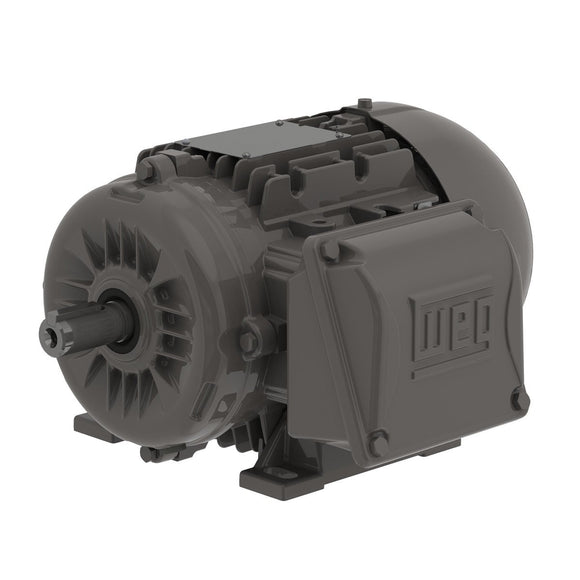

.2536EP3EAL63-W22 WEG 0.33HP/0.25kW IEC TRU-Metric Electric Motor, 3600RPM

$254.54 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: .2536EP3EAL63-W22 Barcode: 7909323280331

30 Day
Return Policy

Ships Fast
in 24 hours

IC411-TEFC, IP55, 63 Frame, 230/460/380-415VAC 3-Phase 50/60Hz, 13982726, Multimounting, High Efficiency, Foot Mount, 11mm Keyed Shaft

Description Product Specs Manufacturer

Electric Motors

Frame 63
Output 0.33 HP (0.25 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2700 rpm
Slip 10.00 %
Rated voltage 380 V
Rated current 0.682 A
L. R. Amperes 3.14 A
LRC 4.6
No load current 0.450 A
Rated torque 0.633 ft.lb
Locked rotor torque 250 %
Breakdown torque 260 %
Locked rotor time 39s (cold) 22s (hot)
Moment of inertia (J) 0.0038 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 52.0 dB(A)
Approx. weight³ 14.3 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
65.0  68.0  69.6

Power factor

50% 75% 100%
0.56  0.70  0.80
Frame 63
Output 0.33 HP (0.25 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2730 rpm
Slip 9.00 %
Rated voltage 400 V
Rated current 0.682 A
L. R. Amperes 3.14 A
LRC 4.6
No load current 0.500 A
Rated torque 0.626 ft.lb
Locked rotor torque 265 %
Breakdown torque 280 %
Locked rotor time 39s (cold) 22s (hot)
Moment of inertia (J) 0.0038 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 52.0 dB(A)
Approx. weight³ 14.3 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
64.0  67.5  69.6

Power factor

50% 75% 100%
0.52  0.66  0.76
Frame 63
Output 0.33 HP (0.25 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2760 rpm
Slip 8.00 %
Rated voltage 415 V
Rated current 0.694 A
L. R. Amperes 3.19 A
LRC 4.6
No load current 0.550 A
Rated torque 0.619 ft.lb
Locked rotor torque 280 %
Breakdown torque 300 %
Locked rotor time 39s (cold) 22s (hot)
Moment of inertia (J) 0.0038 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 52.0 dB(A)
Approx. weight³ 14.3 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
63.0  67.0  69.6

Power factor

50% 75% 100%
0.47  0.61  0.72
Frame 63
Output 0.33 HP (0.25 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3350 rpm
Slip 6.94 %
Rated voltage 230/460 V
Rated current 1.26/0.628 A
L. R. Amperes 6.78/3.39 A
LRC 5.4
No load current 0.900/0.450 A
Rated torque 0.510 ft.lb
Locked rotor torque 330 %
Breakdown torque 340 %
Locked rotor time 39s (cold) 22s (hot)
Moment of inertia (J) 0.0038 sq.ft.lb
Design N
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 14.3 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
62.0  67.0  69.4

Power factor

50% 75% 100%
0.50  0.62  0.72

Features

Frame Material Aluminum
Impregnation Method Dip and Bake Polyester
Main terminal box hole NPT 1/2"
Terminal Block BMC - 6 pins
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 7022 207A (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Steel
Tropicalized Painting Without
Fan material Plastic
Bearing cap No-Without Bearing Cap
Balancing Method Not Balanced
Drip Cover Without
Overload protector (phenolic) Without overload protector
Enclosure
  • TEFC
Frame Size
  • 63
Horsepower
  • 1/3HP
Input Phase
  • 3-Phase
Input Voltage
  • 230VAC
  • 460VAC
  • 380VAC
  • 415VAC
Speed
  • 3600RPM
Type
  • Electric Motor
UPC
  • 7909323280331
Weight
  • 16.0 lb

WEG Electric Corporation
