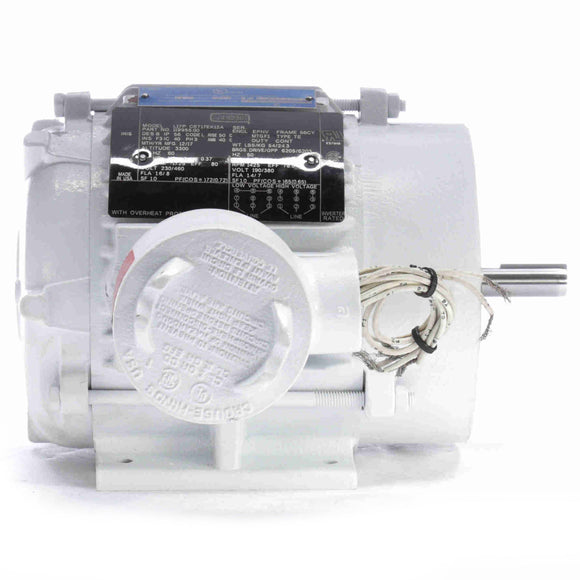

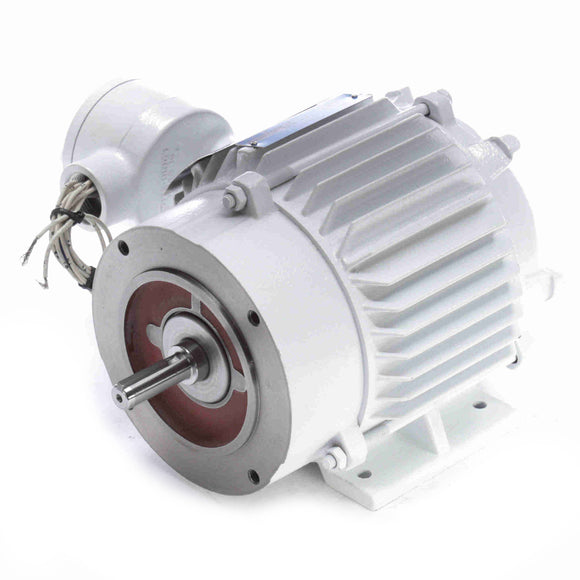

Features
- USDA-approved finish
- Sealed Bearings; Interior Corrosion Protected
- Internally Locked Shaft-End Bearing
- Shaft Seals on Both Ends
- Cast iron Conduit Box
- Rigid Base with C Face
- Stainless Steel Nameplate
- Potted Leads; T-Stats
- Premium Efficiency
General Specifications
| UPC: | 691720993842 | Weight: | 54.00 LB |
| Packaged Length: | 15.5 IN | Packaged Width: | 14 IN |
| Packaged Height: | 9.38 IN |
Nameplate Specifications
| Output HP: | 0.50 Hp | Output KW: | 0.37 kW |
| Frequency: | 60 Hz | Voltage: | 230/460 V |
| Current: | 1.6/0.80 A | Speed: | 1725 rpm |
| Service Factor: | 1 | Phase: | 3 |
| Efficiency: | 80 % | Power Factor: | 72 |
| Duty: | Continuous | Insulation Class: | F |
| Design Code: | B | KVA Code: | L |
| Frame: | 56CY | Enclosure: | Explosion Proof Non Ventilated |
| Thermal Protection: | Thermostats (N/C) | Ambient Temperature: | 40 °C |
| Drive End Bearing Size: | 6205 | Opp Drive End Bearing Size: | 6203 |
| UL: | UL Listed And CSA Certified | CSA: | Y |
| CE: | N | IP Code: | 56 |
| Hazardous Location: | EXP PROOF CL I GR C&D CL II GR F&G T3B |
Technical Specifications
| Electrical Type: | Squirrel Cage Induction Run | Starting Method: | Across The Line |
| Poles: | 4 | Rotation: | Reversible |
| Resistance Main: | 36.24 Ohms | Mounting: | Rigid base |
| Motor Orientation: | HORIZONTAL | Drive End Bearing: | BALL |
| Opp Drive End Bearing: | BALL | Frame Material: | Cast Iron |
| Shaft Type: | NEMA 56 | Overall Length: | 11.11 in |
| Frame Length: | 5.25 in | Shaft Diameter: | 0.625 in |
| Shaft Extension: | 1.87 in | Assembly/Box Mounting: | F1 Only |
Speed & Load Characteristics
Speed Characteristics
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| 2/3 | 4.80 | 533.0 | 4.80 | 316.0 | 1,100 | 0.00 | 0.0 | 0.50 |
| Pull-Up | 5.00 | 556.0 | 4.20 | 276.0 | 800 | 0.00 | 0.0 | 0.50 |
| 1/3 | 5.30 | 589.0 | 3.90 | 257.0 | 500 | 0.00 | 0.0 | 0.50 |
| No Load | 0.52 | 58.0 | 0.00 | 0.0 | 1,800 | 0.00 | 0.0 | 0.50 |
| Locked-Rotor | 5.60 | 622.0 | 4.60 | 303.0 | 0 | 0.00 | 69.5 | 0.50 |
| Break-Down | 3.50 | 389.0 | 5.80 | 382.0 | 1,330 | 0.00 | 84.0 | 0.50 |
| Full Load | 0.90 | 100.0 | 1.52 | 100.0 | 1,725 | 0.00 | 0.0 | 0.50 |
Load Characteristics
| % of Rated Load | 0 % | 25 % | 50 % | 75 % | 100 % | 115 % | 125 % | 150 % |
| Current (Amps) | 0.52 | 0.55 | 0.60 | 0.70 | 0.80 | 0.95 | 1.00 | 1.10 |
| Rated Output (KW) | 0.05 | 0.15 | 0.25 | 0.35 | 0.45 | 0.55 | 0.58 | 0.70 |
| Efficiency (%) | 0.0 | 62.5 | 75.6 | 78.6 | 82.8 | 75.5 | 79.8 | 79.3 |
| Power Factor (%) | 12.1 | 34.2 | 52.3 | 62.8 | 70.6 | 72.7 | 72.8 | 79.9 |
| Speed (RPM) | 1,800 | 1,785 | 1,775 | 1,760 | 1,725 | 1,720 | 1,715 | 1,700 |
| Temp. Rise @ FL | 0.0 | 0.0 | 0.0 | 0.0 | 50.0 | 0.0 | 0.0 | 0.0 |
| Torque (ft-lbs) | 0.00 | 0.37 | 0.75 | 1.10 | 1.52 | 1.70 | 1.90 | 2.30 |
