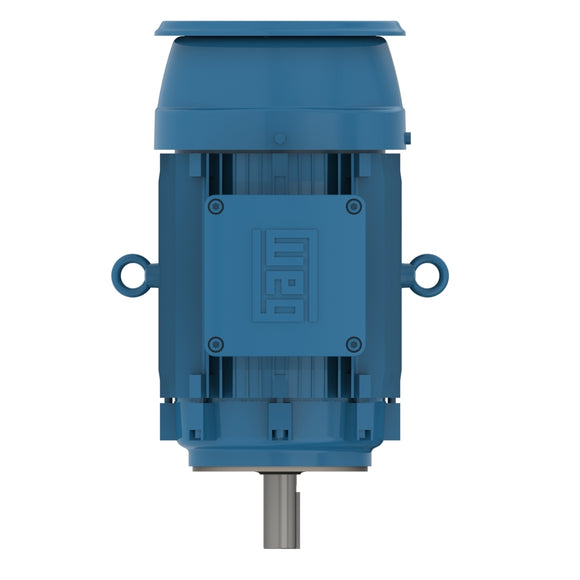

03018XT3ER286TC WEG 30HP Explosion Proof Electric Motor, 1800RPM

$4,234.62 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 03018XT3ER286TC Barcode: 7909158844524

30 Day
Return Policy

Ships Fast
in 24 hours

IC411 - TEFC, 286T Frame, 208-230/460V 3-Phase 60Hz, Footless, 14407414

Description Product Specs Manufacturer
WEG Explosion-proof motor was especially designed to operate in environments with the presence of explosive atmospheres. It has robust construction, a flame retention system with gaps between the parts carefully designed, accurate machining on the terminal box and screws with high mechanical strength. It meets the requirements of explosive atmospheres like Division I/Zone 1. All ratings meet NEMA Premium Efficiency. Motors are certified for VFD service.
Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 208-230/460 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 30 HP
Mounting Footless
Flange C
Mounting W-6
Terminal box¹ Left position
Enclosure IC411 - TEFC

Electric Motors

Frame 286TC
Output 30 HP (22 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1775 rpm
Slip 1.39 %
Rated voltage 208-230/460 V
Rated current 79.6-72.0/36.0 A
L. R. Amperes 629-569/284 A
LRC 7.9x(Code J)
No load current 25.0-29.0/14.5 A
Rated torque 87.6 ft.lb
Locked rotor torque 320 %
Breakdown torque 320 %
Locked rotor time 30s (cold) 17s (hot)
Moment of inertia (J) 5.16 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting disabled=""> W-6
Rotation¹ Both (CW and CCW)
Noise level² 68.0 dB(A)
Approx. weight³ 519 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
93.0  93.6  93.6

Power factor

50% 75% 100%
0.66  0.77  0.82
Frame 286TC
Output 30 HP (22 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1465 rpm
Slip 2.33 %
Rated voltage 380 V
Rated current 43.4 A
L. R. Amperes 278 A
LRC 6.4x(Code G)
No load current 14.5 A
Rated torque 106 ft.lb
Locked rotor torque 250 %
Breakdown torque 250 %
Locked rotor time 36s (cold) 20s (hot)
Moment of inertia (J) 5.16 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 64.0 dB(A)
Approx. weight³ 519 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full
load.

Efficiency

50% 75% 100%
93.0  92.4  91.7

Power factor

50% 75% 100%
0.71  0.80  0.84
Frame 286TC
Output 30 HP (22 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1470 rpm
Slip 2.00 %
Rated voltage 400 V
Rated current 41.4 A
L. R. Amperes 298 A
LRC 7.2x(Code H)
No load current 15.5 A
Rated torque 106 ft.lb
Locked rotor torque 280 %
Breakdown torque 280 %
Locked rotor time 36s (cold) 20s (hot)
Moment of inertia (J) 5.16 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 64.0 dB(A)
Approx. weight³ 519 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
93.0  93.0  92.4

Power factor

50% 75% 100%
0.68  0.78  0.83
Frame 286TC
Output 30 HP (22 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1475 rpm
Slip 1.67 %
Rated voltage 415 V
Rated current 40.4 A
L. R. Amperes 311 A
LRC 7.7x(Code J)
No load current 16.5 A
Rated torque 105 ft.lb
Locked rotor torque 310 %
Breakdown torque 310 %
Locked rotor time 36s (cold) 20s (hot)
Moment of inertia (J) 5.16 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 64.0 dB(A)
Approx. weight³ 519 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
92.4  93.0  92.4

Power factor

50% 75% 100%
0.66  0.77  0.82

Features

Frame Material Cast Iron
Impregnation Method Dip and Bake Polyester
Regreasing System At Drive end and Non-drive end
Main terminal box hole NPT 1 1/2"
Terminal Block Without  value="#{VAR_COMPLEMENTO.ytipo_placa_borne}" disabled="">
Shaft Locking Device Without
Drain Sinterized, Exd
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 202P (ISO 12944 - C4)
Grounding Lugs Single
Fan Cover material Cast Iron
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Winding thermal protection Thermostat - 2 wires 1 per phase 155°C
Balancing Method 1/2 Key
Drip Cover With

 Loading...

 Loading...

 Loading...

 Loading...

Bearing details

  Drive End Non Drive End
Bearing type 6311 C3  6211 C3
Sealing Retentor com mola  Lip Seal
Lubrication interval 12213 h  13608 h
Lubricant amount 18 g  11 g
Grease Type Mobil Polyrex EM

Foundation loads

Max. traction Max. compression
1184 lb  1704 lb

 Loading...

  • 208VAC
  • 230VAC
  • 460VAC
  • Electric Motor
  • 286T
  • TEFC
  • 3-Phase
  • 30HP
  • 1800RPM

WEG Electric Corporation
