| range of product |
125 A Frame EDB-EGB-EJB |
|
|---|---|---|
| product or component type |

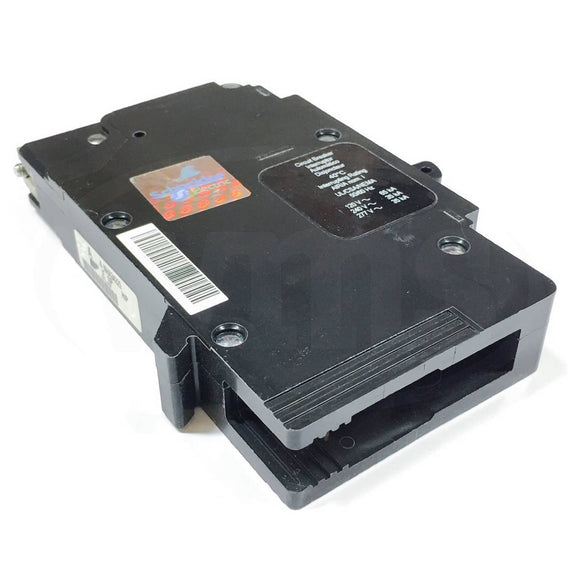

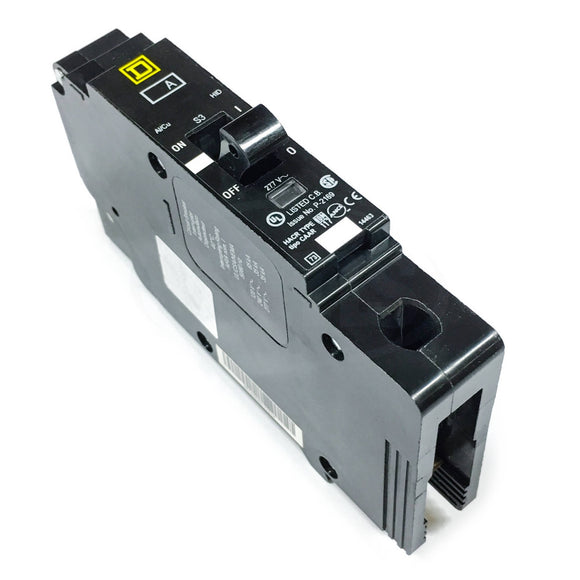

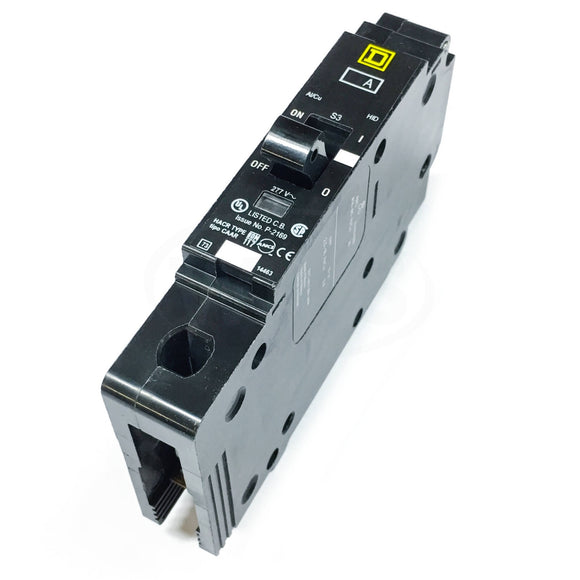

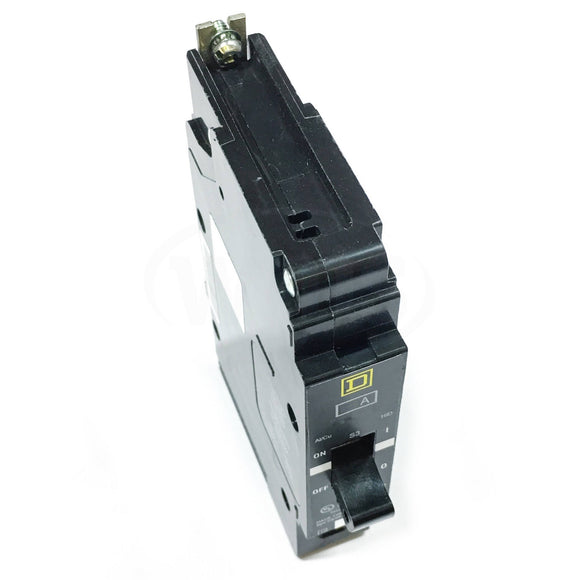

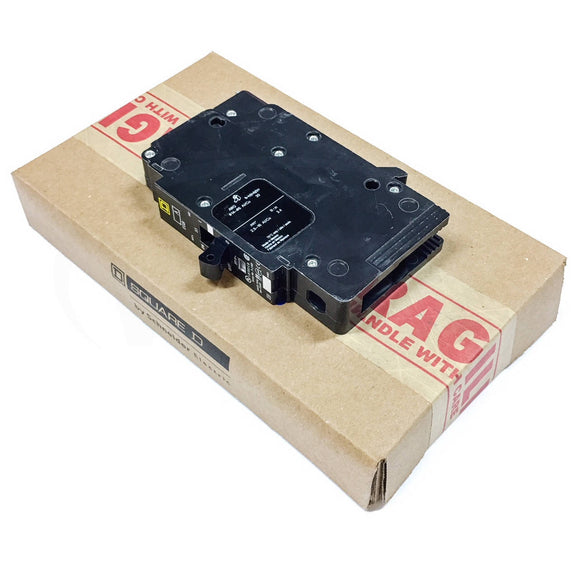

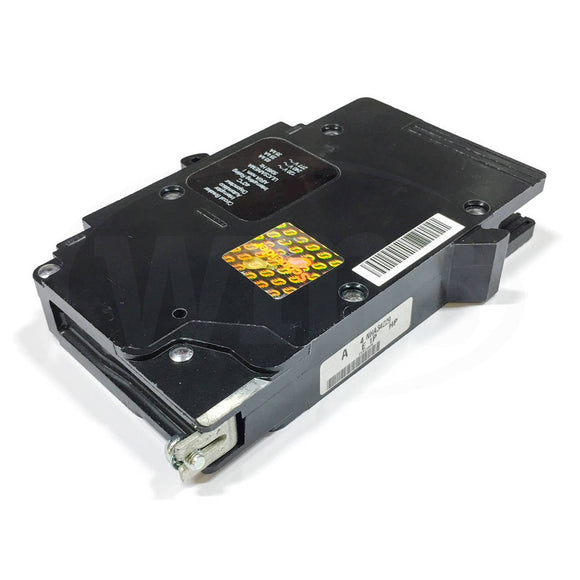

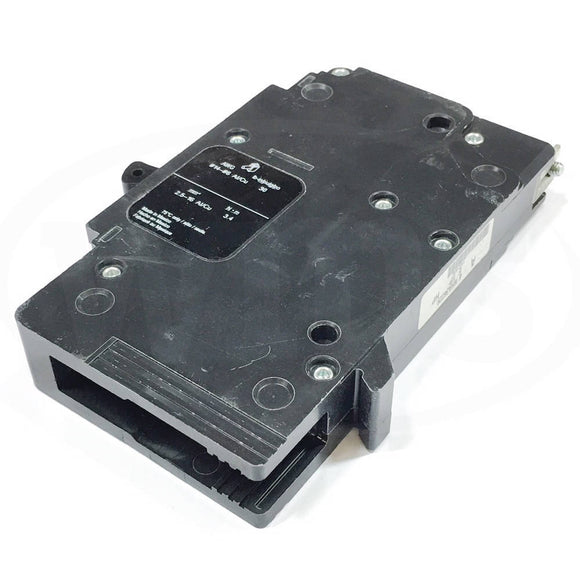

Miniature circuit-breaker |
|
| device short name |
EGB |
|
| module type |
E-Frame |
|
| trip unit rating |
875 A |
|
| Line Rated Current |
25 A |
|
|---|---|---|
| System Voltage |
277 V AC |
|
| AWG gauge |
AWG 14...AWG 6 copper AWG 12...AWG 6 aluminium |
|
| breaking capacity |
35 kA 277 V AC 35 kA 240 V AC 65 kA 120 V AC 35 kA 120/240 V AC |
|
| circuit breaker application |
HACR rated HID rated |
|
| depth |
4.05 in |
|
| electrical connection |
Lugs |
|
| height |
5.66 in |
|
| holding current |
270 A |
|
| local signalling |
Trip indicator |
|
| mounting mode |
Bolt-on |
|
| number of poles |
1 |
|
| number of spaces |
1 |
|
| number of spaces required |
1 |
|
| product destination |
Panelboard NF |
|
| product weight |
2 lb(US) |
|
| protection type |
Short-circuit Overload |
|
| width |
0.98 in |
|
| trip unit technology |
Thermal-magnetic |
|
| breaking capacity code |
G |
|
| product certifications |
cULus |
|
|---|---|---|
| ambient air temperature for operation |
104 °F (40 °C) |
|
| Category |
00936 - EGB CIRCUIT BREAKERS |
|
|---|---|---|
| Discount Schedule |
DE2 |
|
| GTIN |
00785901335177 |
|
| Nbr. of units in pkg. |
1 |
|
| Package weight(Lbs) |
1.3500000000000001 |
|
| Returnability |
Y |
|
| Country of origin |
MX |
|
