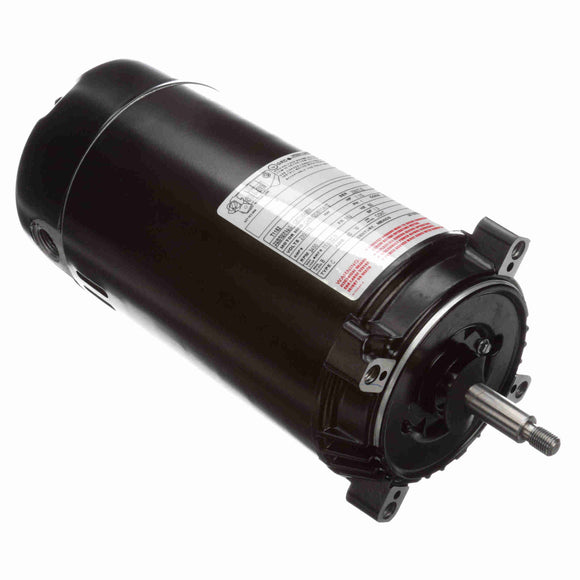

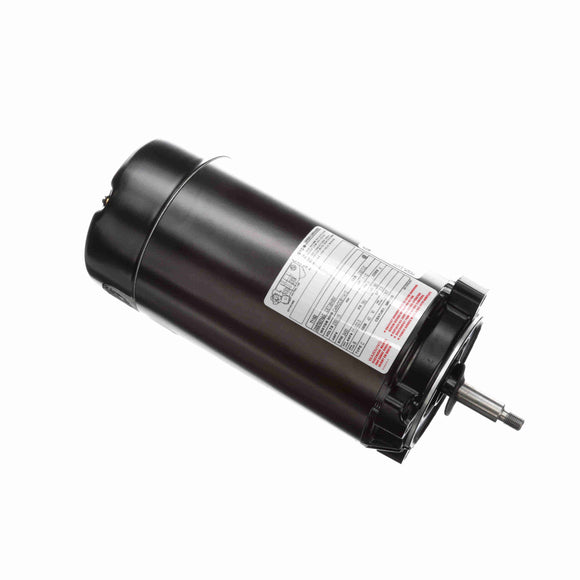

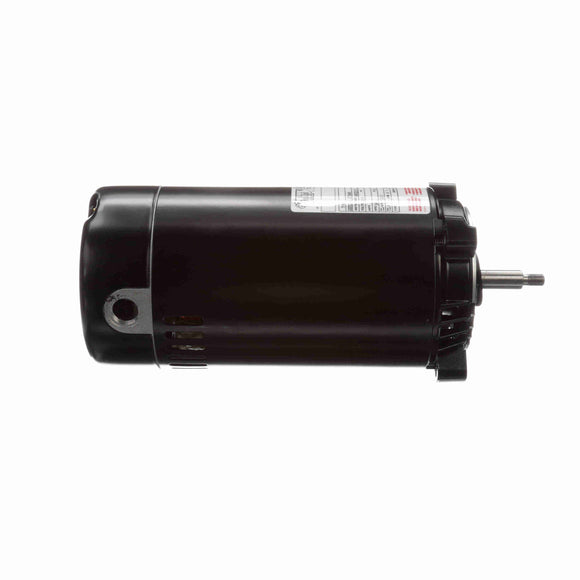

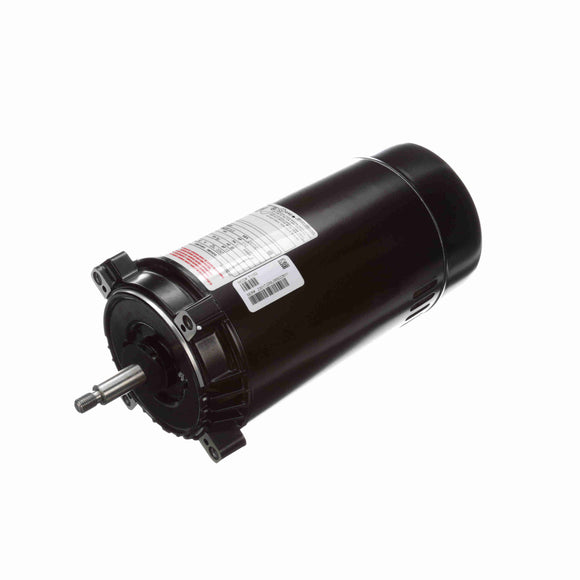

T1152 Century 1.5HP Pool/Spa Pump Electric Motor, 3450 RPM-1
T1152 Century 1.5HP Pool/Spa Pump Electric Motor, 3450 RPM-2
T1152 Century 1.5HP Pool/Spa Pump Electric Motor, 3450 RPM-3

T1152 Century 1.5HP Pool/Spa Pump Electric Motor, 3450 RPM

$1,380.00

Shipping calculated at checkout

Century Electric Motor (Regal Rexnord) SKU: T1152 Barcode: 786674032072

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Features

Features
  • Internally mounted capacitor
  • Sealed switch design
  • Threaded shaft

General Specifications

General Specifications
Model : Catalog No : T1152
Part Description : 1.5,3450,ODP,56J,1/60/230/115 Category : Jet Pump
Stock : Yes

Nameplate Specifications

Nameplate Specifications
Output HP : 1 1/2 Hp Output KW : 1.1 kW
Frequency : 60 Hz Voltage : 230/115 V
Current : 11.0/22.0 A Speed : 3450 rpm
Service Factor : 1.3 Phase : 1
Duty : Continuous Insulation Class : B
Frame : 56J Enclosure : Open Drip Proof
Overload Protector : Automatic Ambient Temperature : 40 °C
UL : No CSA : Y
CE : N

Technical Specifications

Technical Specifications
Electrical Type : Capacitor Start Induction Run Starting Method : Across The Line
Poles : 2 Rotation : Counterclockwise Pump End
Mounting : Round Drive End Bearing : Ball
Opp Drive End Bearing : Ball Frame Material : Rolled Steel
Shaft Type : Threaded Overall Length : 13.87 in
Frame Length : 8.06 in Shaft Diameter : 0.625 in
Shaft Extension : 2.433 in UPC : 786674032072
Weight : 27.00 LB
