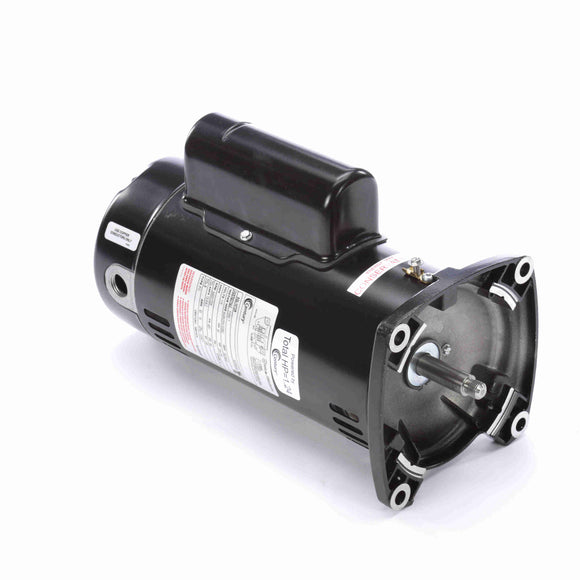

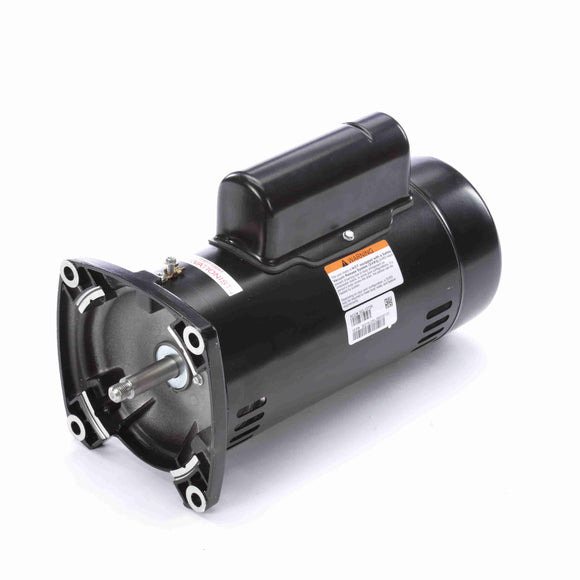

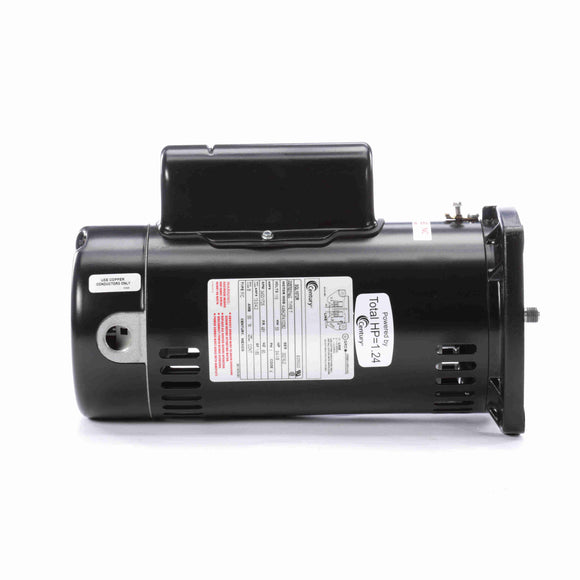

SQL1072R Century 0.75/0.13HP Pool Pump Electric Motor, 3600RPM

$586.97

Shipping calculated at checkout

Century Electric Motor (Regal Rexnord) SKU: SQL1072R Barcode: 786674031211

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Features

  • Two Speed
  • All Copper Windings
  • Energy Efficient
  • 50°C Ambient
  • Capacitor Start Low Speed
  • PSC High Speed
  • Open Dripproof
  • Meets California Energy Commission Appliance Regulations 2008
  • UL 1081 Design
  • 303 Stainless Steel Shaft

General Specifications

UPC: 786674031211 Weight: 26.00 LB
Packaged Length: 16 IN Packaged Width: 9.5 IN
Packaged Height: 11 IN

Nameplate Specifications

Output HP: 3/4-1/8 Hp Output KW: 0.56 kW
Frequency: 60 Hz Voltage: 115 V
Current: 13.0/4.2 A Speed: 3450/1725 rpm
Service Factor: 1.65 Phase: 1
Duty: Continuous Insulation Class: B
Frame: 48Y Enclosure: Open Drip Proof
Thermal Protection: Automatic Ambient Temperature: 50 °C
UL: Recognized CSA: Y

Technical Specifications

Electrical Type: Psc Low Speed, Cap Start High Speed Poles: 2
Rotation: Counterclockwise Pump End Mounting: Square Flange
Motor Orientation: Horizontal Drive End Bearing: BALL
Opp Drive End Bearing: BALL Frame Material: Rolled Steel
Shaft Type: Threaded Overall Length: 13.32 in
Frame Length: 9.44 in Shaft Diameter: 0.625 in
Shaft Extension: 0.906 in

Speed & Load Characteristics
