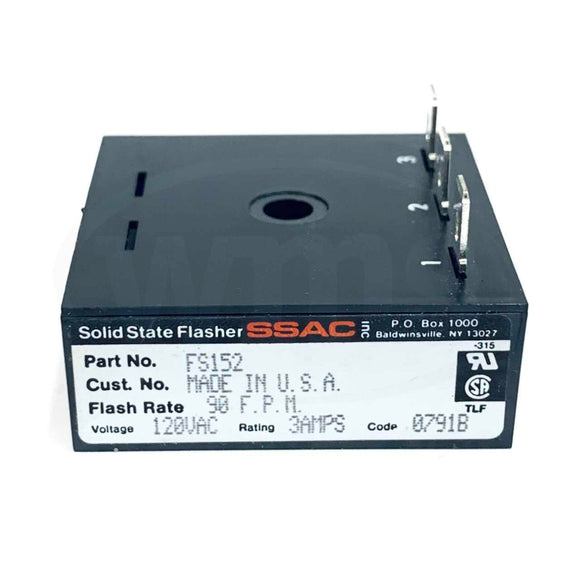

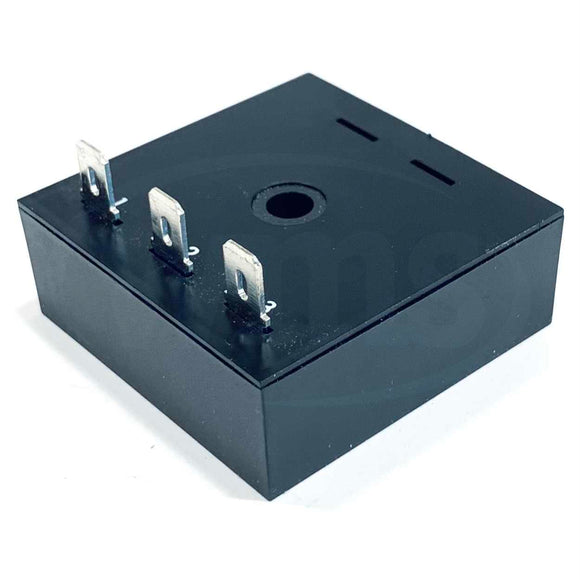

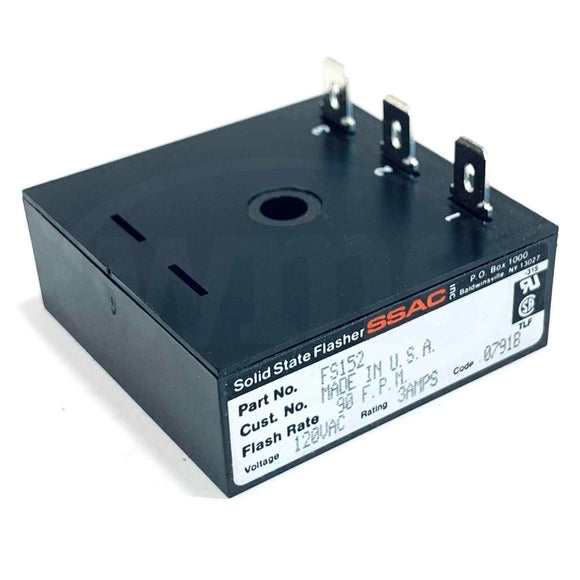

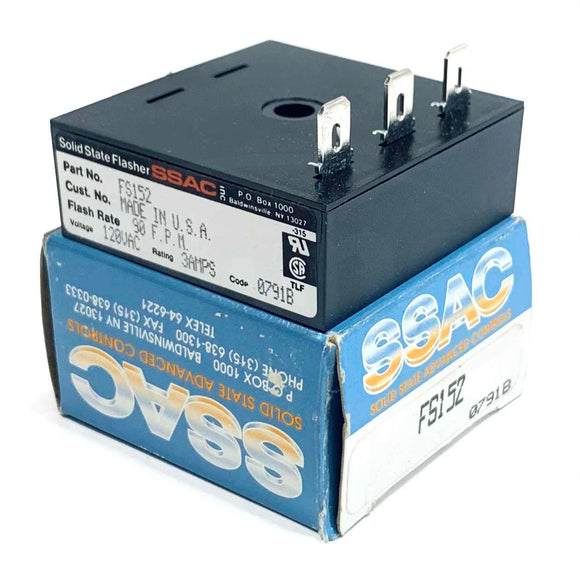

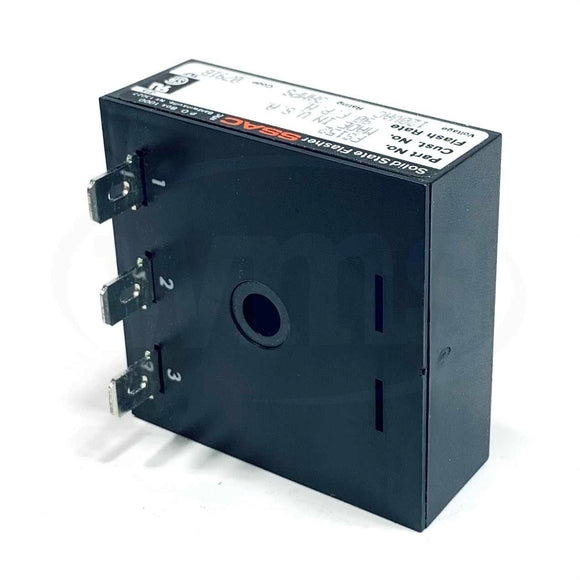

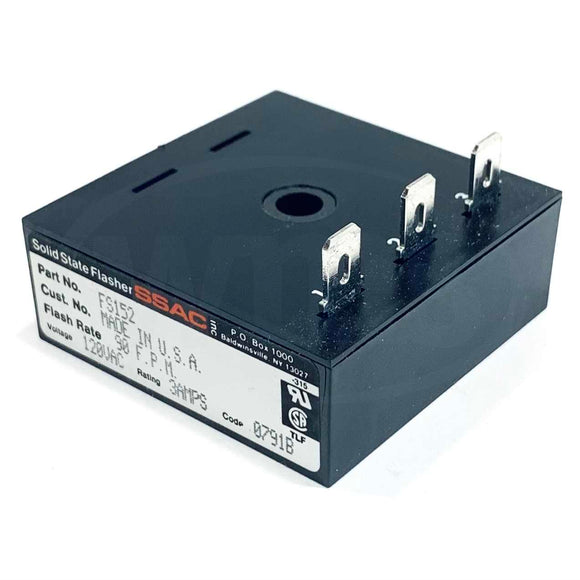

SSAC FS152 Solid State Flasher, 120VAC 3A, 90 FPM
The FS100 Series (medium amp) may be used to control inductive, incandescent, or resistive loads. Input voltages is 120VAC. Factory fixed flash rate of 90 FPM.Encapsulation provides protection against shock, vibration, and humidity. This group of solid-state flashers has proven reliability with years of use throughout the world. Operation Upon application of input voltage, the T2 OFF time begins. At the end of the OFF time, the T1 ON time begins and the load energizes. At the end of T1, T2 begins and the load de-energizes. This cycle repeats until input voltage is removed. Reset: Removing input voltage resets the output and the sequence to T2. For more information see: Appendix A, page 164 for Flasher (OFF First) function. Appendix B, page, 165, Figure 1 for dimensional drawing. Appendix C, page168, Figure 3 for connection diagram.
Technical Data
Operation.......................... OFF/ON solid-state flasher (continuous duty)
Flash Rate . . . . . . . . . . . . . . . . . . . . . . . . . Fixed at 90 FPM ±10%
Custom Flash Rates . . . . . . . . . . . . . . . . . 10 - 300 FPM ±10%
ON/OFF Ratio . . . . . . . . . . . . . . . . . . . . . ? 50%
Input
Voltage/Frequency . . . . . . . . . . . . . . . . . 24, 120, or 230VAC ±15%/50/60 Hz
Output
Load Type . . . . . . . . . . . . . . . . . . . . . . . . . Inductive, resistive, or incandescent
Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fullwave AC, solid state, SPST
Maximum Load Rating . . . . . . . . . . . . . . 3A steady state
Inrush . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 times steady state current
Mechanical
Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . Surface mount with one #10 (M5 x 0.8) screw
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . 2 x 2 x 1.21 in. (50.8 x 50.8 x 30.7 mm)
Termination . . . . . . . . . . . . . . . . . . . . . . . . 0.25 in. (6 .35 mm) male quick connect terminals
Protection
Circuitry........................... Encapsulated
Environmental
Operating / Storage Temperature . . . . . -20° to 60°C / -40° to 85°C
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . ? 2.2 oz (62 g)
