BK3616 3.75" X 1" BK Single Groove V-Pulley-1
BK3616 3.75" X 1" BK Single Groove V-Pulley-2
BK3616 3.75" X 1" BK Single Groove V-Pulley-3

BK3616 3.75" X 1" BK Single Groove V-Pulley

$12.99 USD

Shipping calculated at checkout

Unbranded SKU: BK3616

30 Day
Return Policy

Ships Fast
in 24 hours

2

In stock!

Specifications

• Manufactured in high quality grey cast iron
• Finished bore with H7 precision
• Keyway and set screws in accordance with USAS. B. 17.1-1967
• Individually packaged
Brand Various
Part Number BK3616
BK36X1
Bore 1"
Sheave Cross Section BK
Outside Diameter 3.75"
Pulley Diameter “A” 3.00"
Pulley Diameter “B” 3.40"
Type 2
Pulley Width “F” 7/8"
Dimension “L” 1-5/32"
Dimension “P” 13/32"
Recess Depth “C” 1/8"
Approximate Weight 1.5 lbs

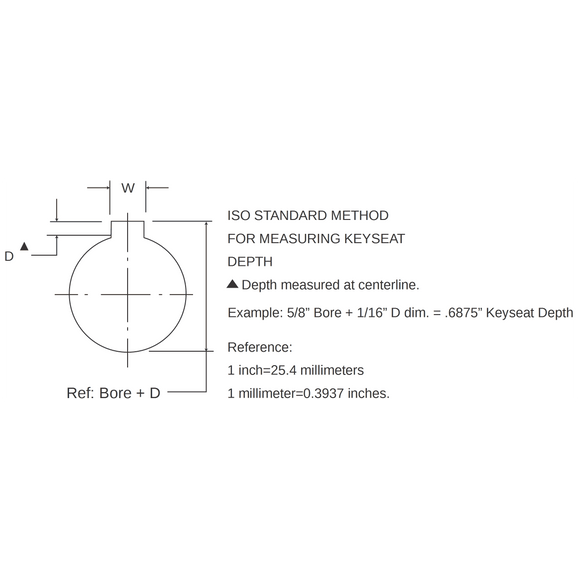

Keyseat (WxD) 1/4" x 1/8"
Set Screw(s) Yes, 2
Country of Origin Various
