AK1708 1.75" X 1/2" AK Single Groove V-Pulley-1
AK1708 1.75" X 1/2" AK Single Groove V-Pulley-2

AK1708 1.75" X 1/2" AK Single Groove V-Pulley

$4.74 USD

Shipping calculated at checkout

Unbranded SKU: AK1708

30 Day
Return Policy

Ships Fast
in 24 hours

2

In stock!

Specifications

• Manufactured in high quality grey cast iron
• Finished bore with H7 precision
• Keyway and set screws in accordance with USAS. B. 17.1-1967
• Individually packaged
Brand Various
Part Number AK178
AK1708
AK17X1/2
Bore 1/2"
Sheave Cross Section AK
Outside Diameter 1.75"

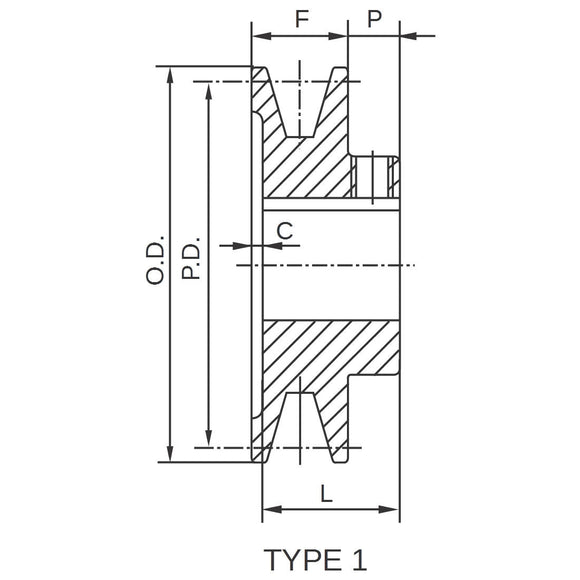

Pulley Diameter “A” 1.50"
Pulley Diameter “3L” 1.16"
Type 1
Pulley Width “F” 21/32"
Dimension “L” 15/16"
Dimension “P” 7/16"
Recess Depth “C” 5/32"
Approximate Weight 0.2 lbs
Keyseat (WxD) None
Set Screw(s) Yes, 2
Country of Origin Various
