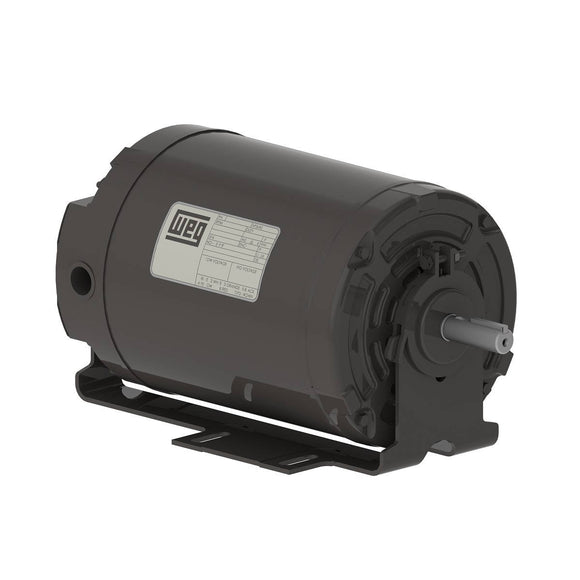

.3318ES1BRBPFC48 WEG 1/3HP Farm Duty Pountry Fan Electric Motor, 1800RPM

$263.25 $325.00 Save $61.75

Shipping calculated at checkout

WEG Electric Corporation SKU: .3318ES1BRBPFC48 Barcode: 7891327226876

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Frame C48
Output 0.33 HP (0.25 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1740 rpm
Slip 3.33 %
Rated voltage 115/208-230 V
Rated current 6.00/2.90-3.00 A
L. R. Amperes 33.0/16.0-16.5 A
LRC 5.5x(Code N)
No load current 5.40/2.33-2.70 A
Rated torque 0.983 ft.lb
Locked rotor torque 130 %
Breakdown torque 280 %
Locked rotor time 10s (cold) 6s (hot)
Moment of inertia (J) 0.0399 sq.ft.lb
Insulation Class B
Temperature rise 80 K
Service factor 1.25 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP44
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Approx. weight³ 24.1 lb
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
51.0  59.0  64.0

Power factor

50% 75% 100%
0.38  0.46  0.56

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Shaft Material SAE 1040/45 Carbon Steel
Painting

Grounding Lugs Single
Tropicalized Painting Without
Fan material Without fan
Bearing cap No-Without Bearing Cap
Balancing Method Not Balanced
Drip Cover Without
Shaft End Key
Resilient Base With

 Loading...

 Loading...

Bearing details

  Drive End Non Drive End
Bearing type 6203 ZZ   6202 ZZ
Sealing Without Bearing Seal  Without Bearing Seal
Lubrication interval -  -
Lubricant amount -  -
Grease Type Mobil Polyrex EM

Foundation loads

Max. traction Max. compression
19 lb  43 lb
