2BK3014 3.15" x 7/8" BK Double Groove V-Pulley

Specifications

• Manufactured in high quality grey cast iron
• Finished bore with H7 precision
• Keyway and set screws in accordance with USAS. B. 17.1-1967
• Individually packaged

Brand	Various
Part Number	2BK3014 2BK30X7/8
Bore Size	7/8"

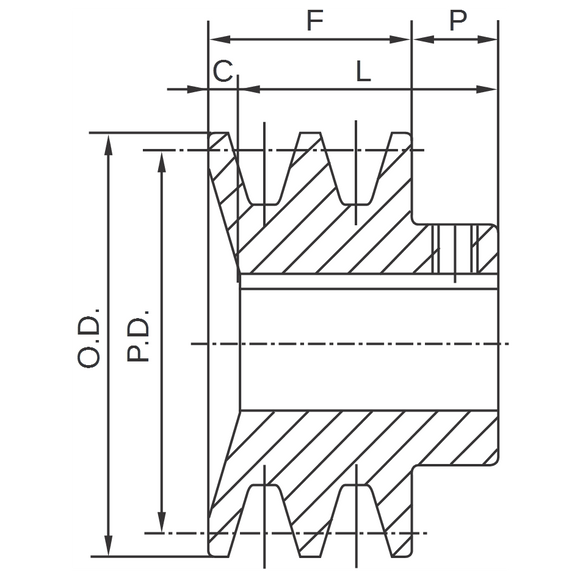

Outside Diameter	3.15"
Pulley Diameter "A"	2.40"
Pulley Diameter "B"	2.80"
Type	1D
Dimension "F"	1-3/4"
Dimension "L"	1-31/32"
Dimension "P"	15/32"
Dimension "C"	1/4"
Approximate Weight	2.3 lbs
UPC
Country of Origin
