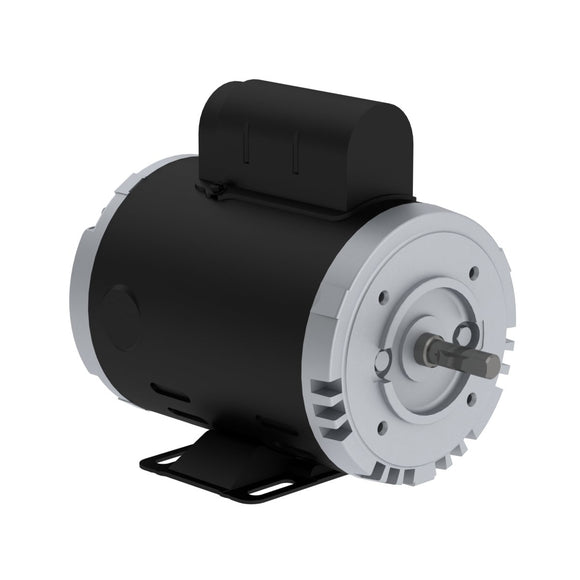

.1236OS1B48CH-S WEG 0.12HP General Purpose Electric Motor, 3600RPM

$183.06 $226.00 Save $42.94

Shipping calculated at checkout

WEG Electric Corporation SKU: .1236OS1B48CH-S Barcode: 7909492094326

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Frame 48
Output 0.12 HP (0.09 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3500 rpm
Slip 2.78 %
Rated voltage 115/208-230 V
Rated current 2.48/1.37-1.24 A
L. R. Amperes 15.9/8.77-7.94 A
LRC 6.4x(Code R)
No load current 1.80/0.776-0.900 A
Rated torque 0.180 ft.lb
Locked rotor torque 300 %
Breakdown torque 300 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 0.0126 sq.ft.lb
Design N
Insulation Class F
Temperature rise 80 K
Service factor 1.40 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 14.3 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
32.0  40.0  44.0

Power factor

50% 75% 100%
0.60  0.67  0.72

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Shaft Material SAE 1040/45 Carbon Steel
Painting Only primer
Grounding Lugs Single
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Balancing Method Not Balanced
Drip Cover Without
Resilient Base Without
Overload protector (phenolic) Without overload protector
