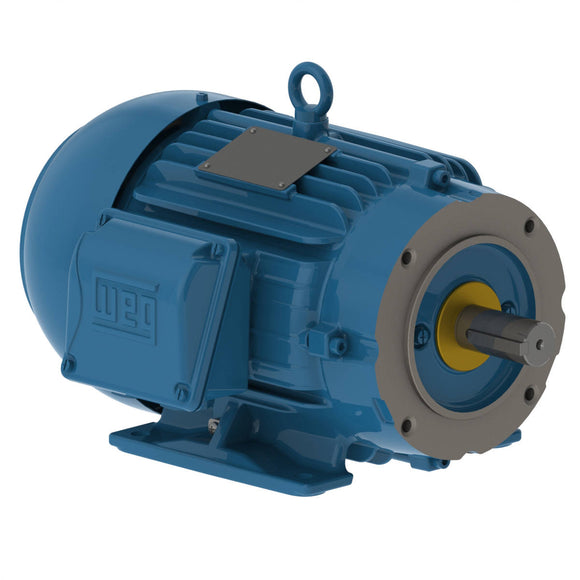

00736ST3QIE213TC-W22 WEG 7.5HP Severe Duty Electric Motor, 3600RPM

$1,483.11 USD $1,831.00 USD Save $347.89 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 00736ST3QIE213TC-W22 Barcode: 7894171293551

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Frame 213/5TC
Output 7.5 HP (5.5 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3520 rpm
Slip 2.22 %
Rated voltage 460 V
Rated current 8.76 A
L. R. Amperes 63.1 A
LRC 7.2x(Code H)
No load current 2.70 A
Rated torque 11.2 ft.lb
Locked rotor torque 210 %
Breakdown torque 300 %
Locked rotor time 39s (cold) 22s (hot)
Moment of inertia (J) 0.4665 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 68.0 dB(A)
Approx. weight³ 155 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
87.5  89.5  89.5

Power factor

50% 75% 100%
0.75  0.84  0.88
Frame 213/5TC
Output 5 HP (3.7 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2940 rpm
Slip 2.00 %
Rated voltage 380 V
Rated current 7.24 A
L. R. Amperes 59.4 A
LRC 8.2x(Code J)
No load current 2.84 A
Rated torque 8.93 ft.lb
Locked rotor torque 260 %
Breakdown torque 380 %
Locked rotor time 54s (cold) 30s (hot)
Moment of inertia (J) 0.4665 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 155 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
86.7  88.2  88.2

Power factor

50% 75% 100%
0.74  0.83  0.88
Frame 213/5TC
Output 5 HP (3.7 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2950 rpm
Slip 1.67 %
Rated voltage 400 V
Rated current 7.03 A
L. R. Amperes 64.0 A
LRC 9.1x(Code K)
No load current 3.05 A
Rated torque 8.90 ft.lb
Locked rotor torque 290 %
Breakdown torque 420 %
Locked rotor time 54s (cold) 30s (hot)
Moment of inertia (J) 0.4665 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 155 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
86.4  88.3  88.3

Power factor

50% 75% 100%
0.70  0.81  0.86
Frame 213/5TC
Output 5 HP (3.7 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2952 rpm
Slip 1.60 %
Rated voltage 415 V
Rated current 6.92 A
L. R. Amperes 67.1 A
LRC 9.7x(Code L)
No load current 3.22 A
Rated torque 8.89 ft.lb
Locked rotor torque 320 %
Breakdown torque 450 %
Locked rotor time 54s (cold) 30s (hot)
Moment of inertia (J) 0.4665 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 155 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
86.1  88.5  88.5

Power factor

50% 75% 100%
0.67  0.78  0.84
Frame 213/5TC
Output 7.5 HP (5.5 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2895 rpm
Slip 3.50 %
Rated voltage 380 V
Rated current 10.6 A
L. R. Amperes 60.4 A
LRC 5.7x(Code F)
No load current 2.70 A
Rated torque 13.6 ft.lb
Locked rotor torque 170 %
Breakdown torque 229 %
Locked rotor time 36s (cold) 20s (hot)
Moment of inertia (J) 0.4665 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 155 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
88.5  88.5  87.5

Power factor

50% 75% 100%
0.80  0.87  0.90
Frame 213/5TC
Output 7.5 HP (5.5 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2905 rpm
Slip 3.17 %
Rated voltage 400 V
Rated current 10.2 A
L. R. Amperes 65.3 A
LRC 6.4x(Code G)
No load current 2.90 A
Rated torque 13.6 ft.lb
Locked rotor torque 190 %
Breakdown torque 260 %
Locked rotor time 36s (cold) 20s (hot)
Moment of inertia (J) 0.4665 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 155 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
87.5  88.5  87.5

Power factor

50% 75% 100%
0.77  0.86  0.89
Frame 213/5TC
Output 7.5 HP (5.5 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2915 rpm
Slip 2.83 %
Rated voltage 415 V
Rated current 9.82 A
L. R. Amperes 67.8 A
LRC 6.9x(Code H)
No load current 3.30 A
Rated torque 13.5 ft.lb
Locked rotor torque 210 %
Breakdown torque 280 %
Locked rotor time 36s (cold) 20s (hot)
Moment of inertia (J) 0.4665 sq.ft.lb
Design B
Insulation Class F
