Description

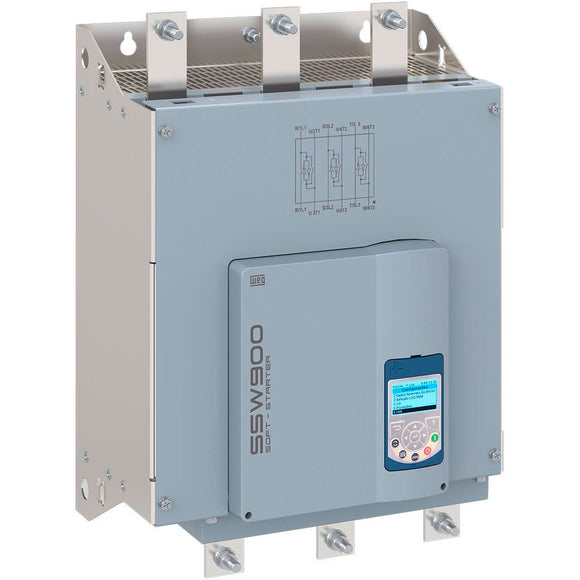

The SSW900 is the right choice for a complete motor protection and start/stop control. The well-structured menu interface allows adjustments and configurations with online parameter help right on the HMI, in addition to event logs with date and time and setup assistant. The SSW900 also has built-in bypass, which contributes to extending the lifetime of the soft starter, optimizing space and reducing heat dissipation inside electric panels.
Applications
- Pumps
- Fans/Exhausters/Blowers
- Mixers
- Compressors
- Conveyors
- Centrifuges
- Rock crushers
- Grinders
- Rotary ovens
- Ball and Hammer Mills
- Wood chippers
- Dryers
- Roller tables
Features
- Built-in rated (AC1) bypass contactors for all models.
- Conformal coated circuit boards.
- Detachable Graphic HMI with USB port, with built-in Bluetooth and copy function.
- Oriented start-up and online help.
- Real time clock with event log.
- 2 independent slots to connect plug-in modules
- Voltage ramp, Current Limit, Pump Control, Torque control, Current Ramp start modes.
- Inputs and outputs with programmable functions (5 DIs, 3 ROs, 1 AO & 1 Motor PTC Input as standard)
- Communication Options: RS-485 (Modbus RTU), CANopen, DeviceNet, Profibus DP, Ethernet/IP, Modbus TCP/IP, Profinet IO.
- SoftPLC Built in.
- Integral motor thermal protection.
- Bluetooth/USB Connectivity
Technical Specifications
| Input Voltage | 220 to 575VAC (+15% to +10%) 187 to 632VAC (Standard and Delta Connections) |
| Control Voltage | 10A to 200A Models: 93.5 to 264VAC 255 to 1400A Models: 93.5 to 143VAC or 176.8 to 264VAC |
| Frequency | 50 to 60Hz (+/-10%) |
| Power Consumption | 10A to 200A Models: 32VA 255A to 412A Models: 70VA Continuous, 700VA Additional when internal bypass closed 480A to 670A Models: 90VA Continuous, 700VA Additional when internal bypass closed 820A to 950A Models: 140VA Continuous, 800VA Additional when internal bypass closed 1100A to 1400A Models: 180VA Continuous, 850VA Additional when internal bypass closed |
| Digital Inputs | 5 isolated digital inputs Minimum high level: 18 V dc Minimum low level: 3 V dc Maximum voltage: 30 V dc Input current: 11 mA @ 24 V dc Programmable functions |
| Motor Thermistor Inputs | 1 input for thermistor Actuation: 3.9 kO, release: 1.6 kO Minimum resistance 100 O |
| Digital Outputs | 2 relays with NO contacts, 240 V ac, 1 A, programmable functions 1 relay with NO/NC contact, 240 V ac, 1 A, programmable functions |
| Analog Outputs | 1 analog output 0 to 10 V or 0/4 to 20 mA configurable by software |
| HMI | 12 keys: run/stop, forward/reverse, Jog, local/remote, navigation buttons: left, right, up, down, enter, back and help Graphic LCD display Allows monitoring/changing all SSW parameters Option for external mounting, panel door USB for firmware updates or communication with the product Bluetooth connection to monitor and change SSW parameters using smart phone App |
| PC Programming | USB standard rev. 2.0 (basic speed) Mini B-type USB plug Interconnecting cable: shielded USB cable, standard host/device shielded USB cable |
| Safety Standards | UL508 - industrial control equipment EN60947-4-2, LVD 2006/95/EC - low-voltage switchgear and controlgear |
| Electromagnetic Compatibility Standards | CISPR 11 - industrial, scientific and medical (ISM) radio-frequency equipment - electromagnetic disturbance characteristics - limits and methods of measurement EN 61000-4-2 - electromagnetic compatibility (EMC) - part 4: testing and measurement techniques - section 2: electrostatic discharge immunity test EN 61000-4-3 - electromagnetic compatibility (EMC) - part 4: testing and measurement techniques - section 3: radiated, radio-frequency, electromagnetic field immunity test EN 61000-4-4 - electromagnetic compatibility (EMC) - part 4: testing and measurement techniques - section 4: electrical fast transient/burst immunity test EN 61000-4-5 - electromagnetic compatibility (EMC) - part 4: testing and measurement techniques - section 5: surge immunity test EN 61000-4-6 - electromagnetic compatibility (EMC) - part 4: testing and measurement techniques - section 6: immunity to conducted disturbances, induced by radio-frequency fields EN 61000-4-11 - electromagnetic compatibility (EMC) - part 4: testing and measurement techniques - section 11: voltage dips, short interruptions and voltage variations immunity tests |
| Mechanical Construction Standards | EN 60529 - degrees of protection provided by enclosures (IP code) UL50 - enclosures for electrical equipment IEC 60721-3-3 - classification of environmental conditions |
About This Product
Several Benefits in a Single Product
Combining convenience and innovation, the SSW900 is the right choice for complete motor protection and start/stop control. Developed for industrial or professional use, the new line of soft-starters allows easy and simple access to the configuration settings and data. Using a menu structure, the new interface of the SSW900 line presents an unprecedented experience of interactivity with the user, allowing adjustments and configurations with online parameter help right on the HMI, in addition to event logs with date and time and setup assistant. The equipment also has built-in bypass, which contributes to extending the useful life of the drive, optimizing space and reducing heat dissipation in electric panels.
The SSW900 soft-starters feature a microprocessor, are totally digital, incorporate state-of-the-art technology and are designed to ensure the best performance in the start and stop of induction motors, being a complete, low-cost solution. The operating interface also enables easy parameter setting, facilitating the start-up and operation. In addition, the built-in Pump Control function enables effective pump control, thus preventing water hammer, and the torque control function enables accelerations and decelerations with linear speed ramps.
Applications
Centrifugal, reciprocating pumps (sanitation, irrigation and oil), fans, exhausters, blowers, air compressors, refrigeration (screw and piston), mixers, aerators, centrifuges, rock crushers, grinders, woodchippers, paper refiners, rotary ovens, wood saws and planes, ball and hammer mills and load conveyors.
Benefits
- Built-in bypass, providing size reduction and energy savings
- Ambient temperature up to 55°C without current derating
- Possibility of standard connection (3 wires) or motor inside delta connection (6 wires)
- Inputs and outputs with programmable functions and quick connect terminals
- Different control methods via extremely high-performance algorithms, totally flexible, to meet the needs of any motor start and stop application needs
- Pump control function for smart control of pumping systems
- Advanced techniques to detect faults in the power supply and connections, enabling the user to choose the protection actuation between fault or alarm for full motor protection
- Fire mode (emergency start)
- Oriented start-up
- WPS: free software to program both soft-starter and SoftPLC
- 2 independent slots to connect plug-in modules
- Real time clock
- Fault and alarm log saved with time and date by the RTC
- Exportation of the WPS history to csv file
- Optional varnishing of the standard 3C2 or 3C3 boards, according to IEC60721-3-3
Smart interface
- Modern, flexible and easy to use
- Customizable initial screens
- Monitoring of the variables in graphical mode
- Detachable HMI with USB port
- Copy and download of parameters via HMI
- Parameter help on the HMI
- Four selectable languages
Dimensions
Links
WEG SSW900 Brochure (PDF, 2 Pages, 1.04MB) WEG WPS Programming Software (EXE, 335MB)
WEG WPS v2.5x Software User Manual (PDF, 1848 Pages, 18.5MB) WEG SSW900 Soft-Starter Quick Installation Guide (PDF, 2 Pages, 1.64MB) WEG SSW900 Soft-Starter Quick References (PDF, 28 Pages, 169KB)
