Description :

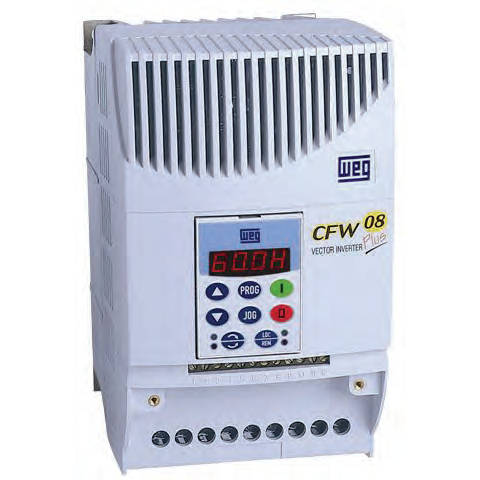

The WEG CFW08 series of drives feature the compact size of a microdrive with the full functionality of much larger drives. From extensive programmable control features to flexible mounting and display options, the CFW08 has everything one needs in a small, reliable drive package.
Overview :
| Brand | WEG |
|---|---|
| Catalog Number | CFW080030THN1A1Z |
| Input Power | Three Phase - 575V |
| Motor | 2 HP @ 575 V |
| Nominal Drive AMPS | 3 |
| Braking Transistor | Yes |
| Frame Size | 6 |
| Dimensions (H x W x D) | 8.0” x 5.6“ x 6.5“ |
| Approximate Shipping Weight | 6 lbs |
Standard Features :
- V/Hz and Sensorless Vector Control
- 150% current overload capacity
- 16 bit DSP controlled PWM output
- 2.5 / 5 / 10 / 15 kHz adjustable swiching frequency
- Four isolated programmable digital inputs
- Two programmable relay outputs
- Two isolated programmable analog inputs
- Protective features: Over current, motor overload, drive over temperature, output phase-to-phase and phase-to-ground short circuit, DC bus over and under voltage and external fault
- Control features: Linear and "S" ramp acceleration and deceleration, local/remote control, DC braking, torque boost, motor slip compensation, electronic pot, preset speeds, adjustable V/Hz profile, maximum and minimum adjustable frequency limits, two skip frequencies, adjustable output current limit, JOG, ride-thru, flying start and PID regulator.
- Display readings: Motor speed, frequency, voltage, current, last fault, heatsink temperature and drive status
- Ambient: 32ºF (0ºC) to 104ºF (40ºC), 3300ft (1000m) altitude,
Technical Data :
| Power Supply | Three Phase 575V |
|---|---|
| Frequency | 50 / 60 Hz +/-2 Hz |
| Cos (Displacement Power Factor) | Greater than 0.98 |
| Enclosure | NEMA 1 |
| Control Modes | V/Hz Sensorless Voltage Vector |
| Processor | 16 bit DSP |
| Power Output | Sinusoidal PWM (Space Vector Modulation) IGBT Transistors 2.5, 5, 10 or 15kHz Switching Frequency |
| Frequency Range | 0-300Hz |
| Overload Capacity | 150% during 60 seconds every 10 minutes |
| Control Inputs | 4 programmable isolated digital inputes, NPN or 24VDC logic (PNP) 2 x programmable differential analog inputs, programmable for current or voltage with 0.25% linearity error and can be set as DI or as PTC input |
| Control Outputs | 2 programmable relay outputs, one NO (Form A) and on NC (Form B): 250V /0.5A 1x outputs with independent NO and NC at the same common 1x output, programmable for voltage (0-10v) or current (0-20mA or 4-20mA) and with 0.25% linearity error |
| Ambient Temperature | 0-104°F (40°C) up to 122°F (50°C) with 2% /1.8°F (1°C) output current derating |
| Humidity | 5-90% Non Condensing |
| Altitute | 0-3300ft (1000m) up to 13,200ft (4000m) with 10% /3300ft (1000m) output derating |
| Keypad | 4 Digit display 2 indicator LEDs 8 keys |
| Mounting | Screws or optional DIN rail mount |
