Description

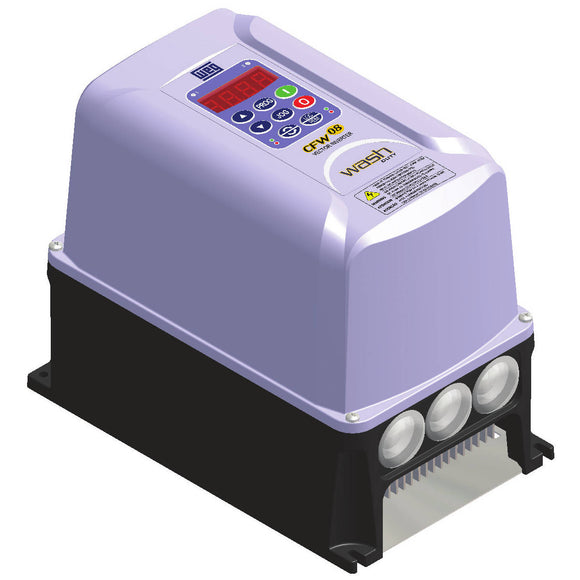

The WEG CFW08 series of drives feature the compact size of a microdrive with the full functionality of much larger drives. From extensive programmable control features to flexible mounting and display options, the CFW08 has everything one needs in a small, reliable drive package.
The WEG CFW08 WASH Series is a redesign of our successful uline VFDs. Engineering improvements have produced one of the most compact and full featured microdrives in the marketplace.
Outstanding features and options in a NEMA 4 enclosure allow the CFW08 WASH to be successfully used in a large variety of washdown applications.
Overview
| Brand | WEG |
|---|---|
| Catalog Number | CFW080017THN4A1Z |
| Input Power | Three Phase - 575V |
| Motor | 1 HP @ 575 V |
| Nominal Drive AMPS | 1.7 |
| Braking Transistor | Yes |
| Frame Size | B |
| Dimensions (H x W x D) | 13.4” x 8.5“ x 8.5“ |
| Approximate Shipping Weight | 18 lbs |
| Enclosure | NEMA 4X |
| UPC | 7894171787081 |
Standard Features
- V/Hz and Sensorless Vector Control
- 150% current overload capacity
- 16 bit DSP controlled PWM output
- 2.5 / 5 / 10 / 15 kHz adjustable swiching frequency
- Four isolated programmable digital inputs
- Two programmable relay outputs (1NO, 1NC, 240VAC 0.5 Amp
- Two isolated programmable analog inputs (0-10V, 0/4-20mA)
- Protective features:
Over current
motor overload
drive over temperature
output phase-to-phase and phase-to-ground short circuit
DC bus over and under voltage
external fault - Control features:
Linear and "S" ramp acceleration and deceleration
local/remote control
DC braking
torque boost
motor slip compensation
electronic pot
preset speeds
adjustable V/Hz profile
maximum and minimum adjustable frequency limits
two skip frequencies
adjustable output current limit
JOG, ride-thru
flying start and PID regulator - Display readings:
Motor speed
frequency
voltage
current
last fault
heatsink temperature
drive status - Ambient: 32ºF (0ºC) to 104ºF (40ºC), 3300ft (1000m) altitude, 90% Humidity, Non-condensing
- SuperDrive (G1) Compatible
Technical Data
| Power Supply | Three Phase 500-600 VAC (+10% / -15%) |
|---|---|
| Frequency | 50 / 60 Hz +/-2 Hz |
| Cos (Displacement Power Factor) | Greater than 0.98 |
| Enclosure | NEMA 4 |
| Control Modes | V/Hz (Scalar) Sensorless Voltage Vector (VVW) |
| Power Output | Sinusoidal PWM (Space Vector Modulation) IGBT Transistors |
| Switching Frequency | 2.5, 5, 10 or 15kHz |
| Frequency Range | 0-300Hz |
| Overload Capacity | 150% during 60 seconds, once every 10 minutes |
| Control Inputs | 4 programmable isolated digital inputes, NPN or 24VDC logic (PNP) 2 x programmable differential analog inputs, programmable for current or voltage Can be set as DI or as PTC input (0-10V, 4-20mA or 0-20mA) |
| Control Outputs | 2 programmable relay outputs, one NO (Form A) and one NC (Form B): 250V /0.5A 1x outputs with independent NO and NC at the same common 1x output, programmable for voltage (0-10v) or current (0-20mA or 4-20mA) and with 0.25% linearity error |
| Communication | Serial: Optional RS-232 Serial Interface, RS-485 with external RS-232/485 Converter Fieldbus: Modbus RTU with external RS-232/485 Converter |
| Protections | Motor Over-Current Motor Overload Output Phase-to-Phase short circuit Output Phase-to-ground short circuit Programming Error DC Link over voltage DC link under voltage Drive over temperature External Fault |
| Ambient Temperature | 32-104°F (40°C) up to 122°F (50°C) with 2% /1.8°F (1°C) output current derating |
| Humidity | 5-90% Non Condensing |
| Altitude | 0-3300ft (1000m) up to 13,200ft (4000m) with 10% /3300ft (1000m) output derating |
| Regulatory Conformance | EMC Directive 89 / 336 / EEC ENC61800-3 LVD 73/23/EEC UL508C |
| Special Functions | Linear and “S” ramp accel and decel local/remote control FWD/REV selection DC braking manual and auto torque boost motor slip compensation electronic pot two skip frequencies maximum and minimum adjustable frequency limits adjustable output current PID Controller |
| Keypad | 4 Digit display 2 indicator LEDs 8 keys |
| Keypad Readouts | output frequency (Hz) output current (A) output voltage (V) motor torque (%) in vector mode DC bus voltage (V) value proportional to frequency heatsink temperature fault status messages |
| Mounting | Surface Mounting with Screws |
Applications
- Pumps
- Fans
- Blowers
- Conveyors
- Rollout Tables
- Agitators
- Mixers
- Any Washdown Applications
About this Product
Main Characteristics
- Output current from 1.0 to 33 A (0.25 to 20 cv)
- Single or three-phase power supply
- Supply voltage from 500 to 600 V1)
- Vector (VVC) or scalar (V/F) control
- Accessories to expand functionalities
- Standard, Plus or Wash Versions (IP66/NEMA 4x)
- Multipump control
- Built-in operating and programming interface (HMI)
- Brake IGBT
- Internal (optional) or external (accessory) RFI filter
- Fault or alarm diagnosis
- Optional items for CANopen, DeviceNet, RS485 and RS232 industrial communication networks
- Remote operating interface - HMI (optional)
- Free SuperDrive programming software
Applications
- Multimotors and multipumps
- Centrifugal pumps
- Process dosing pumps
- Fans / exhausters
- Stirrers / mixers
- Extruders
- Conveyor belts
- Roller tables
- Granulators / pelletizers
- Dryers / rotary ovens
- Rotary filters
- Winding machines / uncoiling machines
- Cutting and welding machines
Special Functions and Resources
- Password to enable programming
- Fault self-diagnosis and auto-reset
- Indication of specific quantity (programmable) - (e.g.: m/min, rpm, among others)
- Slip compensation (V/F control)
- Adjustable quadratic and linear V/F curve
- Self-tuning routine (sensorless vector control)
- Dynamic braking
- Momentary speed impulse function (Jog)
- Copy of the setting via serial operating interface - HMI (copy function)
- Linear and “S” type ramps
- Independent acceleration and deceleration ramps
- DC braking (direct current)
- Multispeed function with up to 8 preset speeds
- Selection of the direction of rotation
- Overlapped PID control (automatic control of level, pressure, etc.)
- Start with the motor spinning (flying start)
- Rejection of critical or resonant frequencies (skip frequency)
- Operation during momentary network faults (ride-through)
- Communication protocols: Modbus-RTU, CANopen and DeviceNet
Multipump Control
The CFW08 version with multipump control board (A5 in the control board option in item 9 of the smart code) can control up to 4 pumps at the same time, keeping the output pressure constant, regardless of the flow demand. The CFW08 with multipump control board can also monitor the suction pressure and the source reservoir level, in addition to enabling the smart drive of the auxiliary pumps based on the running time.
Connectivity
Especially designed to integrate large industrial automation plants, the Fieldbus industrial communication networks provide advantages in the supervision, monitoring and control, generating high performance and great operating flexibility - ideal for applications on complex or integrated systems. The CFW08 can be interconnected to the industrial networks with worldwide used protocols: CANopen, DeviceNet, Modbus-RTU and Profibus-DP.
