Description

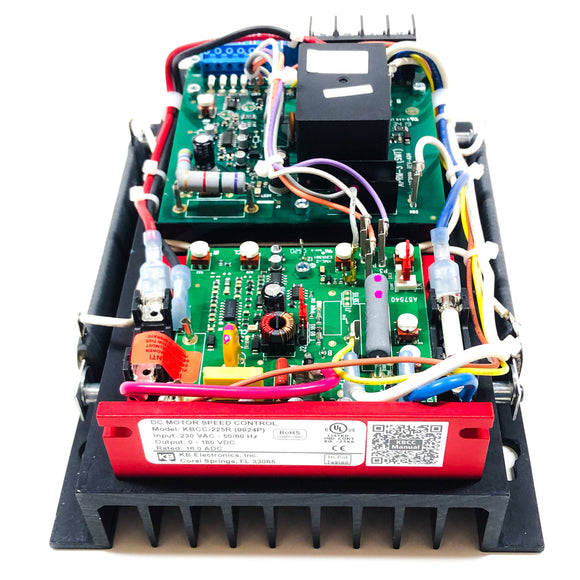

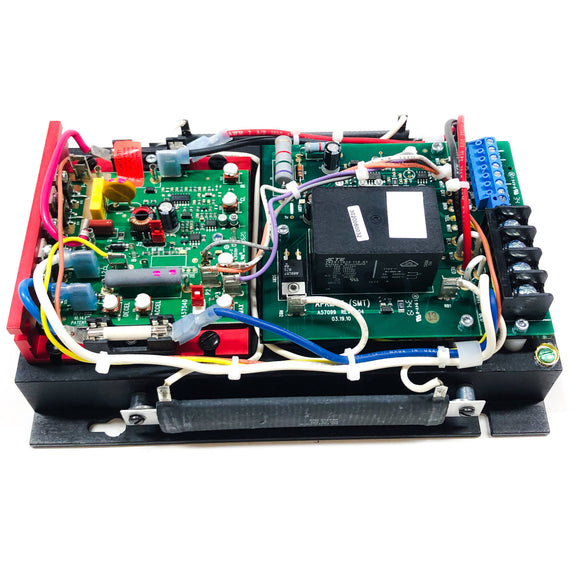

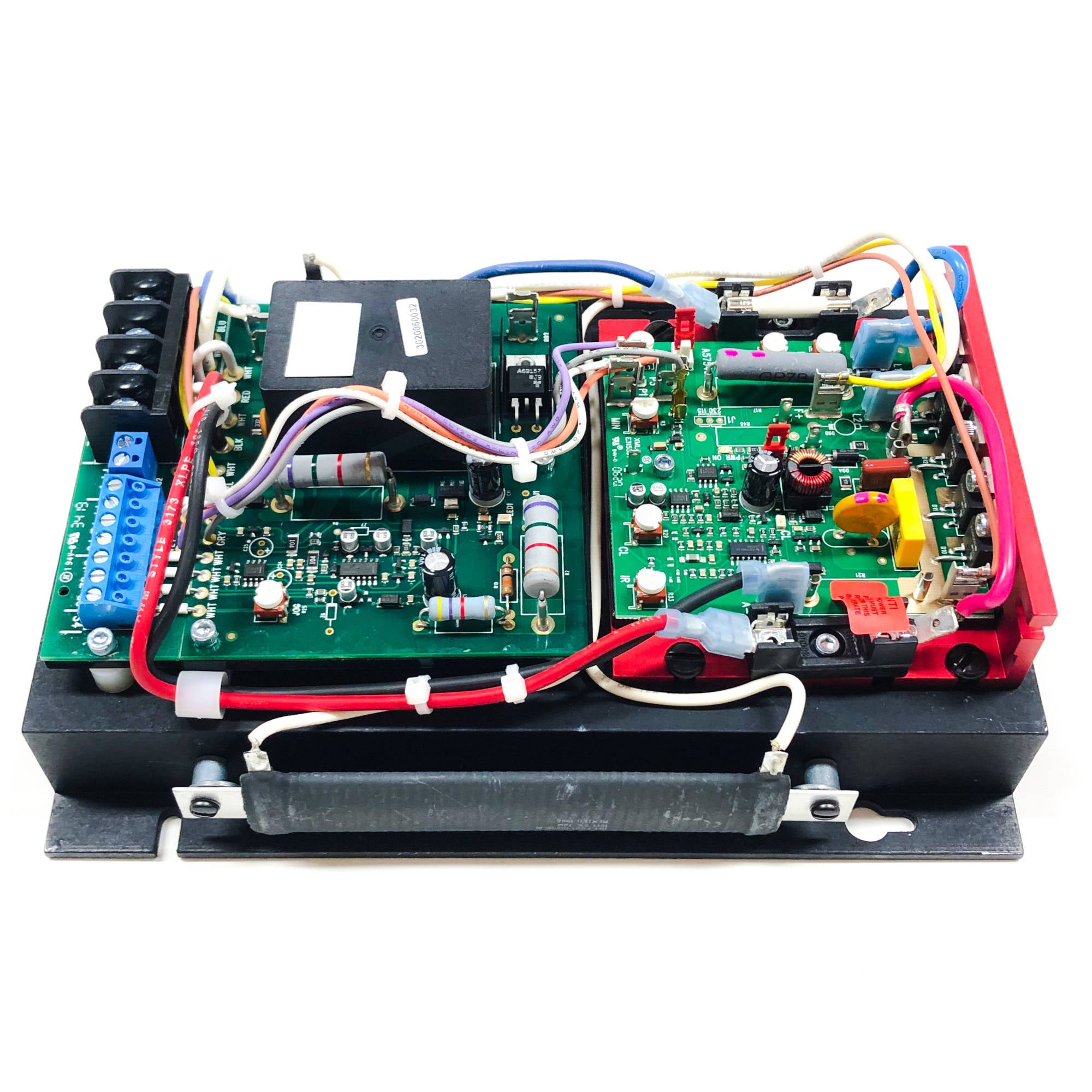

The KBCC chassis control utilizes the KBMM™ modular control to provide a low-cost, reliable, variable speed SCR drive for PM and Shunt Wound DC motors. Models with the “R” suffix contain the KB APRM® which provides anti-plug “instant” reverse and solid state dynamic braking. All models are equipped with KB’s exclusive Plug-in Horsepower Resistor®. It eliminates the need for recalibrating IR Comp and Current Limit when the control is used on various horsepower motors. The controls also contain Inhibit™ which allows for electronic switching of the armature voltage and Auto Inhibit® which provides rapid safe switching of the AC line.
The KBCC controls are built on a rugged aluminum heatsink and contain AC line and armature fusing, a 5K ohm remote potentiometer, and a barrier terminal block. In lieu of the potentiometer, the control can be operated in a voltage following mode by supplying an isolated analog signal (0-9VDC) to the input terminals P2 (+) and F-. Adjustment trimpots are provided for MIN, MAX, IR COMP, CL, ACCEL and DECEL.
Ratings
| Manufacturer | KB Electronics |
|---|---|
| Part Number | 9924 |
| Model Number | KBCC-225R |
| Type | Reversing |
| AC Line Input | 230 VAC +/-15% Single Phase 50/60Hz |
| Maximum Input Current | 24.0 Amps |
| Fuse/Circuit Breaker Rating | 25 Amps |
| Max Output Power | 3 HP 2.3 kW 16 Amps |
| Net Weight | 4.5 lbs |
| Warranty | 18 Month Limited Warranty |
Specifications
| Speed Range (Ratio) | 50:1 |
|---|---|
| Load Regulation (0-Full Load, 50:1 Speed Range) | 1% Base Speed |
| Line Voltage Regulation (at Full Load, +/-15% Line Variation) | 1/2% Base Speed |
| Control Linearity | 2% Speed vs Dial Rotation |
| CL Torque Range | 0 – 200% Full Load |
| Accell/Decel Time Range | 0.2 – 10 Seconds |
| MIN Speed Trimpot Range | 0 – 30% Full Speed |
| MAX Speed Trimpot Range | 50-120% Full Speed |
| Max Allowable Amb Temperature | 45°C 113°F |
| Max Number of Starts/Stops/Reversals | 30 Operations/Minute |
Standard Features
Tachometer or Armature Feedback
Plug-in Horsepower Resistor® (Sold Separately)
Built-in AC Line and Armatures Fuses (Armature Fuse Sold Separately)
MOV Transient Protection
Trimpots: MIN, MAX, IR, CL, ACCEL, DECEL
Rugged Aluminum Heatsink
Voltage Following
Auto Inhibit®, Inhibit™ and Enable
CL LED Indicator
Special Features
Forward-Brake-Reverse
Anti-plug Instant Reverse
Run-Brake-Jog
Auxiliary Trimpot for Speed Adjustment
Rapid Cycling
Applications
- Transfer Pumps
- Door Openers
- Feeders
- Indexers
- Tapping Machines
- Conveyors
- Robotics
- Screen Presses
- Exercise Equipment
Plug-In Horsepower Resistor Chart
| Motor HP (90-130VDC Armature) |
Motor HP (180VDC Armature) |
Resistance | Part No. |
|---|---|---|---|
| 1/100 to 1/50 HP | 1/50 to 1/25 HP | 1.0 Ohms | 9833 |
| 1/50 to 1/30 HP | 1/25 to 1/15 HP | 0.51 Ohms | 9834 |
| 1/30 to 1/20 HP | 1/15 to 1/10 HP | 0.35 Ohms | 9835 |
| 1/20 to 1/12 HP | 1/10 to 1/6 HP | 0.25 Ohms | 9836 |
| 1/12 to 1/8 HP | 1/6 to 1/4 HP | 0.18 Ohms | 9837 |
| 1/8 to 1/5 HP | 1/4 to 1/3 HP | 0.1 Ohms | 9838 |
| 1/4 HP | 1/2 HP | 0.05 Ohms | 9839 |
| 1/3 HP | 3/4 HP | 0.035 Ohms | 9840 |
| 1/2 HP | 1 HP | 0.025 Ohms | 9841 |
| 3/4 HP | 1.5 HP | 0.015 Ohms | 9842 |
| 1 HP | 2 HP | 0.01 Ohms | 9843 |
| 1.5 HP | 3 HP | 0.006 Ohms | 9850 |
