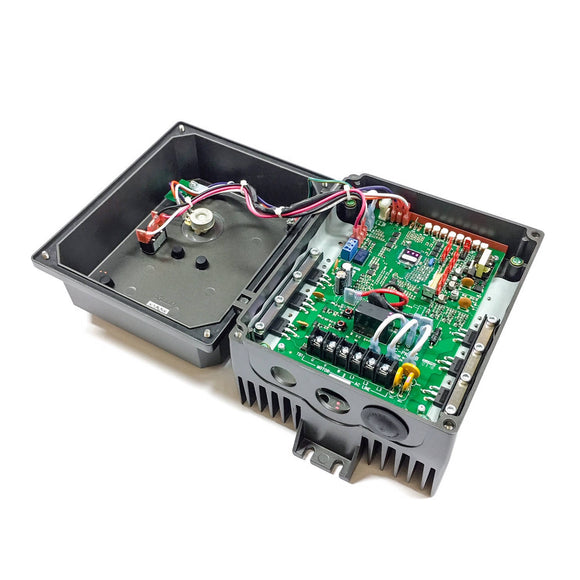

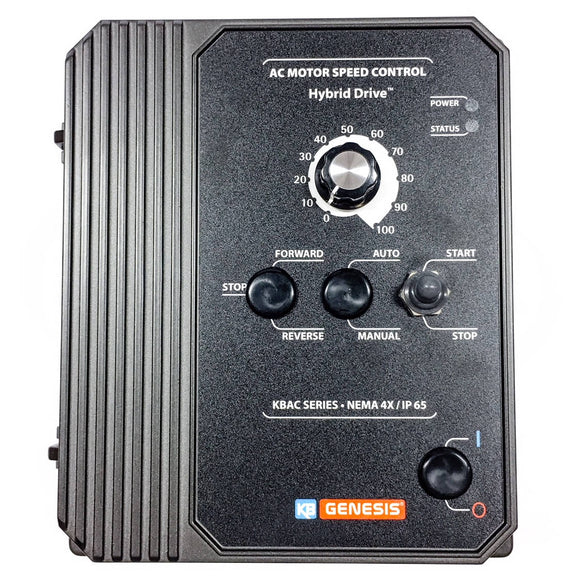

KB Electronics KBAC-29 Adjustable Frequency Drive, 9528

KBAC-29 Hybrid AC Drive, A Digital Drive with Analog Interface Rugged Die-Cast Aluminum NEMA-4X/IP-65 Enclosure with hinged cover. Primary Features: • Horsepower 1/2 to 3 HP, Jumper Selectable • 1Ø or 3Ø Input 208/230 VAC, 50/60 Hz • 3Ø Output 0-230 VAC, 0-50, 60, 100 or 120Hz • Rated 6.7 Amps/Phase @ 2 HP - 1Ø or 9.0 Amps/Phase @ 3 HP - 3Ø • Start/Stop Switch • 200% Starting Torque • Diagnostic LED Status Indicators Additional Features: • Sensorless Flux Vector Control • Electronic Inrush Current Limit (EICLTM) Protection • Run/Fault Relay Output Contacts • Holding Torque at Zero Speed in "Stop" mode • Undervoltage and Overvoltage Protection • Short Circuit Protection, phase to phase • Ride-Through momentary power loss • Regeneration eliminates tripping • Basic, Programmable, Trimpot Adjustments Dimensions approx. 9.8" X 7.6" X 7.3". Agency approvals: UL, CE, CSA, C-Tick.
