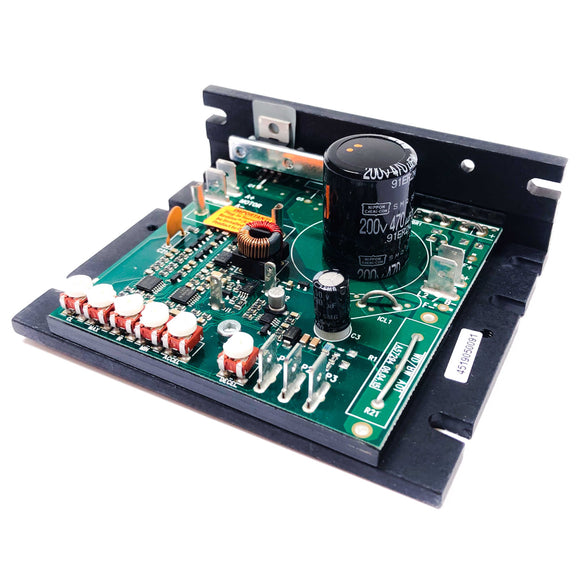

9140 KB Electronics Battery Powered DC/DC Motor Speed Control, 12VDC, 14 Amps

$119.00

Shipping calculated at checkout

KB Electronics, Inc SKU: KB9140 Barcode: 024822091404

30 Day
Return Policy

Ships Fast
in 24 hours

19

In stock!

Description

The KBBW Series of Pulse Width Modulated (PWM) DC/DC motor speed controls provide excellent dynamic response to load variations. The efficient PWM waveform produces an almost pure DC current to the motor (form factor <1.05), which provides low audible motor noise and long brush life. Pulse-by-pulse current limit provides short circuit protection and prevents control damage due to shorted motors. Excellent load regulation is achieved with armature feedback.

The Plug-In Horsepower Resistor® (supplied separately) eliminates the need for recalibrating the IR Compensation and Current Limit settings when the control is used on various horsepower motors. Quick-connect terminals are standard for all connections to the drive. Adjustable trimpots allow the drive to be tailored to specific applications. The Inhibit Circuit can be used to stop and start the drive electronically with a switch or contact.

The 5 k Ohm Potentiometer (supplied), a 0-5 Volt DC analog signal, or a PWM microprocessor output signal can be used to control motor speed. The optional Auxiliary Heat Sink Kit (Part No. 9142) increases the drive’s current rating from 14 Amps DC to 20 Amps DC.

Typical Applications

  • Carts
  • Feeders
  • Solar Pumps
  • Hoists
  • Pitching Machines
  • Boat Lifts
  • Polishers
  • Light Duty Conveyors
  • Portable Pumps
  • Electric Boats
  • Chemical Feeders
  • Metering Pumps
  • Salt Spreaders

Standard Features

Plug-In Horsepower Resistor®: Automatically calibrates the IR Compensation and Current Limit settings when used on various horsepower motors. Supplied separately by your distributor.

Short Circuit Protection: Prevents drive failure if a short circuit occurs at the motor.

Undervoltage Protection: Shuts down the drive if the input voltage goes below the lower limit of the operating range. The drive will resume operation when the input voltage returns.

Quick-Connect Terminals: Battery, Motor, and Inhibit.

Inhibit Circuit: Can be used to stop and start the drive electronically with a switch or contact.*

Signal Inputs: 5 k Ohm Potentiometer (supplied), 0-5 Volt DC analog signal, or PWM microprocessor output signal.

Trimpot Adjustments


  • Minimum Speed (MIN)
    •
  • Maximum Speed (MAX)
    •
  • Acceleration (ACCEL)
    •
  • Deceleration (DECEL)
    •
  • Current Limit (CL)
    •
  • IR Compensation (IR)

General Performance Specifications

Model KBBW-12 Input Voltage Range 10-15 VDC
Model KBBW-12 Output Voltage Range 0-12 VDC
Speed Range (Ratio) 50:1
Operating Frequency less than 16 kHz
Form Factor greater than 1.05 RMS/Average Amps
Input Regulation 0.5 % Base Speed
Load Regulation 1 % Base Speed
Minimum Speed Trimpot (MIN) Range 0-30 % Base Speed
Maximum Speed Trimpot (MAX) Range 60-100 % Base Speed
Acceleration Trimpot (ACCEL) Range 0.1-10 Seconds
Deceleration Trimpot (DECEL) Range 0.1-10 Seconds
Current Limit Trimpot (CL) Range 0-200 % Range Setting
IR Compensation Trimpot (IR) Range 0-3 % Rating
Analog Input Voltage (Voltage Following) 0-5 VDC
Main Speed Potentiometer 5k Ohm, ¼ Watt
Operating Temperature Range 0 to 40°C
32 to 104°F
Operating Humidity Range 0-95% Relative, Non-Condensing
Storage Temperature -25 to +85°C
-13 to +185°F

Electrical Ratings

Manufacturer KB Electronics
Model Number KBBW-12
Part Number 9140
Input Voltage 12 VDC
Maximum Continuous Load Current 14 Amps (without heatsink)
20 Amps (with optional heatsink)
Maximum Horsepower 1/6HP/0.12kW (without heatsink)
1/4HP/0.18kW (with optional heatink)
UPC 024822091404

Plug-In Horsepower Resistor Chart

Motor Current Resistance Part No. Motor HP (kW)
20 Amps 0.006 Ohms 9850 1/4 HP (0.18kW)
14 Amps 0.01 Ohms 9843 1/6 HP (0.12kW)
10 Amps 0.015 Ohms 9842 1/8 HP (0.09kW)
6 Amps 0.025 Ohms 9841 1/14 HP (0.05kW)
