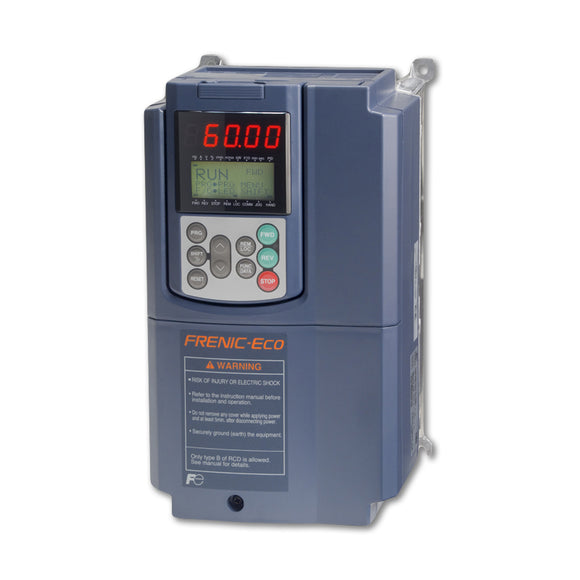

FRN002F1S-4U 2 HP Fuji FRENIC-Eco Inverter/VFD 460V

General Specifications Environmental Enclosure UL Open Type (IP20/IP00), Optional UL Type 1 Ambient Temperature "+14 to +122°F (-10 to +50°C) - UL Open Type +14 to +104°F (-10 to +40°C) - UL Type 1" Storage Temperature -13 to +149°F (-25 to +65° C) Humidity 5% to 95% With No Condensation Altitude 0 to 3,300 ft. (1,000 m) Without Derating, Derate Output Current for Higher Altitudes per User's Manual Codes and Standards UL508C, C22.2 No.14, EN61800-5-1:2007 Electrical Input Voltage: Range(Hz) - Phase "200-240VAC(50/60Hz) - 3Ph (<30Hp) 200-220VAC(50Hz), 200-230VAC(60Hz) - 3Ph (>40Hp) 380-480VAC(50/60Hz) - 3Ph (<40Hp[LD]) 380-440VAC(50Hz), 380-480VAC(60Hz) - 3Ph (>50Hp[LD])" Input Voltage: Tolerance, Unbalance 3-Ph Input = +10% to -15%, <2% Input Frequency: Nominal, Tolerance 50/60Hz, +/-5% Displacement Power Factor >0.98 (@ Rated Load) Output Voltage: Range-Phase 0 to Maximum Input Voltage-3Ph Maximum Output Frequency 120Hz Motor Control Method V/f Overload Capacity 120% Rated Current for 1 min. Analog Inputs "Qty 2: 0 to +10VDC Qty 1: 4 to 20mA" Digital Inputs Qty 7: Programmable Inputs Analog Outputs "Qty 1: Configurable for 0 to +10VDC or 4 to 20mA, User Selectable for Proportional Analog Signal Functionality Qty 1: 4 to 20mA, User Selectable for Proportional Analog Signal Functionality" Digital Outputs "Qty 1: Form C (1N.O. & 1N.C.) Dry Contacts Rated 0.3A @ 230VAC Max, User Selectable Functionality Qty 1: Form A (1N.O.) Dry Contact Rated 0.3A @ 230VAC Max, User Selectable Functionality Qty 3: Transistor Output Rated 50mA @ 27Vdc Max, User Selectable Functionality" Power Supply Qty 1: 24VDC, 50mA Max
