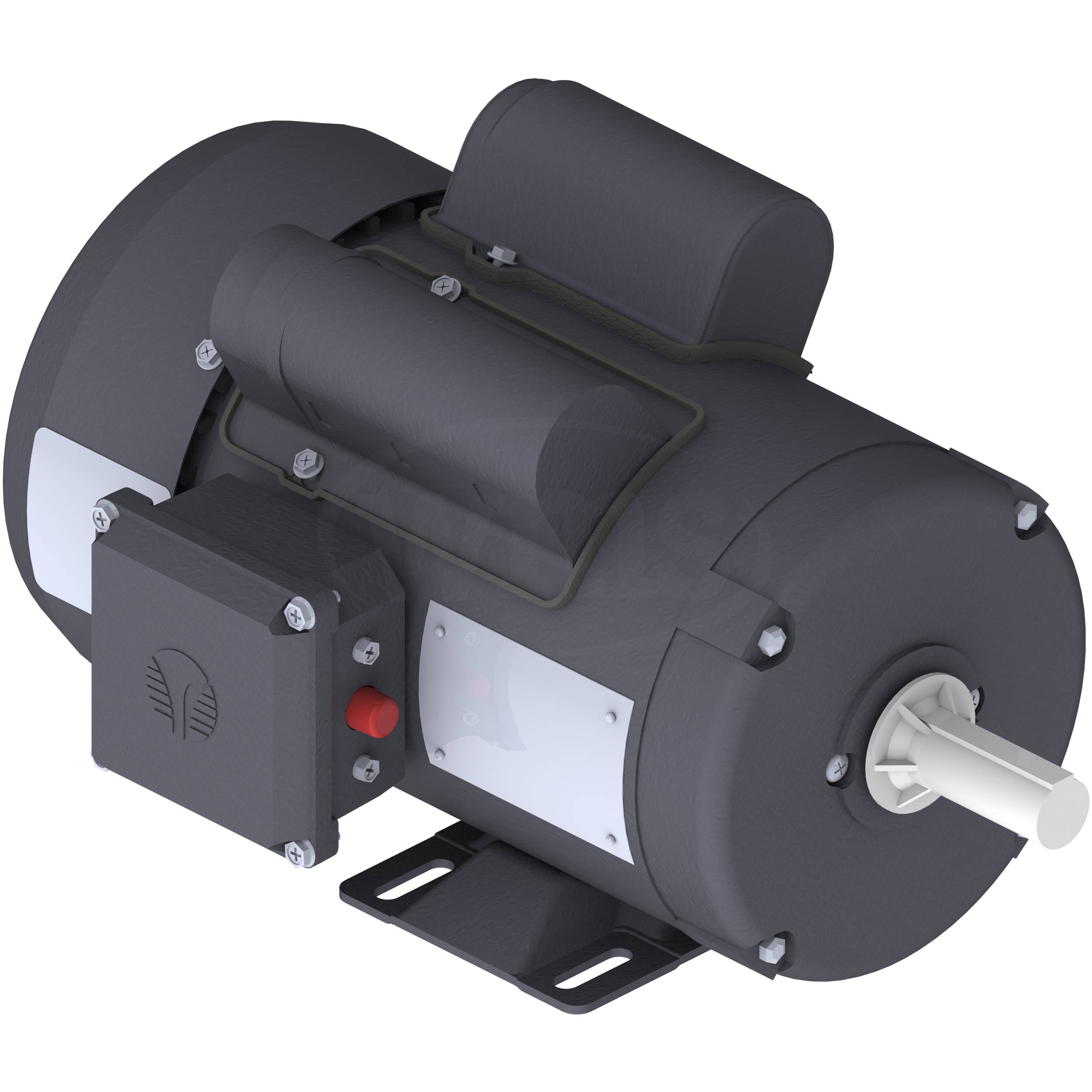

RD1-RS-TF-56-4-B-C-.5 Techtop 1/2HP Farm Duty Electric Motor, 1725RPM-1

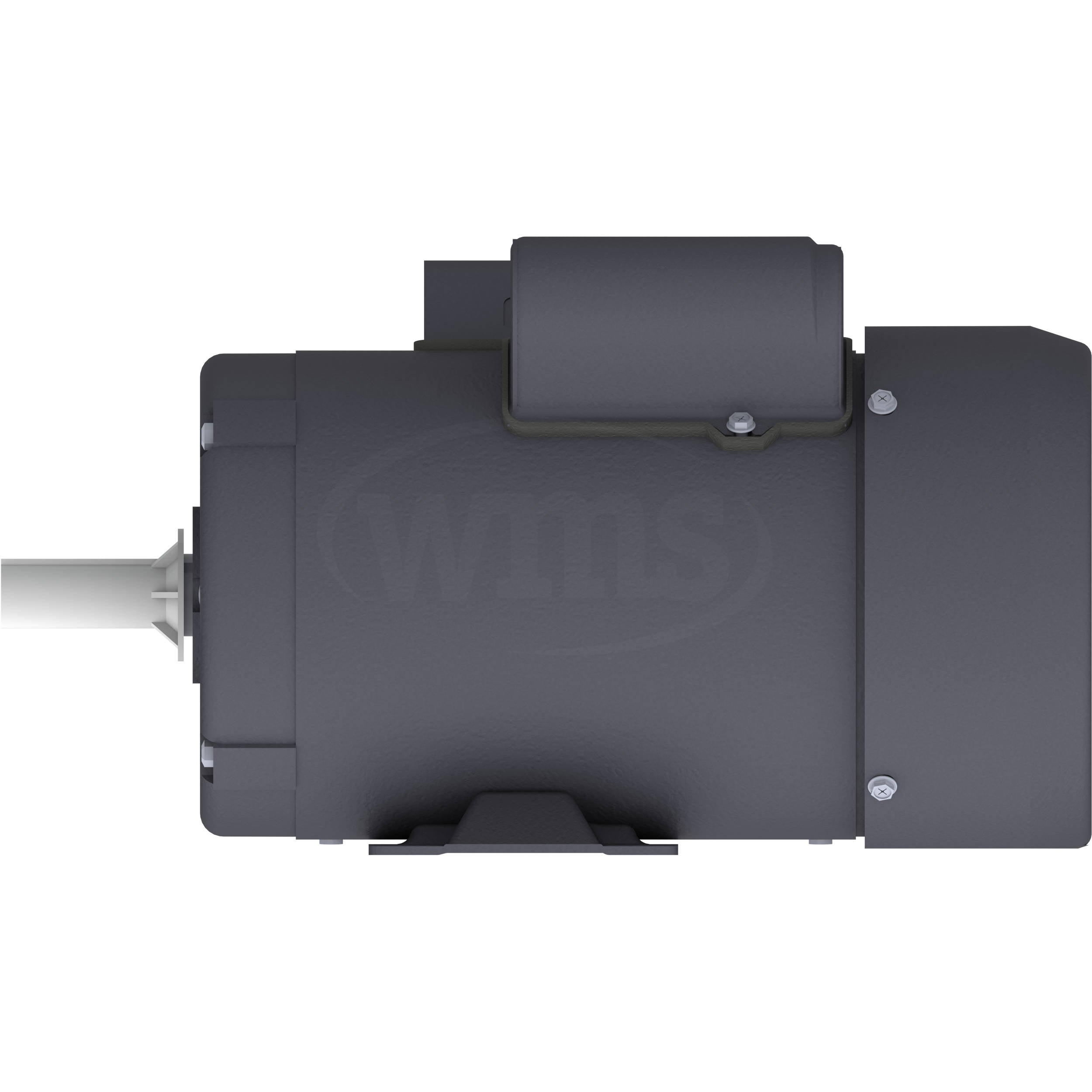

RD1-RS-TF-56-4-B-C-.5 Techtop 1/2HP Farm Duty Electric Motor, 1725RPM-2

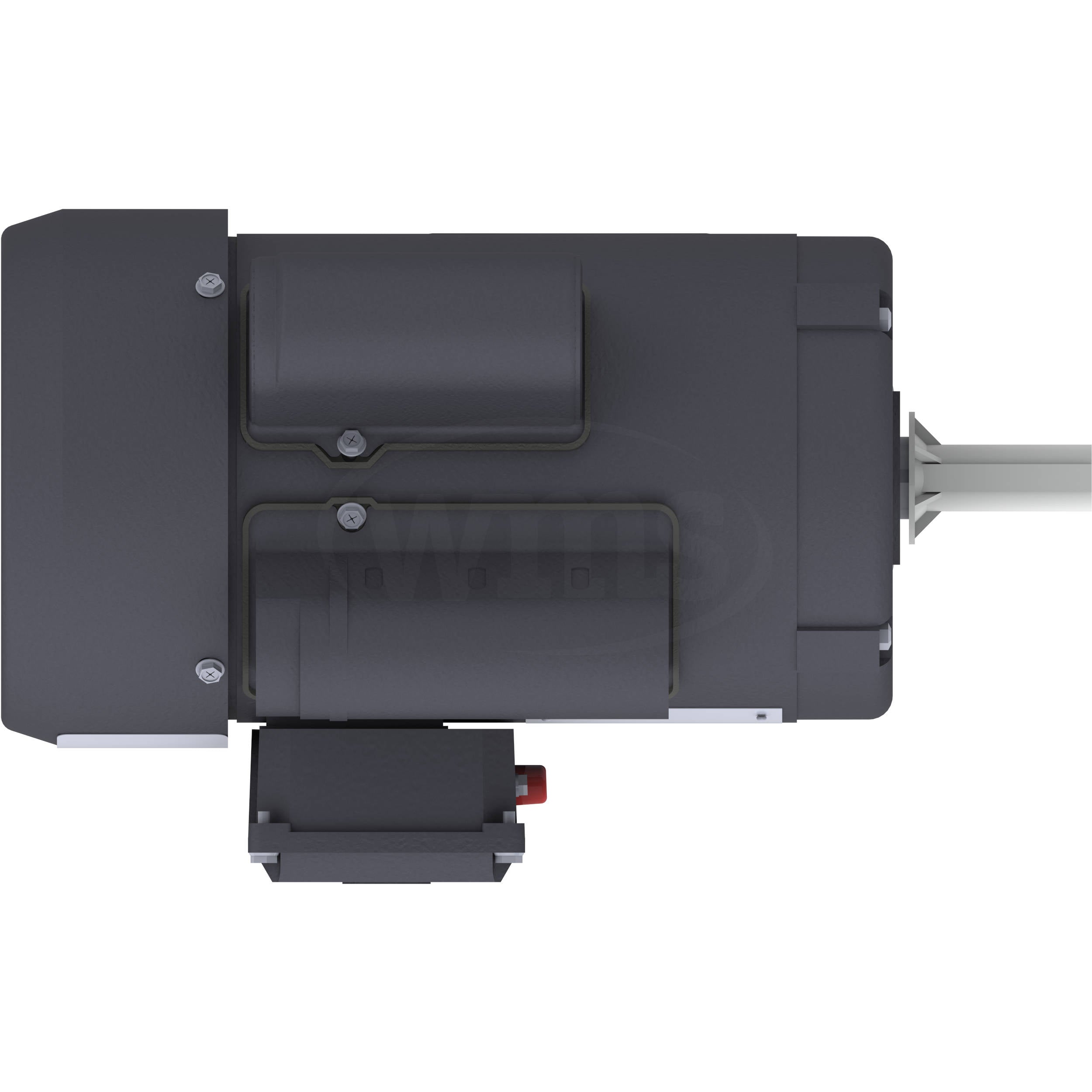

RD1-RS-TF-56-4-B-C-.5 Techtop 1/2HP Farm Duty Electric Motor, 1725RPM-3
RD1-RS-TF-56-4-B-C-.5 Techtop 1/2HP Farm Duty Electric Motor, 1725RPM-4
RD1-RS-TF-56-4-B-C-.5 Techtop 1/2HP Farm Duty Electric Motor, 1725RPM-5

RD1-RS-TF-56-4-B-C-.5 Techtop 1/2HP Farm Duty Electric Motor, 1725RPM

$315.00

Shipping calculated at checkout

TechTop Industries, Inc. SKU: RD1RSTF564BC.5

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Standard Features:

  • Manual Reset Protector
  • High Efficiency Dual Cap Design
  • High Quality Molded Gaskets
  • Over 300% Starting Torque
  • Cast Iron End Bells
  • Dual Oversized Ball Bearings
  • Dependable Mechanical Starting Switch
  • 18 Month Warranty

Electrical Data:

Manufacturer Techtop
Part Number RD1RSTF564BC.5
RD1-RS-TF-56-4-B-C-.5
Horsepower 1/2 HP
Speed 1725 RPM
Voltage 115/208-230V
Phase Single (1)
Full Load Amps 5.2/2.9-2.6 A
Power Factor 0.90
Nominal Efficiency 70.0 %
Service Factor 1.15
KVA Code K
LRC @ 60Hz HV 17.4724
Start Capacitor SCAP125V-250UF
Run Capacitor RCAP250V-40UF
Number of Leads 7

General Data:

Frame Size 56
Frame Enclosure TEFC
Mounting Rigid
Insulation Class F
Duty Continuous / S1
NEMA Design L
Frame Material Rolled Steel
Ingress Protection IP54
Cable Entry 0.88”
Double Drilled True
Paint Color Graphite Gray
Paint RAL 7024
Weight 27.0 lbs

Torque Values:

Locked Rotor 5.56092 lb-ft
366.0 % FLT
Pull-Up 4.29984 lb-ft
283.0 % FLT
Breakdown 4.8924 lb-ft
322.0 % FLT
Full Load 1.51938 lb-ft
100.0 % FLT
