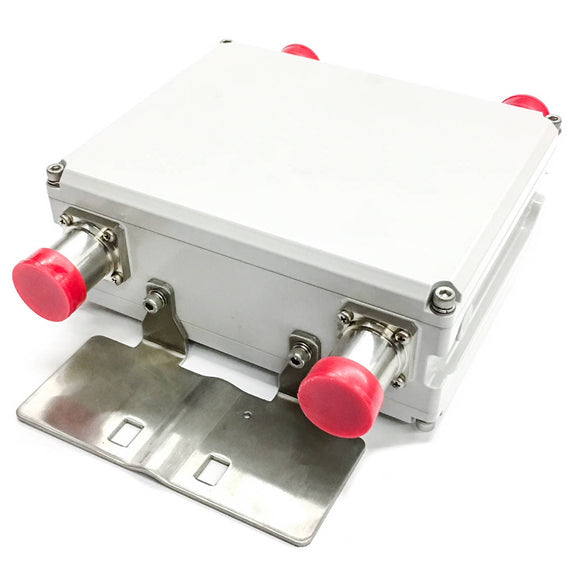

E15S08P80 Andrew Tower Mounted Amplifier-1

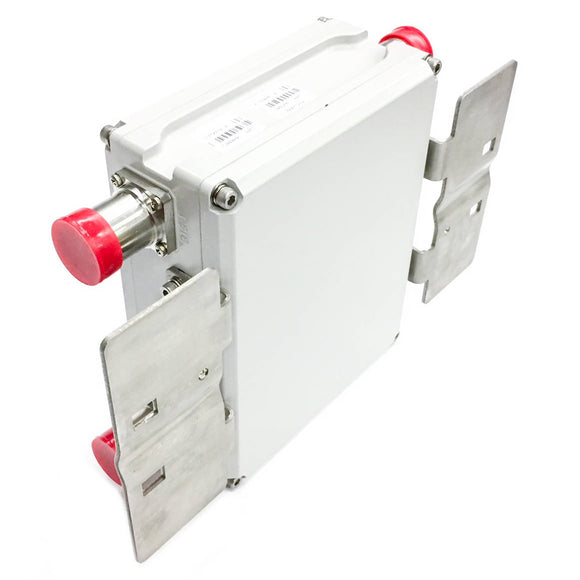

E15S08P80 Andrew Tower Mounted Amplifier-2

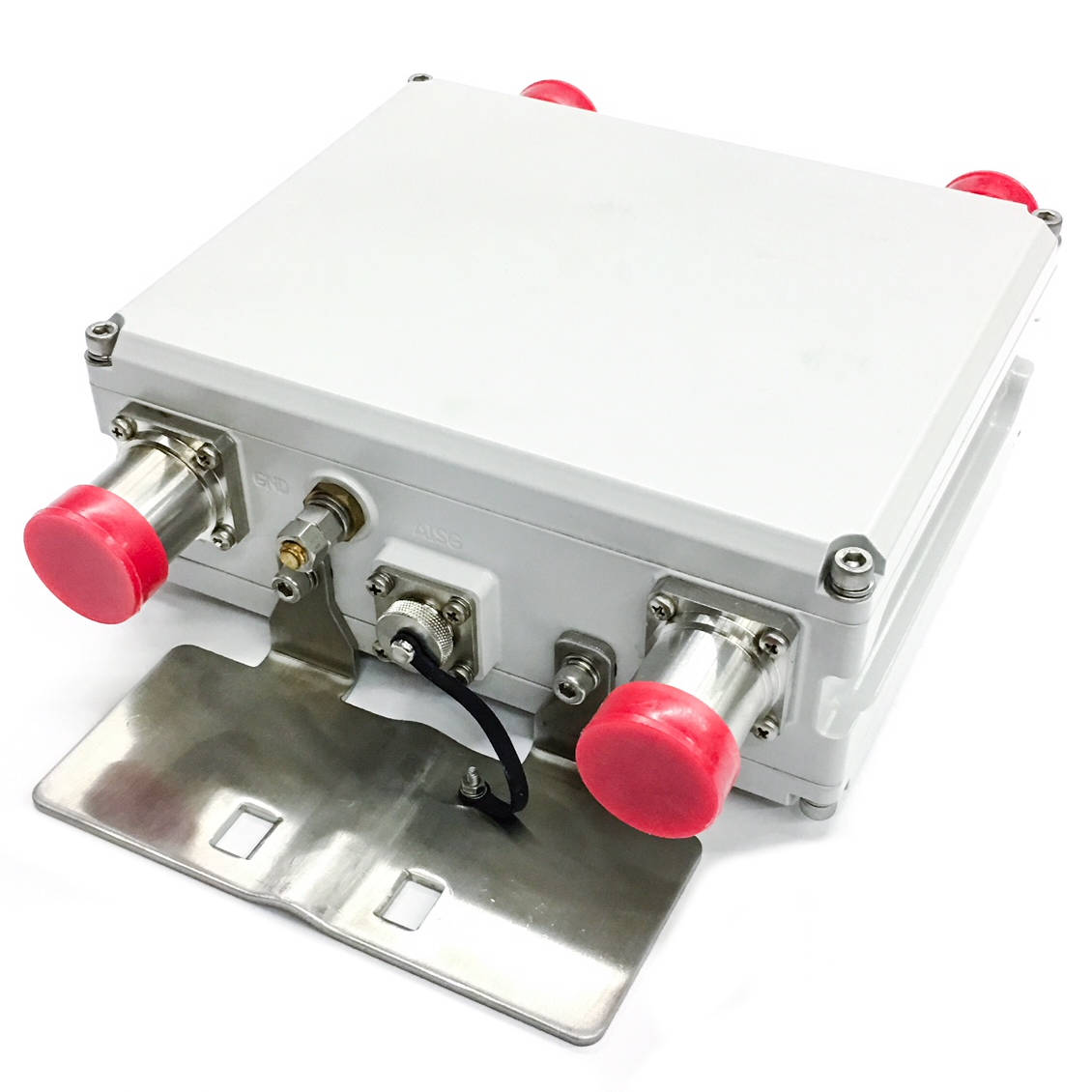

E15S08P80 Andrew Tower Mounted Amplifier-3

E15S08P80 Andrew Tower Mounted Amplifier

$399.97

Shipping calculated at checkout

Witmer Motor Service SKU: E15S08P80

30 Day
Return Policy

Ships Fast
in 24 hours

3

In stock!

General Specifications
Product Type   1-BTS:1-ANT (Uniplex)
Modularity   2-Twin
Includes   Mounting hardware
Electrical Specifications
Sub-module 1 | 2
Branch 1
Port Designation ANT
AISG 2.0 Device Subunit E15S08P80 1/2
License Band AWS 1700, LNA
Electrical Specifications Rx (Uplink)
Frequency Range 1710–1755 MHz
Bandwidth 45.00 MHz
Gain, nominal 12.0 dB
Gain Tolerance ±1
Noise Figure, maximum 1.3 dB
Noise Figure, typical 1.1 dB
Total Group Delay, maximum 40 ns
Output IP3, minimum 22 dBm
Return Loss, typical 20 dB
Insertion Loss - Bypass Mode, typical 1.5 dB
Return Loss - Bypass Mode, typical 18 dB
Electrical Specifications Tx (Downlink)
Frequency Range 2110–2155 MHz
Bandwidth 45.00 MHz
Insertion Loss, maximum 0.30 dB
Total Group Delay, maximum 10 ns
Return Loss, typical 20 dB
Input Power, RMS, maximum 200 W
Higher Order PIM, typical -153 dBc
Higher Order PIM Test Method 1 x 20 W AWS CW tone
1 x 20 W PCS CW tone
VSWR Alarm Threshold 9.54 dB
VSWR Alarm Threshold Tolerance ±2 dB
Product Classification
Product Type   Tower mounted amplifier

AISG Electrical Specifications
Voltage, AISG Mode   10–30 Vdc
Protocol   AISG 2.0
AISG Connector   8-pin DIN Female
AISG Connector Standard   IEC 60130-9

dc Power/Alarm Electrical Specifications
Voltage   7–30 Vdc
Voltage, CWA Mode   10–18 Vdc
dc Switching/Redundancy   Yes
Operating Current at Voltage   100 mA @ 12 V
Operating Current Tolerance   ±20 mA
Alarm Current, CWA Mode   190 mA ±10 mA
Lightning Surge Current   20 kA
Lightning Surge Current Waveform   8/20 waveform

Block Diagram

Mechanical Specifications
RF Connector Interface   7-16 DIN Female
RF Connector Interface Body Style   Long neck
Ground Screw Diameter   6.00 mm
Color   Gray
Finish   Painted
Mount Type   Pole   |   Wall
Mounting Pipe Diameter   40–160 mm
Mounting Pipe Hardware   Band clamps (2)
Wind Speed, maximum   200 km/h   |   124 mph

Dimensions
Height   160.0 mm   |   6.3 in
Width   196.0 mm   |   7.7 in
Depth   78.0 mm   |   3.1 in
Weight   3.0 kg   |   6.6 lb

Environmental Specifications
Operating Temperature   -40 °C to +65 °C (-40 °F to +149 °F)
Relative Humidity   Up to 100%
Ingress Protection Test Method   IEC 60529:2001, IP67

Outline Drawing

Regulatory Compliance/Certifications
Agency Classification
ISO 9001:2008 Designed, manufactured and/or distributed under this quality management system
