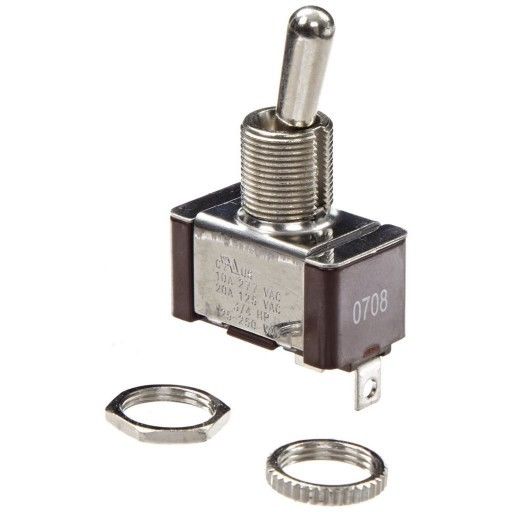

XTD2D2AGP Eaton Toggle Switch, 20A@125VAC, 21EW29

$5.47

Shipping calculated at checkout

Eaton SKU: XTD2D2AGP Barcode: 786685885681

30 Day
Return Policy

Ships Fast
in 24 hours

Sold Out
X Series Toggle

XTD2D2AGP

UPC:786685885681

Dimensions:

  • Height: 2.34 IN
  • Length: 1.14 IN
  • Width: .64 IN

Warranties:

  •  Eaton Selling Policy 25-000, two (2) years from the date of shipment, excluding incandescent bulbs. LEDs and X Series products are warrantied for one (1) year from the date of shipment.

Specifications:

  • Type: Switch
  • Amperage Rating: 20A/10A
  • Circuit Position Center: NONE
  • Circuit Position Down: ON
  • Functions: 1PDT
  • Number Of Poles: Single-pole
  • Terminals: Screw
  • Voltage Rating: 125 Vac/277 Vac

Technical Specs

  • Item Toggle Switch
  • Contact Form SPDT
  • Number of Connections 3
  • Switch Function On/Momentary On
  • AC Contact Rating 20A @ 125VAC, 10A @ 277VAC
  • HP 3/4
  • Terminals Screw
  • Mounting Hole 0.50" dia.
  • DC Contact Rating 15A @ 28VDC
  • Actuator Length 0.68"
  • Stem Length 0.500"
  • Stem Dia. and Thread Size 0.500"
  • Actuator Color Silver
  • Stem Color Silver
  • Standards UL Recognized, RoHS
  • Includes Panel Mounting
